Sciences in Cold and Arid Regions ›› 2022, Vol. 14 ›› Issue (2): 91-99.doi: 10.3724/SP.J.1226.2022.2020-210077.

Previous Articles     Next Articles

Influence of meteorological elements on chemical evolution of snow and ice of Urumqi Glacier No. 1, eastern Tianshan Mountains

XiaoNi You1(),ZhongQin Li2,LiXia Wang1

  1. 1.Tianshui Normal University, Tianshui, Gansu 741001, China
    2.State Key Laboratory of Cryospheric Sciences, Northwest Institute of Eco-Environment and Resources, Chinese Academy of Science, Lanzhou, Gansu 730000, China
  • Received:2020-08-06 Accepted:2021-02-08 Online:2022-04-30 Published:2022-04-25
  • Contact: XiaoNi You E-mail:yxiaoni@tsnu.edu.cn
  • Supported by:
    the National Natural Science Foundation of China(41761017);the Natural Science Foundation of Gansu Province(18JR3RE247)

RichHTML

53

PDF (PC)

222

Abstract:

For most mountain glaciers, chemical components in snowfall are subject to the elution process under the influences of meltwater before they are preserved in ice, creating difficulties for interpreting ice core records. To understand the formation process of ice core records and analyze the influences of meteorological factors on the ice core resolution, we measured ion concentrations of snowpacks from 2003 to 2006 in the PGPI (Program for Glacier Processes Investigation) site of Urumqi Glacier No. 1. The ion concentration variation in snowpack exhibits apparent seasonality. In summer, the higher snowmelt rates due to air temperature rise intensify dilution and lead to an exponential decrease in ion concentrations as the accumulated positive temperature increases. In winter, the snow ion concentrations are stable and low as a result of reduced temperature and rare precipitation. Many ions from summer precipitation are leached out by meltwater, and only the precipitation that occurs at the end of the wet season can be preserved. Through tracking the evolution of magnesium ion peaks in the snowpack, it is concluded that the ice core resolution is one year on Urumqi Glacier No. 1, albeit 70% of the concentration information is lost.

Key words: elution process, Urumqi Glacier No. 1, temperature, precipitation, ice core resolution

Figure 1

Variations in the monthly mean concentrations of all and each chemical species in the snowpack and monthly mean air temperature from February 2003 to August 2006"

Figure 2

Comparison of the total ion concentration in the snowpack, accumulative temperature, positive accumulative temperature, and snow depth. The shaded zones indicate the intense elution period that ion concentrations decrease from the maxima to the minima"

Figure 3

The ratio of ion concentrations in the surface snow to that in the snowpack with corresponding precipitation. Ion concentrations in the wet season (from April to September) are shown in the box, with the orange triangles and the fitting curve indicating the total ion concentrations in the snowpack"

Table 1

Variation in average total ion concentration and precipitation in different periods"

StageAverage total ion concentration in snowpack (μg/L)Start dateEnd datePrecipitation (mm)
T12,759.1beginning of Marchmiddle of June108.7
T21,305.5middle of Junebeginning of Sepetember520.5
T31,990.6beginning of Septemberbeginning of December99.1
T41,768.1beginning of Decemberbeginning of March15.7

Figure 4

The evolutional process of Mg2+ ion peaks (P1 and P3), along with air temperature and precipitation. The blue circles and red circles stand for P1 and P3, respectively. Their diameter is proportional to the concentration. The three concentration profiles indicate the locations of Mg2+ concentration peaks in the snowpack on December 12, 2003, April 3, 2004 and August 10, 2006"

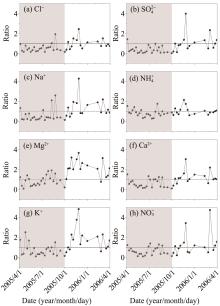

Figure 5

Variations in the snow-ice ratio of ion concentration at the snow-ice interface with time. The shaded and unshaded parts indicate the wet and dry seasons, respectively"

Anja E, Margit S, Heinz WG, 2001. Meltwater-induced relocation of chemical species in Alpine firn. Tellus, 53B: 192-203. DOI: 10.1034/j.1600-0889.2001.d01-15.x .
doi: 10.1034/j.1600-0889.2001.d01-15.x
Bales RC, Davis RE, Stanley DA, 1989. Ion elution through shallow homogeneous snow. Water Resources Research, 25(8): 1869-1877. DOI: 10.1029/WR025i008p01869 .
doi: 10.1029/WR025i008p01869
Cong ZCZ, Kang SKS, Zhang YZY, et al., 2015. New insights into trace element wet deposition in the Himalayas: amounts, seasonal patterns, and implications. Environmental Science and Pollution Research, 22(4): 2735-2744. DOI: 10.1007/s11356-014-3496-1 .
doi: 10.1007/s11356-014-3496-1
Costa D, Pomeroy JW, 2019. Preferential meltwater flowpaths as a driver of preferential elution of chemicals from melting snowpacks. Science of the Total Environment, 662: 110-120. DOI: 10.1016/j.scitotenv.2019.01.091 .
doi: 10.1016/j.scitotenv.2019.01.091
Costa D, Sexstoned GA, Pomeroy JW, et al., 2020. Preferential elution of ionic solutes in melting snowpacks: Improving process understanding through field observations and modeling in the Rocky Mountains. Science of the Total Environment, 710(2020): 136273. DOI: 10.1016/j.scitotenv.2019. 136273 .
doi: 10.1016/j.scitotenv.2019. 136273
Eichler A, Schwikowski M, Gaggeler WH, 2010. Meltwater-induced relocation of chemical species in alpine firn. Tellus, 53B: 192-203. DOI: 10.1034/j.1600-0889.2001.d01-15.x .
doi: 10.1034/j.1600-0889.2001.d01-15.x
Franz KJ, Hogue TS, Sorooshian S, 2008. Operational snow modeling: addressing the challenges of an energy balance model for national weather service forecasts. Journal of Hydrology, 360(1-4): 48-66. DOI: 10.1016/j.jhydrol.2008.07.013 .
doi: 10.1016/j.jhydrol.2008.07.013
Georg J, Moore RD, Russell S, et al., 2012. Distributed temperature-index snowmelt modelling for forested catchments. Journal of Hydrology, 420: 87-101. DOI: 10.1016/j.jhydrol.2011.11.045 .
doi: 10.1016/j.jhydrol.2011.11.045
Graeter KA, Osterberg EC, Ferris DG, et al., 2018. Ice Core Records of West Greenland Melt and Climate Forcing. Geophysical Research Letters, 45(7): 3164-3172. DOI: 10.1002/2017GL076641 .
doi: 10.1002/2017GL076641
Hou SG, Qin DH, 2002. The effect of postdepositional process on the chemical profiles of snow pits in the percolation zone. Cold Regions Science and Technology, 34(2): 111-116. DOI: 10.1016/S0165-232X(01)00065-9 .
doi: 10.1016/S0165-232X(01)00065-9
Isaksson E, Pohjola V, Jauhiainen T, 2001. A new ice-core record from Lomonosovfonna, Svalbard: Viewing the 1920-97 data in relation to present climate and environmental conditions. Journal of Glaciology, 47(157): 335-345. DOI: 10.3189/172756501781832313 .
doi: 10.3189/172756501781832313
Jeonghoon L, Feng XH, Eric SP, et al., 2008. Modeling of solute transport in snow using conservative tracers and artificial rain-on-snow experiments. Water Resources Research, 44(2): 1-12. DOI: 10.1029/2006WR00547 .
doi: 10.1029/2006WR00547
Iizuka Y, Igarashi M, Kamiyama K, et al., 2002. Ratios of Mg2+/Na+ in snowpack and an ice core at Austfonna ice cap, Svalbard, as an indicator of seasonal melting. Journal of Glaciology, 48(162): 452-460. DOI: info:doi/10.3189/172756502781831304 .
doi: info:doi/10.3189/172756502781831304
Kaufmann P, Fundel F, Fischer H, et al., 2010. Ammonium and non-sea salt sulfate in the EPICA ice cores as indicator of biological activity in the Southern Ocean. Quaternary Science Reviews, 29(2010): 313-323. DOI: 10.1016/j.quascirev.2009.11.009 .
doi: 10.1016/j.quascirev.2009.11.009
Khodzher TV, Golobokova LP, Maslenikova MM, et al., 2020. Chemistry of snow and ice cores along the ice flow lines at Lake Vostok (Antarctica). Geochemistry, 80(3): 125595. DOI: 10.1016/j.chemer.2019 .
doi: 10.1016/j.chemer.2019
Koerner RM, 1997. Some comments on climatic reconstructions from ice cores drilled in Areas of high melt. Journal of Glaciology, 43(143): 90-97. DOI: 10.1017/S0022143000002847 .
doi: 10.1017/S0022143000002847
Kotlyakov VM, Arkhipov SM, Henderson KA, 2004. Deep drilling of glaciers in Eurasian Arctic as a source of paleoclimate records. Quaternary Environments of the Eurasian North, 23(11-13): 1371-1390. DOI: 10.1016/j.quascirev. 2003.12.01 .
doi: 10.1016/j.quascirev. 2003.12.01
Laluraj CM, Thamban M, Naik SS, et al., 2011.Nitrate records of a shallow ice core from East Antarctica: atmospheric processes preservation and climatic implications. The Holocene, 21(2): 351-356. DOI: 10.1177/0959683610374886 .
doi: 10.1177/0959683610374886
Li ZQ, Edwards R, Mosley-Thompson E, et al., 2006. Seasonal variability of ionic concentrations in surface snow and elution processes in snow-firn packs at the PGPI site on Urumqi glacier No. 1, eastern Tien Shan, China. Annals of Glaciology, 43(1): 250-256. DOI: 10.3189/172756406781812069 .
doi: 10.3189/172756406781812069
Lilbæk G, Pomeroy JW, 2010. Ion enrichment of snowmelt runoff water caused by basal ice formation. Hydrological Processes, 22(15): 2758-2766. DOI: 10.1002/hyp.7028 .
doi: 10.1002/hyp.7028
Marsh P, Pomeroy JW, 1999. Spatial and temporal variations in snowmelt runoff chemistry, Northwest Territories, Canada. Water Resource Research, 35: 1559-1567. DOI: 10.1029/1998WR900109 .
doi: 10.1029/1998WR900109
Sharma A, Kulshrestha UC, 2020. Wet Deposition and Long-range Transport of Major Ions Related to Snow at Northwestern Himalayas (India). Aerosol and Air Quality Research, 20(6):1249-1265. DOI: 10.4209/aaqr.2019.06.0279 .
doi: 10.4209/aaqr.2019.06.0279
Sun SW, Kang SC, Guo JM, et al., 2018. Insights into mercury in glacier snow and its incorporation into meltwater runoff based on observations in the southern Tibetan Plateau. Journal of Environmental Sciences, 68: 130-142. DOI: 10. 1016/j.jes.2018.03.033 .
doi: 10. 1016/j.jes.2018.03.033
Thompson LG, Mosley-Thompson E, Henderson KA, 2015. Ice-core palaeoclimate records in tropical South America since the Last Glacial Maximum. Journal of Quaternary Science: Published for the Quaternary Research Association, 15(15): 377-394. DOI: 10.1002/1099-1417(200005)15:4<377::AID-JQS542>3.0.CO;2-L .
doi: 10.1002/1099-1417(200005)15:4<377::AID-JQS542>3.0.CO;2-L
Torsten M, Frank W, 2011. Modeling the elution of organic chemicals from a melting homogeneous snow pack. Water Research, 45(12): 3627-3637.DOI: 10.1016/j.watres.2011. 04.011 .
doi: 10.1016/j.watres.2011. 04.011
Tripathee L, Kang S, Huang J, et al., 2013. Ionic composition of wet precipitation over the southern slope of central Himalayas, Nepal. Environmental Science and Pollution Research, 21(4): 2677-2687. DOI: 10.1007/s11356-013-2197-5 .
doi: 10.1007/s11356-013-2197-5
Tripathee L, Guo J, Kang S, et al., 2019. Measurement of mercury, other trace elements and major ions in wet deposition at Jomsom: The semi-arid mountain valley of the Central Himalaya. Atmospheric Research, 234: 104691. DOI: 10. 1016/j.atmosres.2019.104691 .
doi: 10. 1016/j.atmosres.2019.104691
Van de wal RSW, Mulvaney R, Isaksson E, 2002. Reconstruction of the historical temperature trend from measurements in a medium length borehole on the Lomonosovfonna Plateau, Svalbard. Annals of Glaciology, 35: 371-378. DOI: 10.3189/172756402781816979 .
doi: 10.3189/172756402781816979
Wang FT, Li ZQ, You XN, 2006. Seasonal evolution of aerosol stratigraphy in Urumqi glacier No. 1 percolation zone, eastern Tien Shan, China. Annals of Glaciology, 43: 245-249. DOI: 10.3189/172756406781812041 .
doi: 10.3189/172756406781812041
Williams MW, Tonnessen KA, Melack JM, et al., 1991. Sources and spatial variation of the chemical composition of snow in the Tien Shan, China. Annals of Glaciology, 16: 25-32. DOI: 10.1017/S0260305500004778 .
doi: 10.1017/S0260305500004778
Wolff EW, Hall JS, Mulvaney R, et al., 1998. Relationship between chemistry of air, fresh snow and firn cores for aerosol species in coastal Antarctica. Journal Geophysical Research, 1031(D9): 11057-11070. DOI: 10.1029/97JD02613 .
doi: 10.1029/97JD02613
Woods RA, 2009. Analytical model of seasonal climate impacts on snow hydrology: continuous snowpacks. Advances in Water Resources, 32(10): 1465-1481. DOI: 10.1016/j.advwatres.2009.06.011 .
doi: 10.1016/j.advwatres.2009.06.011
You XN, Dong ZW, 2011. Deposition process of dust microparticles from aerosol to snow-firn pack on Glacier No. 1 in eastern Tianshan Mountains, China. Journal of Earth Science, 22(4): 460-469. DOI: 10.1007/s12583-011-0200-y .
doi: 10.1007/s12583-011-0200-y
You XN, Li ZQ, Wang LX, 2015. The transport of chemical components in homogeneous snowpacks on Urumqi Glacier No.1, eastern Tianshan Mountains, Central Asia. Journal of Arid Land, 7(5): 612-622. DOI: 10.1007/s40333-015-0131-z .
doi: 10.1007/s40333-015-0131-z
Yukiyoshi I, Manabu N, Shuichi H, 2011. Influence of rain, air temperature, and snow cover on subsequent spring-snowmelt infiltration into thin frozen soil layer in Northern Japan. Journal of Hydrology, 401(3-4): 165-176. DOI: 10.1016/j.jhydrol.2011.02.019 .
doi: 10.1016/j.jhydrol.2011.02.019
Zhang NN, He YQ, Pang HX, 2010. Preliminary study of transformation of snow to ice and ion elution during ablation period at a typical temperate glacier region. Journal of Glaciology and Geocryology, 32(3): 505-513. DOI: http://ir.casnw.net/handle/362004/8183. (in Chinese)
doi: http://ir.casnw.net/handle/362004/8183.
