Sciences in Cold and Arid Regions ›› 2019, Vol. 11 ›› Issue (1): 13-0020.doi: 10.3724/SP.J.1226.2019.00013

Previous Articles     Next Articles

The changing process and trend of ground temperature around tower foundations of Qinghai-Tibet Power Transmission line

YanLi Xie1,QiHao Yu2,*(),YanHui You2,ZhongQiu Zhang1,TingTao Gou1

  1. 1 State Grid Qinghai Electric Power Research Institute, Xining, Qinghai 810008, China
    2 State Key Laboratory of Frozen Soil Engineering, Northwest Institute of Eco-environment and Resources, Chinese Academy of Sciences, Lanzhou, Gansu 730000, China
  • Received:2018-08-30 Accepted:2018-10-09 Online:2019-02-01 Published:2019-03-04
  • Contact: QiHao Yu E-mail:yuqh@lzb.ac.cn
  • Supported by:
    This work was supported by National Natural Science Fund of China (Grant No. 41401088), State Grid Qinghai Electric Power Research Institute (SGQHDKYOSBJS201600077, SGQHDKYOSBJS1700068), Funds of State Key Laboratory of Frozen Soil Engineering (Nos. SKLFSE-ZY-17, SKLFSE-ZT-32).

Abstract:

After the construction of Qinghai-Tibet Highway and Railway, the Qinghai-Tibet Power Transmission (QTPT) line is another major permafrost engineering project with new types of engineering structures. The changing process and trend of ground temperature around tower foundations are crucial for the stability of QTPT. We analyzed the change characteristics and tendencies of the ground temperature based on field monitoring data from 2010 to 2014. The results reveal that soil around the tower foundations froze and connected with the artificial permafrost induced during the construction of footings after the first freezing period, and the soil below the original permafrost table kept freezing in subsequent thawing periods. The ground temperature lowered to that of natural fields, fast or slowly for tower foundations with thermosyphons, while for tower foundations without thermosyphons, the increase in ground temperature resulted in higher temperature than that of natural fields. Also, the permafrost temperature and ice content are significant factors that influence the ground temperature around tower foundations. Specifically, the ground temperature around tower foundations in warm and ice-rich permafrost regions decreased slowly, while that in cold and ice poor permafrost regions cooled faster. Moreover, foundations types impacted the ground temperature, which consisted of different technical processes during construction and variant of tower footing structures. The revealed changing process and trend of the ground temperature is beneficial for evaluating the thermal regime evolution around tower foundations in the context of climate change.

Key words: Qinghai-Tibet Power Transmission line, tower foundation, ground temperature change characteristic, trend

Figure 1

Location of the monitored tower foundations of QTPT"

Table 1

List of monitoring towers"

No. Number Location Type of foundation Type of permafrost Thermosyphons Natural ground temperature (°C) Notes
1 490# Xieshui River Cast-in-place footing Ice rich No ?0.52 Comparison of thermosyphon efficiency
2 492# Cast-in-place footing Ice rich Yes ?0.07
3 571# Chumar River Precast footing Ice poor Yes ?1.33 Comparison of thermosyphon efficiency
4 572# Precast footing Ice poor No ?1.24
5 754# Beilu River Cast-in-place footing Ice rich Yes ?0.62
6 800# Fenghuo Mt. Cast-in-place bulb pile Ice rich No ?2.86
7 880# Wuli Basin Cast-in-place footing Ice rich Yes ?1.15
8 1,020# Kaixinling Cast-in-place footing Ice rich Yes ?0.62
9 1,323# Tanggula Mt. Precast footing Ice rich Yes ?1.24
10 1,443# Touerjiu Mt. Cast-in-place bulb pile Ice rich Yes ?0.72

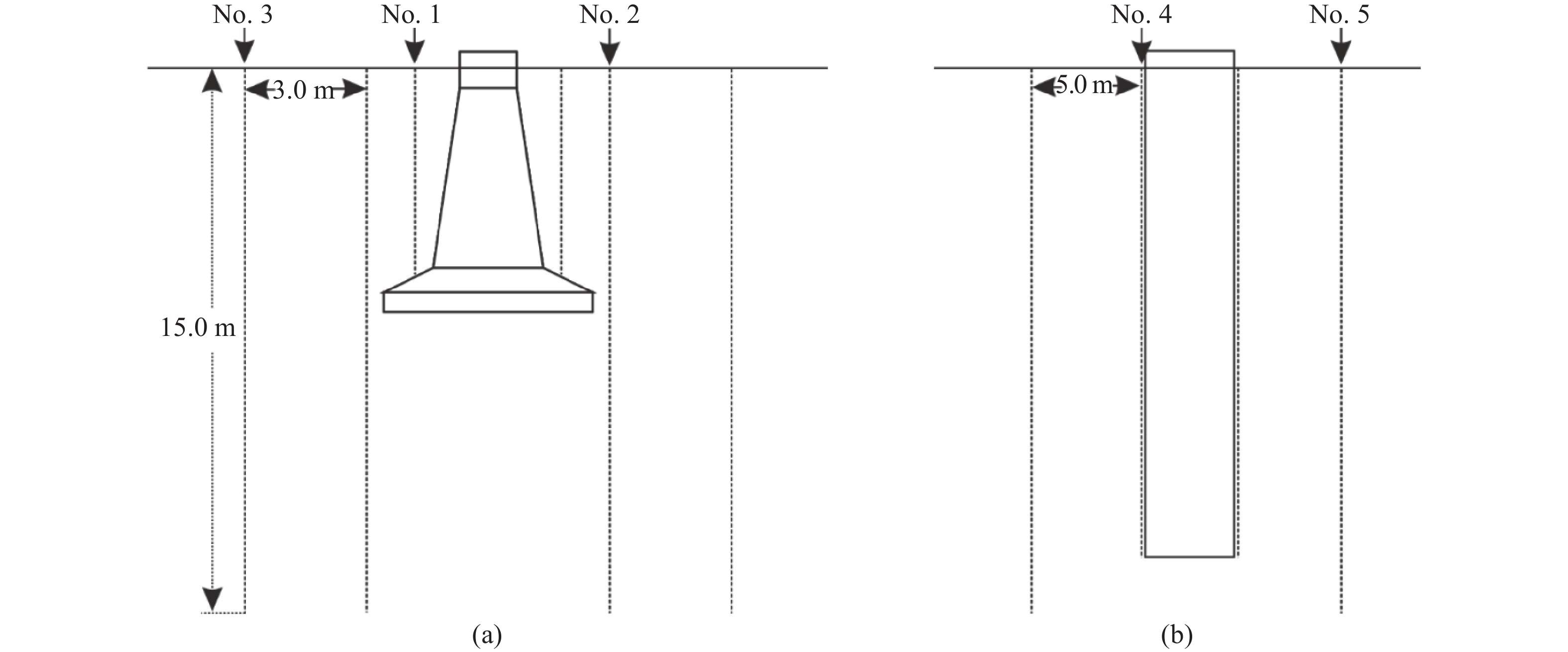

Figure 2

Temperature sensor installation location for cast-in-place conical footings and pre-cast footings (a), and for cast-in-place bulb piles and cast-in-place piles (b)"

Figure 3

Contour of ground temperature on October 1, 2011 of 571# tower (a) and 800# tower (b)"

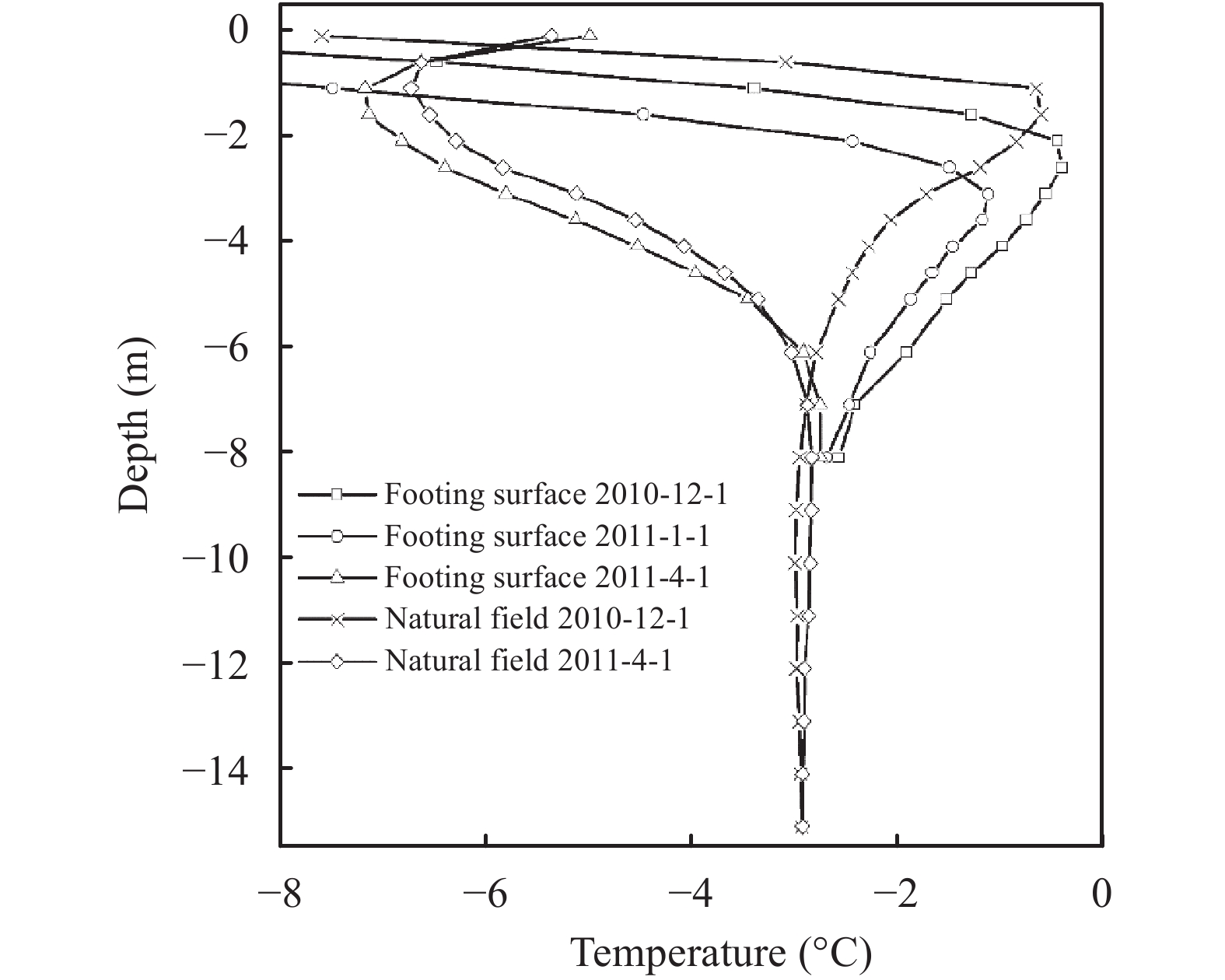

Figure 4

Ground temperature of 800# tower at Fenghuo Mt."

Figure 5

Ground temperature of 1,443# tower at Tou'erjiu Mt."

Figure 6

Ground temperature of 1,020# tower at Kaixinling"

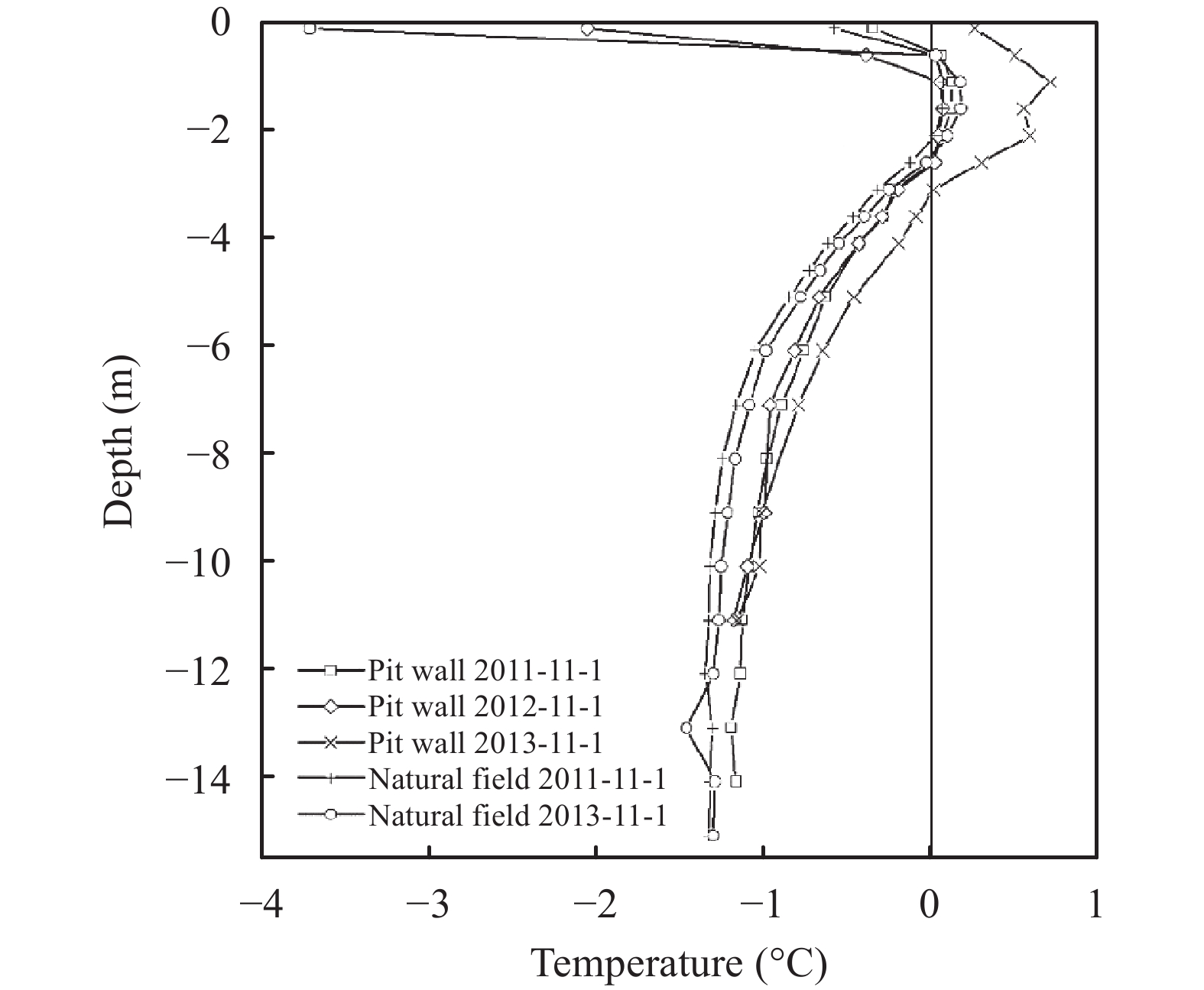

Figure 7

Ground temperature of 572# tower at Chumaer River high plain"

Figure 8

Contour of the ground temperature of the 571# tower at Chumaer River high plain. (a) April 15, 2011; (b) April 15, 2013"

Figure 9

Ground temperature of 1,020# tower at Kaixinling"

1 Chen ZY, Li GY, Yu QH, et al. Study of the thermal stability of cast-in-place pile foundations of the Qinghai-Tibet DC Transmission Project in permafrost regions. Journal of Glaciology and Geocryology 2013; 35: 5 1209- 1218.
doi: 10.7522/j.issn.1000-0240.2013.0136
2 Cheng GD, Zhao L The problems associated with permafrost in the development of the Qinghai-Xizang Plateau. Quaternary Sciences 2000; 20: 6 521- 531.
doi: 10.3321/j.issn:1001-7410.2000.06.004
3 Cui W, Wu QB, Liu YZ The thermal effect of a thermokarst lake on permafrost. Journal of Glaciology and Geocryology 2010; 32: 4 755- 760.
4 Duan X, Naterer GF Heat conduction with seasonal freezing and thawing in an active layer near a tower foundation. International Journal of Heat and Mass Transfer 2009; 52: 7–8 2068- 2078.
doi: 10.1016/j.ijheatmasstransfer.2008.11.004
5 Gu W, Yu QH, Qian J, et al. Qinghai-Tibet Expressway experimental research. Sciences in Cold and Arid Regions 2010; 2: 5 396- 404.
doi: 10.3724/SP.J.1226.2010.00396
6 Guo L, Yu QH, You YH, et al. Cooling effects of thermosyphons in tower foundation soils in permafrost regions along the Qinghai–Tibet Power Transmission Line from Golmud, Qinghai Province to Lhasa, Tibet Autonomous Region, China. Cold Regions Science and Technology 2016a; 121: 196- 204.
doi: 10.1016/j.coldregions.2015.07.011
7 Guo L, Yu QH, You YH, et al. Evaluation on the influences of lakes on the thermal regimes of nearby tower foundations along the Qinghai-Tibet Power Transmission Line. Applied Thermal Engineering 2016b; 102: 829- 840.
doi: 10.1016/j.applthermaleng.2016.03.135
8 Hao ZC, Jiang WJ, Ju Q, et al. The features of climate changes in the Five River source regions of the Tibetan Plateau. Journal of Glaciology and Geocryology 2010; 32: 6 1130- 1135.
9 Jiang HP, Liu ZR ±500 kV direct current transmission line ground and foundation design in frozen earth area. Inner Mongolia Electric Power 2006; 24: 4 1- 4.
doi: 10.3969/j.issn.1008-6218.2006.04.001
10 Li GY, Yu QH, Ma W, et al. Impacts of permafrost mean annual ground temperature and ice content on thermal regime of pile foundation of Qinghai-Tibet power transmission line. Advanced Materials Research 2013; 610–613: 2832- 2839.
doi: 10.4028/www.scientific.net/AMR.610-613.2832
11 Li GY, Yu QH, Ma W, et al. Freeze–thaw properties and long-term thermal stability of the unprotected tower foundation soils in permafrost regions along the Qinghai–Tibet Power Transmission Line. Cold Regions Science and Technology 2016; 121: 258- 274.
doi: 10.1016/j.coldregions.2015.05.004
12 Li MY, Wu QB, Liu YZ Monitoring the soil heat-moisture processes within an embankment in Qinghai-Tibet Railway. Journal of Glaciology and Geocryology 2011; 33: 3 546- 551.
13 Liu SW, Zhang JM Review on physic-mechanical properties of warm frozen soil. Journal of Glaciology and Geocryology 2012; 34: 1 120- 129.
14 Liu SW, Zhang JM, Zhang H, et al. Research on long-term creep test of permafrost on Qinghai-Tibet Plateau. Chinese Journal of Rock Mechanics and Engineering 2012; 31: S1 3245- 3253.
doi: 10.3969/j.issn.1000-6915.2012.z1.088
15 Lyazgin A, Lyashenko VS, Ostroborodov SV, et al. Experience in the prevention of frost heave of pile foundations of transmission towers under northern conditions. Power Technology and Engineering 2004; 38: 2 124- 126.
doi: 10.1023/B:HYCO.0000036365.64731.4c
16 Ma W, Wu ZW, Zhang LX, et al. Analyses of process on the strength decrease in frozen soils under high confining pressures. Cold Regions Science and Technology 1999; 29: 1 1- 7.
doi: 10.1016/S0165-232X(98)00020-2
17 Wang SH, Qi JL, Yao XL Stress relaxation characteristics of warm frozen clay under triaxial conditions. Cold Regions Science and Technology 2011; 69: 1 112- 117.
doi: 10.1016/j.coldregions.2011.06.015
18 Yang CS, Cheng GD Probabilistic prediction of the impacts of climate change on permafrost stability along the Qinghai-Tibet Railway (I): Active layer thickness and ground temperature. Journal of Glaciology and Geocryology 2011; 33: 3 461- 468.
19 You YH, Yang MB, Yu QH, et al. Investigation of an icing near a tower foundation along the Qinghai–Tibet Power Transmission Line. Cold Regions Science and Technology 2016; 121: 250- 257.
doi: 10.1016/j.coldregions.2015.05.005
20 Yu QH, Pan XC, Cheng GD, et al. Heat transfer process of roadway embankments with different type and width of road surface in permafrost regions. Progress in Natural Science 2007; 17: 3 314- 319.
doi: 10.1080/10020070612331343263
21 Yu QH, Liu HJ, Qian J, et al. Research on frozen engineering of Qinghai-Tibet 500 kV DC power transmission line. Chinese Journal of Engineering Geophysics 2009; 6: 6 806- 812.
doi: 10.3969/j.issn.1672-7940.2009.06.029
22 Yu QH, Fan K, Qian J, et al. Key issues of highway construction in permafrost regions in China. Scientua Sinica Technologica 2014; 44: 4 425- 432.
23 Yu Q, Ji YJ, Zhang ZQ, et al. Design and research of high voltage transmission lines on the Qinghai–Tibet Plateau—a special issue on the permafrost power lines. Cold Regions Science and Technology 2016; 121: 179- 186.
doi: 10.1016/j.coldregions.2015.05.003
24 Yu RF Research on frozen foundation around pole of transmission line. Jilin Electric Power 2002; 2 9- 12.
doi: 10.3969/j.issn.1009-5306.2002.02.003
25 Zhao XD, Zhou GQ Experimental study on the creep behavior of frozen clay with thermal gradient. Cold Regions Science and Technology 2013; 86: 127- 132.
doi: 10.1016/j.coldregions.2012.10.012
