Effects of freeze−thaw cycle and dry−wet alternation on slope stability

doi:10.3724/SP.J.1226.2019.00159.

Abstract

Abstract:

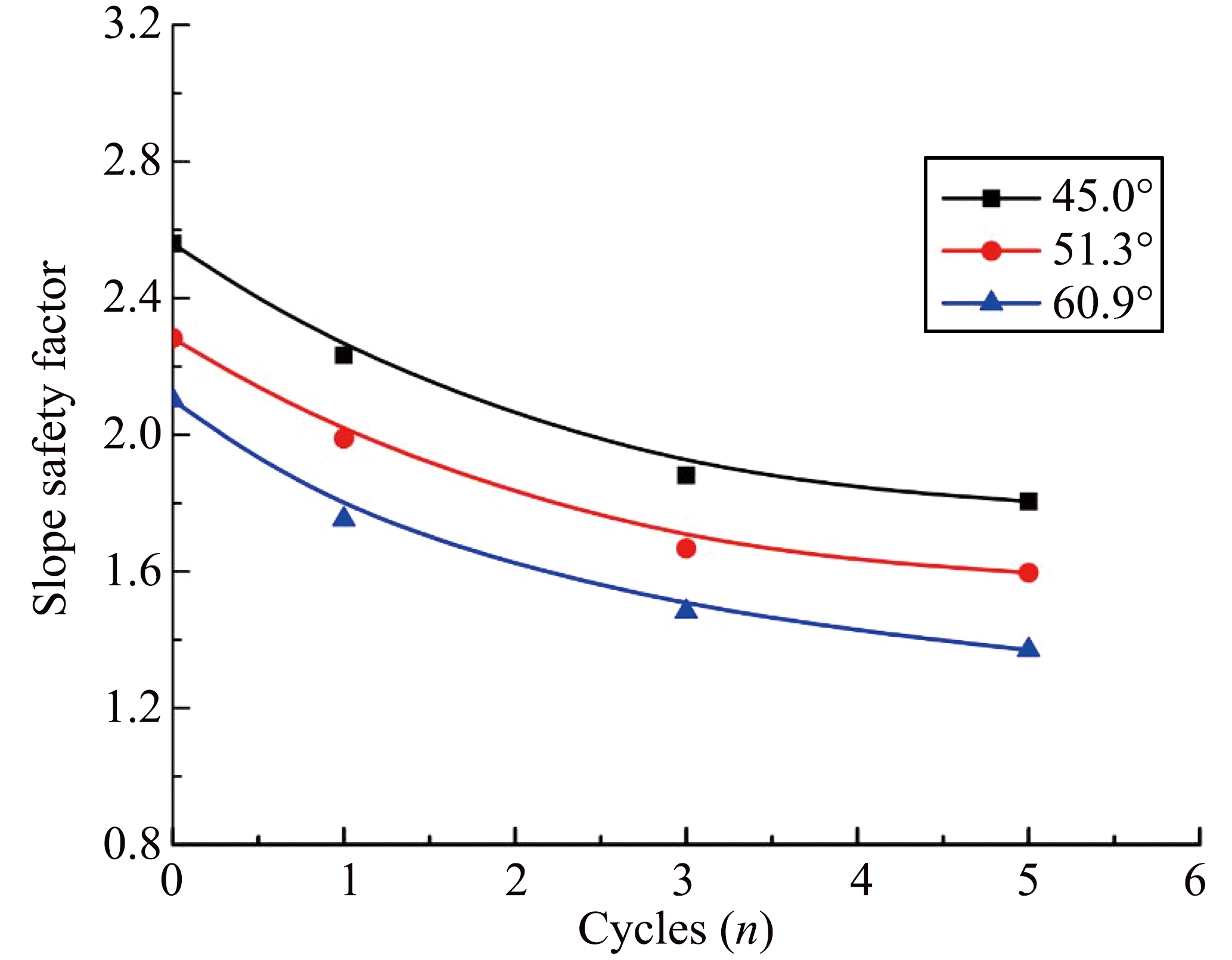

The typical loess on high slopes along the BaoLan High-speed Rail, China, was selected as the research object. The influence of the freeze?thaw cycle and dry?wet alternation on the shear-strength parameters of the unsaturated loess was investigated by laboratory experimental methods. Moreover, the temperature field, seepage field, and stability of slopes with different gradients were simulated under the effect of the freeze?thaw cycle and dry?wet alternation by using the geotechnical analysis software Geo-Studio. The research results showed (1) when the freeze?thaw cycle was repeated on the slope, with the frozen depth increasing, the melted depth did the same; besides, the closed loop of isotherms formed on the slope; (2) under the action of dry?wet circulation, the negative pore-water pressure and volumetric water content showed an upward tendency. However, owing to the different slope gradients, rainfall infiltration was not the same. As time went by, the differences of the negative pore-water pressure and volumetric water content between the slopes of different gradients continued to increase; (3) with the freeze?thaw cycle and dry?wet alternation increasing, the slope-safety factor decreased. Especially in the early period, the slope-safety factor changed remarkably. For slopes undergoing freeze?thaw action, the slope-safety factor was negatively correlated with the gradient. However, with regard to slopes undergoing dry?wet alternation, the result became more complex because the slope-safety factor was related to both seepage strength and slope grade. Accordingly, further research is needed to study the effect of seepage strength and slope grade on the stability of loess slopes.

Key words: freeze?thaw action, dry?wet alternation, temperature field, seepage field, slope stability

YaLing Chou,LiYuan Sun,BaoAn Li,XiaoLi Wang. Effects of freeze−thaw cycle and dry−wet alternation on slope stability[J].Sciences in Cold and Arid Regions, 2019, 11(2): 159-172.

Figures/Tables 25

Table 1

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8

Table 2

Table 3

Table 4

Figure 9

Table 5

Figure 10

Figure 11

Figure 12

Figure 13

Figure 14

Figure 15

Figure 16

Figure 17

Figure 18

Figure 19

Figure 20

References 0

	Chen SY, 1997. Analysis method of slope stability considering infiltration and evaporation effect. Rock and Soil Mechanics, 2: 8−12. DOI: 10.16285/j.rsm.1997.02.002.(in Chinese) doi: 10.16285/j.rsm.1997.02.002.(in Chinese)
	Chang D , Liu JK , Li X , et al . , 2014. Experimental study on the influence of freeze—thaw cycle on the mechanical properties of Qinghai-Tibet sand. Chinese Journal of Geotechnical Engineering, 33(7):1496−1502. DOI:10.13722/j.cnki.jrme.2014.07.023.(in Chinese) doi: 10.13722/j.cnki.jrme.2014.07.023.(in Chinese)
	Chang SP , Zhang SM , 2007. Engineering Geological Handbook, Beijing: China Architecture & Building Press.
	GEO-SLOPE International Ltd., 2011. Non-saturated Soil Seepage Analysis Software SEEP/W User Guid. Beijing: Metallurgical Industry Press.
	Huo LX , 2008. Climate change and its hydrological response in northwest China in recent 50a. Ph.D. Thesis, Lanzhou University, pp. 136.
	Jiang CY , 2013. Study on the influence of the change of shear strength characteristic parameters on the slope deformation of the fine soil slope before and after the freeze—thaw cycle. M.S. Thesis, Xinjiang Agricultural University, pp. 58.
	Li H , Yu Ling , 2011. Study on stability change of subgrade slope under freezing-thawing cycle. Subgrade engineering, (5): 26−28. DOI: 10.3969/j.issn.1003-8825.2011.05.009.(in Chinese) doi: 10.3969/j.issn.1003-8825.2011.05.009.(in Chinese)
	Liu XX , 2013. Analysis of slope stability in seasonal frozen soil area. M.S. Thesis, Chongqing Jiaotong University, pp. 83.
	Ni WK , Shi HQ , 2014. Influence of freezing-thawing cycles on micro-structure and shear strength of loess. Journal of Glaciology and Geocryology, 36(4): 922−927. DOI:10.7522/j.issn.1000-0240.2014.0111. doi: 10.7522/j.issn.1000-0240.2014.0111
	Shi HH , Wang DC , 2004. Effect of precipitation infiltration on stability of unsaturated soil slopes. West-china Exploration Engineering, 16(9): 36−39. DOI:10.3969/j.issn.1004-5716.2004.09.017.(in Chinese) doi: 10.3969/j.issn.1004-5716.2004.09.017.(in Chinese)
	Wan Y , Xue Q , Wu Y , Zhao L , 2015. Mechanical properties and micromechanisms of compacted clay during drying-wetting cycles. Rock and Soil Mechanics, 36(10): 2815−2824. DOI:10.16285/j.ism.2015.10.010. doi: 10.16285/j.ism.2015.10.010
	Wang FH , Li JC , Tian WP , 2009. Experiment on rainfall infiltration law of loess slope. Journal of Chang'an University (Natural Science Edition), (04): 20−24.DOI:10.19721/j.cnki.1671-8879.2009.04.005.(in Chinese) doi: 10.19721/j.cnki.1671-8879.2009.04.005.(in Chinese)
	Wang C , 2014. Study on mechanism of frost-thaw collapse of Hada Railway slope in seasonal frozen area. M.S. Thesis, Harbin Institute of Technology, pp. 74.
	Wang TX , Liu ZC , Lu J , 2007.Experimental study on thermal conductivity and specific heat capacity of loess. Rock and Soil Mechanics, 28(4): 655−658. DOI: 10.16285/j.rsm. 2007.04.004.(in Chinese) doi: 10.16285/j.rsm. 2007.04.004.(in Chinese)
	Xiao DH , Feng WJ , Zhang Z , et al . , 2014. Research on the Lanzhou loess's permeabilities changing with freezing-thawing cycle. Journal of Glaciology and Geocryology, 36(5): 1192−1198. DOI:10.7522/j.issn.1000-0240.2014.0109 doi: 10.7522/j.issn.1000-0240.2014.0109
	Xu H , Zhu YW , Cai YQ , et al . , 2005. Stability analysis of unsaturated soil slopes under rainfall infiltration. Rock and Soil Mechanics, 26(12):1957−1962. DOI:10.16285/j.rsm. 2005.12.020. doi: 10.16285/j.rsm. 2005.12.020
	Zhou H , Zhang Z , Feng WJ , et al . , 2014. Determination of long-term strength of frozen loess after numerous freeze—thaw cycles. Sciences in Cold and Arid Regions,6(5): 0494−0498. DOI: 10.3724/SP.J.1226.2014.00494. doi: 10.3724/SP.J.1226.2014.00494
	Zhang Z , V.Pendin Vadim , Feng WJ , et al . , 2015.The influence of freeze—thaw cycles on the granulometric composition of Moscow morainic clay. Sciences in Cold and Arid Regions,7(3): 0199−0205. DOI: 10.3724/SP.J.1226. 2015. 00199. doi: 10.3724/SP.J.1226. 2015. 00199
	Zhou J , Xu HZ , Hu WJ , 2013. Impact of wetting-drying cycle effects on stability of expansive soil slopes. Chinese Journal of Geotechnical Engineering, 35(2): 152−156.
	Zhou JW , Xu WY , Deng JY , et al . , 2008.Stability analysis of slope under the condition of rainfall infiltration. Journal of hydraulic engineering,39(9): 1066−1073. DOI: 10.1324 3/j.cnki.slxb.2008.09.013.(in Chinese) doi: 10.1324 3/j.cnki.slxb.2008.09.013.(in Chinese)

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

Comments

Recommended 0

No Suggested Reading articles found!

	Cycle number(times)	Shear strength at different vertical pressures (kPa)				Cohesion force (kPa)	Internal friction angle (°)
	Cycle number(times)	100	200	300	400	Cohesion force (kPa)	Internal friction angle (°)
Freeze?thaw cycles	0	108.720	148.584	202.944	279.048	43.488	29.479
	1	77.916	173.952	197.508	262.740	33.522	30.028
	3	81.540	148.584	184.824	262.740	24.462	30.105
	5	83.352	132.276	217.440	255.492	21.744	31.031
Dry?wet cycles	0	108.720	148.584	202.944	279.048	43.488	29.479
	1	86.976	112.344	206.568	224.688	30.804	26.903
	3	86.976	94.224	157.644	228.312	19.932	25.985
	5	79.728	110.532	155.832	230.124	19.932	26.404

Time	Temperature	Time	Temperature
00:00	?9 °C	12:00	3 °C
02:00	?8 °C	14:00	5 °C
04:00	?7°C	16:00	3 °C
06:00	?6 °C	18:00	0 °C
08:00	?3 °C	20:00	?6 °C
10:00	1 °C	22:00	?7 °C

Month	Diurnal minimum temperature (°C)	Daily mean temperature (°C)	Monthly precipitation (mm)
1	?10.2	?5.3	1.4
2	?6.0	?1.0	2.6
3	?0.2	5.4	9.2
4	6.0	12.1	14.7
5	10.7	17.0	33.2
6	14.2	20.4	44.0
7	16.6	22.4	67.0
8	15.6	21.1	73.2
9	11.4	16.3	40.8
10	2.9	9.8	21.3
11	?2.2	2.5	2.8
12	?8.4	?3.9	0.9

Condition	Evaporation
Potential evaporation strength (m/h)	0.00011
Duration (h)	12
Total potential evaporation (m)	0.00132
