Sciences in Cold and Arid Regions ›› 2021, Vol. 13 ›› Issue (6): 474-487.doi: 10.3724/SP.J.1226.2021.20094

Previous Articles

High-precision measurements of the inter-annual evolution for Urumqi Glacier No.1 in eastern Tien Shan, China

ChunHai Xu1,2(),ZhongQin Li1,JianXin Mu1,PuYu Wang1,FeiTeng Wang1

  1. 1.State Key Laboratory of Cryospheric Science/Tien Shan Glaciological Station, Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou, Gansu 730000, China
    2.National Cryosphere Desert Data Center, Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou, Gansu 730000, China
  • Received:2020-11-03 Accepted:2021-01-19 Online:2021-12-31 Published:2022-01-11
  • Contact: ChunHai Xu E-mail:xuchunhai@lzb.ac.cn
  • Supported by:
    the National Natural Science Foundation of China(42001067);Natural Science Foundation of Gansu Province(21JR7RA059);National Cryosphere Desert Data Center (20D03);National Natural Science Foundation of China(41771077);the Strategic Priority Research Program of Chinese Academy of Sciences(XDA20020102);Second Tibetan Plateau Scientific Expedition and Research (STEP) program(2019QZKK0201);State Key Laboratory of Cryospheric Science(SKLCS-ZZ-2021)

RichHTML

54

PDF (PC)

208

Abstract:

High-precision measuring of glacier evolution remains a challenge as the available global and regional remote sensing techniques cannot satisfactorily capture the local-scale processes of most small- and medium-sized mountain glaciers. In this study, we use a high-precision local remote sensing technique, long-range terrestrial laser scanning (TLS), to measure the evolution of Urumqi Glacier No.1 at an annual scale. We found that the dense point clouds derived from the TLS survey can be used to reconstruct glacier surface terrain, with certain details, such as depressions, debris-covered areas, and supra-glacial drainages can be distinguished. The glacier experienced pronounced thickness thinning and continuous retreat over the last four mass-balance years (2015-2019). The mean surface slope of Urumqi Glacier No.1 gradually steepened, which may increase the removal of glacier mass. The glacier was deeply incised by two very prominent primary supra-glacial rivers, and those rivers presented a widening trend. Extensive networks of supra-glacial channels had a significant impact on accelerated glacier mass loss. High-precision measuring is of vital importance to understanding the annual evolution of this type of glacier.

Key words: glacier thickness change, front variation, supra-glacial drainage pathway, long-range terrestrial laser scanning (TLS), climate change

Figure 1

An overview of the study site. (a) The location of Urumqi Glacier No.1 in the eastern Tien Shan. (b) The topography of Urumqi Glacier No.1, and scan positions (S1, S2, S3 and S4) for the TLS survey, and the glacier boundary delineated from the TLS-derived point cloud. (c) View of the glacier and the TLS survey equipment on August 28, 2018"

Figure 2

Survey marker (a) and 3-D coordinate survey (b) of each scan position. The 3-D coordinate survey was implemented using a Trimble R10 global navigation satellite system (GNSS) in 2018"

Table 1

Detailed point cloud surveying parameters of point cloud used in this study"

Date

(day/month/year)

Number of

points

Scanning range

(with overlap) (m2)

Average point density (points/m2)Angle resolution

Total scan

time (min)

02/09/201565,500,7494,707,86313.910.019°/0.046°103
01/09/201642,354,2993,316,26212.770.020°101
27/08/201754,835,8213,161,48917.340.020°88
28/08/201862,353,0354,642,13313.430.020°103
26/08/201962,259,0634,325,21414.390.020°100

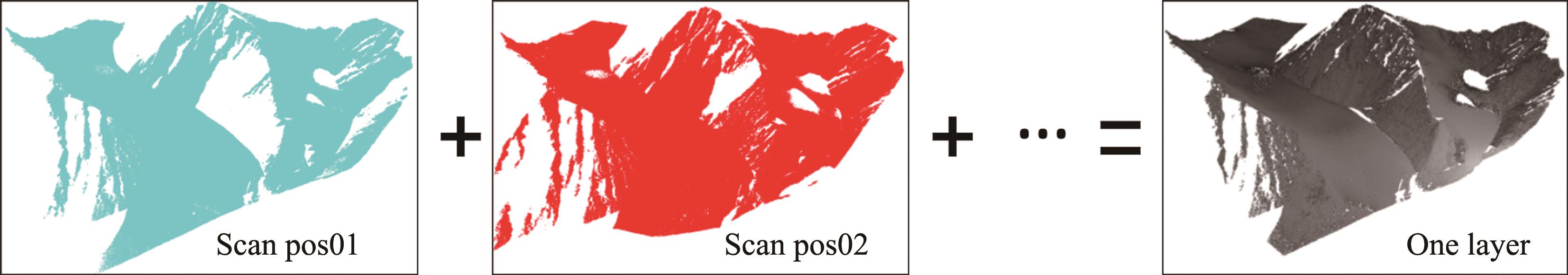

Figure 3

Mosaicking of the point cloud of each scan position into one layer. The colors of point clouds denote different scan positions"

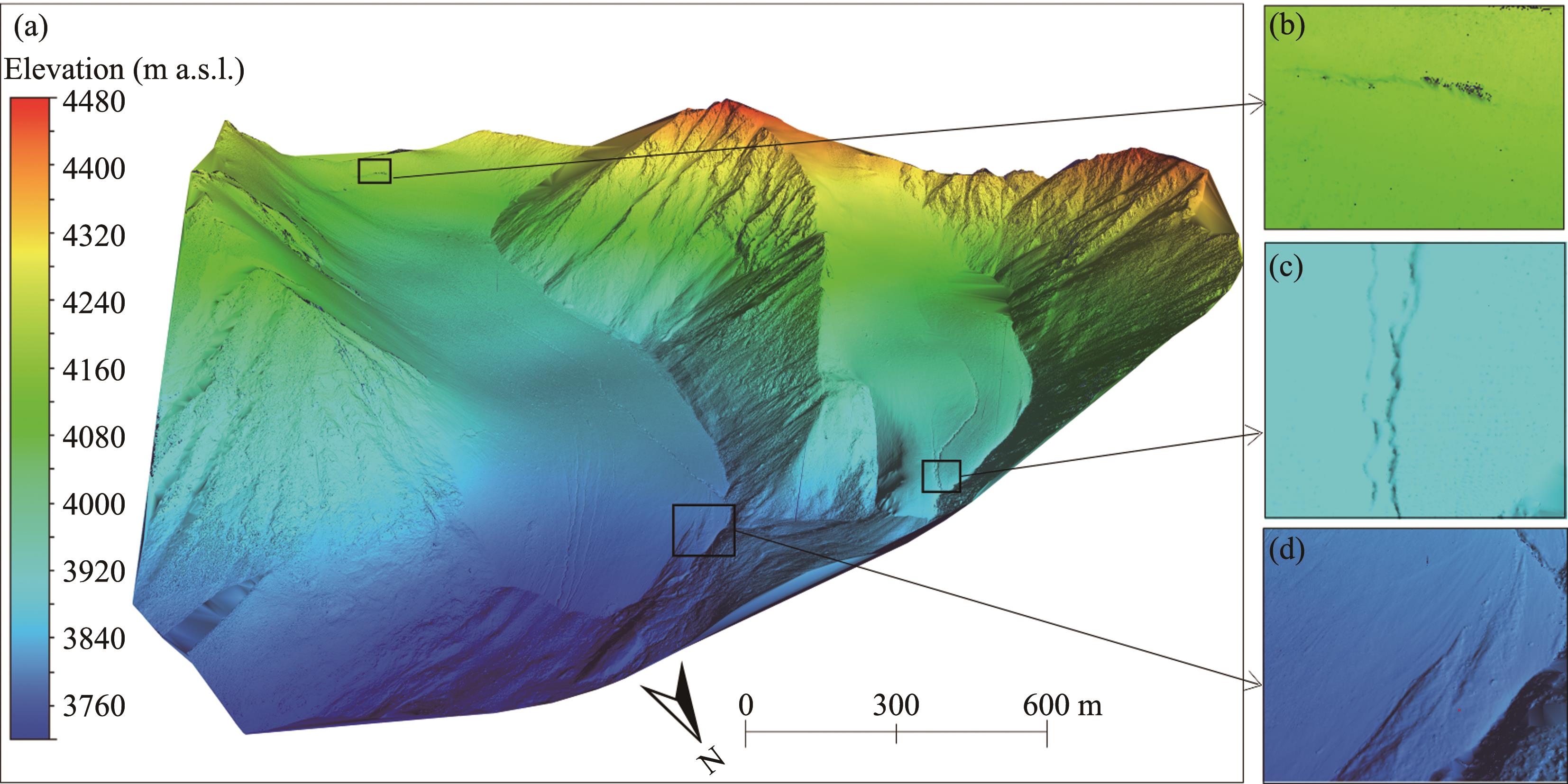

Figure 4

3-D reconstruction of the glacier surface using the dense point clouds from the TLS. (a) Overview of the spatially distributed glacier and its surrounding surface terrains in 2019, (b) depression zones at the upper elevations of the glacier, (c) supra-glacial drainage, and (d) small debris-covered area at the terminus of the east branch"

Figure 5

Spatial pattern of TLS-derived surface elevation change of Urumqi Glacier No.1 for the mass-balance year 2015-2016 (a), 2016-2017 (b), 2017-2018 (c), and 2018-2019 (d). Green boxes represent areas that have not been surveyed by the TLS"

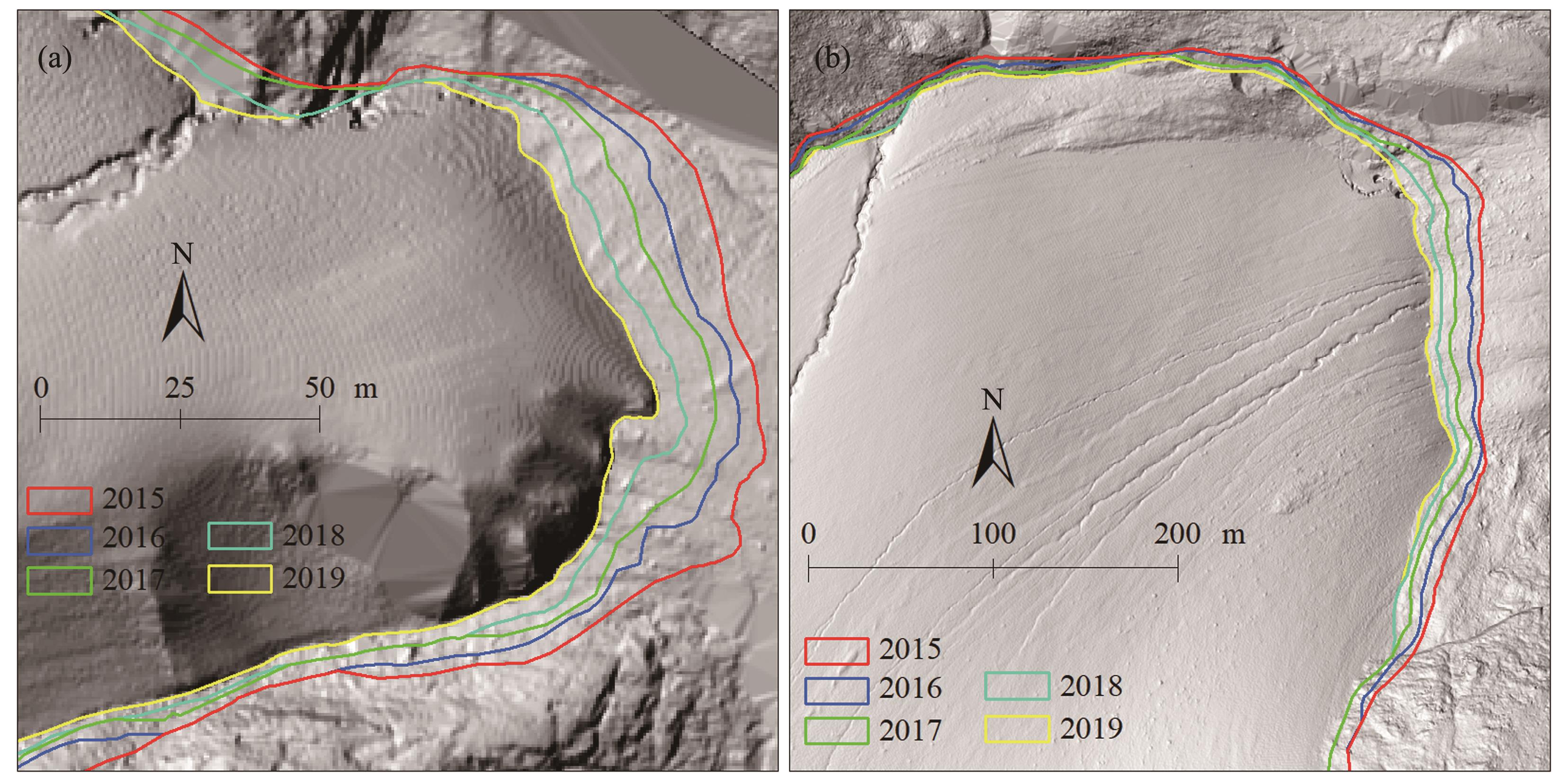

Figure 6

Spatially distributed glacier front variations for the west (a) and east (b) branches of Urumqi Glacier No.1. Shaded reliefs in the background are from the TLS-derived DEMs in 2019"

Figure 7

Spatially distributed surface slope changes of Urumqi Glacier No.1 for the mass-balance year 2015-2016 (a), 2016-2017 (b), 2017-2018 (c) and 2018-2019 (d)"

Figure 8

Spatial and temporal evolution of supra-glacial drainage pathways over the lower reaches of the west branch from the TLS surveys in 2015 (a), 2016 (b), 2017 (c), 2018 (d), and 2019 (e). Major supra-glacial drainage pathways were manually identified (f)"

Figure 9

Spatial and temporal evolution of supra-glacial drainage pathways over the lower reaches of the west branch from the TLS surveys in 2015 (a), 2016 (b), 2017 (c), 2018 (d), and 2019 (e). Major supra-glacial drainage pathways were manually identified (f)"

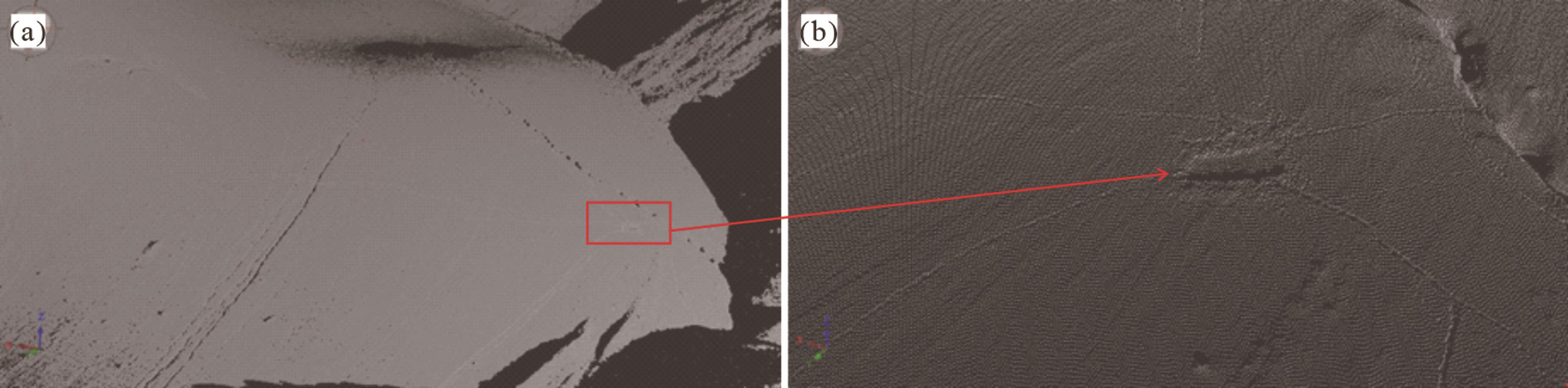

Figure 10

TLS-derived point cloud of the east branch: (a) enlargement of a local region, and (b) details of a footprint that is easily identifiable"

Figure 11

Transverse profiles of surface elevation changes across the two very prominent primary supra-glacial rivers"

Abermann J, Fischer A, Lambrecht A, et al., 2010. On the potential of very high-resolution repeat DEMs in glacial and periglacial environments. The Cryosphere, 4: 53-65. DOI: 10.5194/tc-4-53-2010.
doi: 10.5194/tc-4-53-2010
Benoit L, Gourdon A, Vallat R, et al., 2019. A high-resolution image time series of the Gorner Glacier-Swiss Alps-derived from repeated unmanned aerial vehicle surveys. Earth System Science Data, 11(2): 579-588. DOI: 0.5194/essd-11-579-2019.
doi: 0.5194/essd-11-579-2019
Besl P, Neil DM, 1992. A method for registration of 3-D shapes. IEEE Transactions on Pattern Analysis and Machine Intelligence, 14: 239-256. DOI: 10.1109/34.121791.
doi: 10.1109/34.121791
Brun F, Berthier E, Wagnon P, et al., 2017. A spatially resolved estimate of High Mountain Asia glacier mass balances from 2000 to 2016. Nature Geoscience, 10: 668-673. DOI: 10.1038/NGEO2999.
doi: 10.1038/NGEO2999
CH/Z3017-2015, 2015. Technical Specifications for Three-dimensional Laser Scanning, National Administration of Surveying, Mapping and Geo-information of the People's Republic of China, Beijing, China. pp.1-17. (in Chinese)
Che Y, Wang S, Yi S, et al., 2020. Summer mass balance and surface velocity derived by unmanned aerial vehicle on debris-covered region of Baishui River Glacier No.1, Yulong Snow Mountain. Remote Sensing, 12(20): 1-15. DOI: 10.3390/rs12203280.
doi: 10.3390/rs12203280
Ding Y, Zhang S, Zhao L, et al., 2019. Global warming weakening the inherent stability of glaciers and permafrost. Science Bulletin, 64(4): 245-253. DOI: 10.1016/j.scib.2018.12.028.
doi: 10.1016/j.scib.2018.12.028
Farinotti D, Longuevergne L, Moholdt G, et al., 2015. Substantial glacier mass loss in the Tien Shan over the past 50 years. Nature Geoscience, 8: 716-722. DOI: 10.1038/NGEO2513.
doi: 10.1038/NGEO2513
Fey C, Wichmann V, 2017. Long-range terrestrial laser scanning for geomorphological change detection in alpine terrain-handling uncertainties. Earth Surface Processes and Landforms, 42(5): 789-802. DOI: 10.1002/esp.4022.
doi: 10.1002/esp.4022
Fischer M, Huss M, Kummert M, et al., 2016. Application and validation of long-range terrestrial laser scanning to monitor the mass balance of very small glaciers in the Swiss Alps. The Cryosphere, 10(3): 1279-1295. DOI: 10.5194/tc-10-1279-2016.
doi: 10.5194/tc-10-1279-2016
Fugazza D, Scaioni M, Corti M, et al., 2018. Combination of UAV and terrestrial photogrammetry to assess rapid glacier evolution and map glacier hazards. Natural Hazards and Earth System Sciences, 18(4): 1055-1071. DOI: 10.5194/nhess-18-1055-2018.
doi: 10.5194/nhess-18-1055-2018
Gabbud C, Micheletti N, Lane SN, 2015. Lidar measurement of surface melt for a temperate Alpine glacier at the seasonal and hourly scales. Journal of Glaciology, 61(229): 963-974. DOI: 10.3189/2015JoG14J226.
doi: 10.3189/2015JoG14J226
Gindraux S, Boesch R, Farinotti D, 2017. Accuracy assessment of digital surface models from unmanned aerial vehicles' imagery on glaciers. Remote Sensing, 9(2): 1-15. DOI: 10.3390/rs9020186.
doi: 10.3390/rs9020186
Guo W, Liu S, Xu J, et al., 2015. The second Chinese glacier inventory: data, methods and results. Journal of Glaciology, 61(226): 357-372. DOI: 10.3189/2015JoG14J209.
doi: 10.3189/2015JoG14J209
Haeberli WI, 1995. Glacier fluctuations and climate change detection. Geografia Fisica e Dinamica Quaternaria, 18: 191-199.
Immerzeel WW, Kraaijenbrink PD, et al., 2014. High-resolution monitoring of Himalayan glacier dynamics using unmanned aerial vehicles. Remote Sensing of Environment, 150: 93-103. DOI: 10.1016/j.rse.2014.04.025.
doi: 10.1016/j.rse.2014.04.025
Joerg PC, Morsdorf F, Zemp M, 2012. Uncertainty assessment of multi-temporal airborne laser scanning data: A case study on an Alpine glacier. Remote Sensing of Environment, 127: 118-129. DOI: 10.1016/j.rse.2012.08.012.
doi: 10.1016/j.rse.2012.08.012
Li P, Yan M, Xu Y, et al., 2012. Calculation methods of glacier terminus variation Based on GIS: a case study on Austre Lovénbreen in Arctic. Journal of Glaciology and Geocryology, 34(2): 367-367. (in Chinese)
Li Z, Li H, Chen Y, 2011. Mechanisms and simulation of accelerated shrinkage of continental glaciers: a case study of Urumqi Glacier No. 1 in eastern Tianshan, Central Asia. Journal of Earth Science, 22(4): 423-430. DOI: 10.1007/s12583-011-0194-5.
doi: 10.1007/s12583-011-0194-5
Liang S, 1983. Type glacier-I hot-water ice auger and its application. Journal of Glaciology and Geocryology, 5(4): 91-95. (in Chinese)
Lichti DD, Gordon SJ, Tipdecho T, 2005. Error models and propagation in directly georeferenced terrestrial laser scanner networks. Journal of Surveying Engineering, 131(4): 135-142. DOI: 10.1061/(ASCE)0733-9453.
doi: 10.1061/(ASCE)0733-9453
López MJI, Revuelto J, Rico I, et al., 2016. Thinning of the Monte Perdido Glacier in the Spanish Pyrenees since 1981. The Cryosphere, 10: 681-694. DOI: 10.5194/tc-10-681-2016.
doi: 10.5194/tc-10-681-2016
Marzeion B, Kaser G, Maussion F, et al., 2018. Limited influence of climate change mitigation on short-term glacier mass loss. Nature Climate Change, 8(4): 305-308. DOI: 10.1038/s41558-018-0093-1.
doi: 10.1038/s41558-018-0093-1
Perroy RL, Bookhagen B, Asner GP, et al., 2010. Comparison of gully erosion estimates using airborne and ground-based LiDAR on Santa Cruz Island, California. Geomorphology, 118(3-4): 288-300. DOI: 10.1016/j.geomorph.2010.01.009.
doi: 10.1016/j.geomorph.2010.01.009
Piermattei L, Carturan L, Guarnieri A, 2015. Use of terrestrial photogrammetry based on structure-from-motion for mass balance estimation of a small glacier in the Italian Alps. Earth Surface Processes and Landforms, 40(13): 1791-1802. DOI: 10.1002/esp.3756.
doi: 10.1002/esp.3756
Ren, J, Zhang J, Huang M, 1985. A study of the ice temperature in No. 1 glacier in the Urumqi River headwaters, Tianshan. Journal of Glaciology and Geocryology, 7(2): 141-152. (in Chinese)
Revuelto J, López-Moreno JI, Azorin-Molina C, et al., 2014. Mapping the annual evolution of snow depth in a small catchment in the Pyrenees using the long-range terrestrial laser scanning. Journal of Maps, 10(3): 379-393. DOI: 10.1080/17445647.2013.869268.
doi: 10.1080/17445647.2013.869268
RIEGL Laser Measurement Systems, 2014. 3D terrestrial laser scanner Riegl VZ®-4000/Riegl VZ®-6000 General Description and Data Interfaces. Horn, Austria: RIEGL Laser Measurement Systems.
Rippin DM, Pomfret A, King N, 2015. High resolution mapping of supra-glacial drainage pathways reveals link between micro-channel drainage density, surface roughness and surface reflectance. Earth Surface Processes and Landforms, 40(10): 1279-1290. DOI: 10.1002/esp.3719.
doi: 10.1002/esp.3719
Rolstad C, Haug T, Denby B, 2009. Spatially integrated geodetic glacier mass balance and its uncertainty based on geostatistical analysis: application to the western Svartisen ice cap, Norway. Journal of Glaciology, 55(192): 666-680. DOI: 10.3189/002214309789470950.
doi: 10.3189/002214309789470950
Schnabel R, Klein R, 2006. Octree-based point-cloud compression, in: Proceedings of Eurographics Symposium on Point Based Graphics, Boston, MA, USA, 111-120. DOI: 10.2312/SPBG/SPBG06/111-120.
doi: 10.2312/SPBG/SPBG06/111-120
Schumann GJ, Bates PD, 2018. The need for a high-accuracy, open-access global DEM. Frontiers in Earth Science, 6: 1-5. DOI: 10.3389/feart.2018.00225.
doi: 10.3389/feart.2018.00225
Shangguan D, Liu S, Ding Y, et al., 2010. Changes in the elevation and extent of two glaciers along the Yanglonghe river, Qilian Shan, China. Journal of Glaciology, 56(196): 309-317. DOI: 10.3189/002214310791968566.
doi: 10.3189/002214310791968566
Silverio W, Jaquet JM, 2005. Glacial cover mapping (1987-1996) of the Cordillera Blanca (Peru) using satellite imagery. Remote Sensing of Environment, 95(3): 342-350. DOI: 10.1016/j.rse.2004.12.012.
doi: 10.1016/j.rse.2004.12.012
Sorg A, Bolch T, Stoffel M, et al., 2012. Climate change impacts on glaciers and runoff in Tien Shan (Central Asia). Nature Climate Change, 2(10): 725-731. DOI: 10.1038/NCLIMATE1592.
doi: 10.1038/NCLIMATE1592
Sommer C, Malz P, Seehaus TC, et al., 2020. Rapid glacier retreat and downwasting throughout the European Alps in the early 21st century. Nature Communications, 11(1): 1-10. DOI: 10.1038/s41467-020-16818-0.
doi: 10.1038/s41467-020-16818-0
Thibert E, Blanc R, Vincen C, et al., 2008. Glaciological and volumetric mass-balance measurements: error analysis over 51 years for Glacier de Sarennes, French Alps. Journal of Glaciology, 54(186): 522-532. DOI: 10.3189/002214308785837093.
doi: 10.3189/002214308785837093
Thomson L, Copland L, 2016. White Glacier 2014, Axel Heiberg Island, Nunavut: mapped using structure from motion methods. Journal of Maps, 12(5): 1063-1071. DOI: 10.1080/17445647.2015.1124057.
doi: 10.1080/17445647.2015.1124057
Wang P, Li Z, Li H, et al., 2017. Characteristics of a partially debris-covered glacier and its response to atmospheric warming in Mt. Tomor, Tien Shan, China. Global and Planetary Change, 159: 11-24. DOI: 10.1016/j.gloplacha.2017.10.006.
doi: 10.1016/j.gloplacha.2017.10.006
Wang P, Li Z, Li H, et al., 2016. Analyses of recent observations of Urumqi Glacier No. 1, Chinese Tianshan mountains. Environmental Earth Sciences, 75(8): 1-11. DOI: 10.1007/s12665-016-5551-3.
doi: 10.1007/s12665-016-5551-3
WGMS (World Glacier Monitoring Service), 2020. Fluctuations of Glaciers Database. World Glacier Monitoring Service, Zurich, Switzerland. DOI: 10.5904/wgms-fog-2020-08.
doi: 10.5904/wgms-fog-2020-08
Xu C, Li Z, Li H, et al., 2019. Long-range terrestrial laser scanning measurements of annual and intra-annual mass balances for Urumqi Glacier No. 1, eastern Tien Shan, China. The Cryosphere, 13(9): 2361-2383. DOI: 10.5194/tc-13-2361-2019.
doi: 10.5194/tc-13-2361-2019
Xu C, Li Z, Wang P, et al., 2018. Detailed comparison of glaciological and geodetic mass balances for Urumqi Glacier No. 1, eastern Tien Shan, China, from 1981 to 2015. Cold Regions Science and Technology, 155: 137-148. DOI: 10.1016/j.coldregions.2018.08.006.
doi: 10.1016/j.coldregions.2018.08.006
Zemp M, Thibert E, Hus, et al., 2013. Reanalysing glacier mass balance measurement series. The Cryosphere, 7: 1227-1245. DOI: 10.5194/tc-7-1227-2013.
doi: 10.5194/tc-7-1227-2013
Zhang Z, 1994. Iterative point matching for registration of free-form curves and surfaces. International Journal of Computer Vision, 13(2): 119-152. DOI: 10.1007/BF01427149.
doi: 10.1007/BF01427149
Zhu G,1982. Type B-1 experimental radar instation for measuring the thickness of glaciers. Journal of Glaciology and Geocryology, 4(2): 93-95. (in Chinese)
