Sciences in Cold and Arid Regions ›› 2020, Vol. 12 ›› Issue (4): 252-260.doi: 10.3724/SP.J.1226.2020.00252

Previous Articles

Variation characteristics of evaporation in the Gulang River Basin during 1959-2013

TingTing Wang1,2(),JianGuo Li2,3,ZongXing Li2,3

  1. 1.School of Economics and Management, Lanzhou Jiaotong University, Lanzhou, Gansu 730070, China
    2.Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou, Gansu 730000, China
    3.Key Laboratory of Ecohydrology of Inland River Basin, Chinese Academy of Sciences, Lanzhou, Gansu 730000, China
  • Received:2019-08-12 Accepted:2020-03-06 Online:2020-08-31 Published:2020-09-04
  • Contact: TingTing Wang


Based on monthly evaporation of two meteorological stations in the Gulang River Basin of China, the inter-annual variation of evaporation during 1959-2013 were analyzed using Mann-Kendall and wavelet analysis. The results demonstrated that the annual evaporation show a fluctuating increase over the past 50 years approximately, with an average increase rate of 4.26 mm per decade. The overall trend was decrease-increase-decrease. According to the cumulative anomaly curve, the turning point of the annual evaporation occurred in 1979, in which the evaporation increased in the early stage and decreased in the later stage. Meanwhile, the seasonal variation of the evaporation shows that it decreased in Spring and Autumn, and increased in Summer and Winter, especially obvious for the later. The evaporation abruptly changed in Spring and Summer in 2008 and in Winter in 1994. In addition, all evaporation increased after the changes. However, the evaporation in Autumn abruptly changed in 1986 and 1999, which show a trend of increase-decrease-increase. Wavelet analysis shows that evaporation in Summer and wet season would decrease in the next few years, and in the other seasons would increase. Based on the aforementioned analysis, it can be concluded that increased evaporation is mainly induced by increase of evaporation in dry season, especially in Winter, and this trend to be continued in the future for the Gulang River Basin.

Key words: Gulang River Basin, evaporation, abrupt changes, wavelet analysis

Figure 1

Meteorological and hydrological stations in the Gulang River Basin"

Figure 2

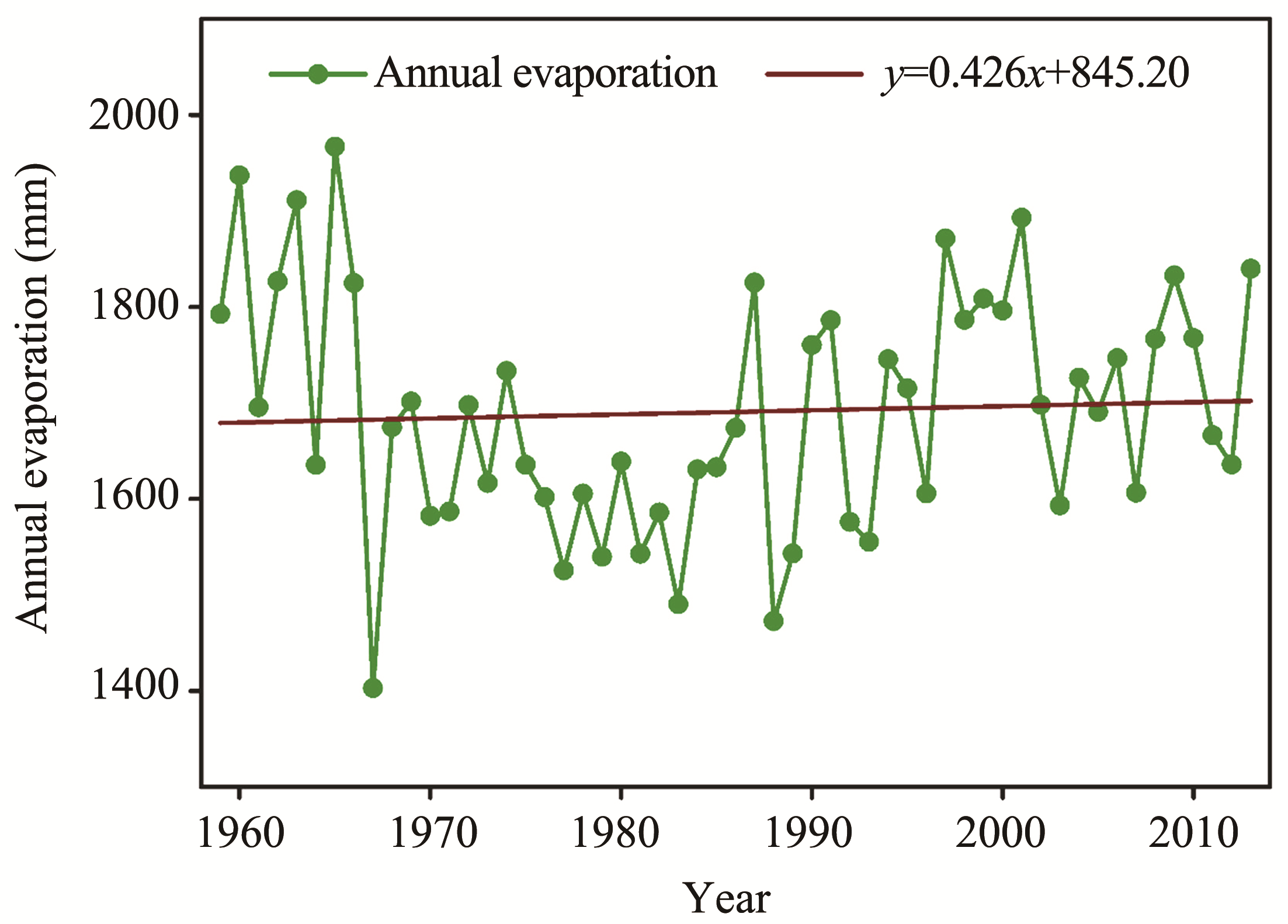

The variation trend of evaporation in the Gulang River Basin during 1959-2013"

Figure 3

Anomaly of evaporation in the Gulang River Basin"

Figure 4

Seasonal variation of evaporation in the Gulang River Basin"

Figure 5

Abrupt change of evaporation from 1959 to 2013 in the Gulang River Basin"

Figure 6

Cycle change of evaporation in the Gulang River Basin"

Bai AJ, Liu XD, 2005. Analysis on the climate change from warming-drying trend to warming-wetting trend in Northwest China. Arid Zone Research, 22(4): 458-464. DOI: 10.1007/s10409-004-0010-x.
doi: 10.1007/s10409-004-0010-x
Cai T, 2018. Analysis of precipitation variations in the middle and upper reaches of the Dalinghe river Basin from 1956 to 2016 based on the Mann-Kendall Method. Pearl River, 39(10): 83-88. DOI: 10. 3969/j. issn. 1001-9235. 2018. 11. 015.
doi: 10. 3969/j. issn. 1001-9235. 2018. 11. 015
Cheng L, Ma L, Yang M, et al., 2019. Changes of temperature and precipitation and their impacts on runoff in the upper Taohe River in northwest China from 1956 to 2014. Environment Earth Science, 78: 423. DOI:
doi: 10.1007/s12665-019-8399-5
Guo JY, Li YH, 2006. Climatic characteristics of summer precipitation in Northwestern China. Arid Zone Research, 23(3): 489-494. DOI: 10.1016/S1003-6326(06)60040-X.
doi: 10.1016/S1003-6326(06)60040-X
Hu SJ, Tian CY, Song YD, et al., 2005. Conversion coefficient of water surface evaporation in Tarim River Basin. Journal of Desert Research, 25 (5): 649-651. DOI: 10.3321/j.issn:1000-694X.2005.05.005.
doi: 10.3321/j.issn:1000-694X.2005.05.005
Hu TJ, 2009. The evolution analysis to the surface water resources in the Gulang River Basin. Gansu Water Conservancy and Hydropower Technology, 45(10): 11-12. DOI: CNKI:SUN:GSSJ.0.2009-10-005.
doi: CNKI:SUN:GSSJ.0.2009-10-005
Li CB, Li WY, Wang XS, et al., 2011. Characteristic changes in air temperature, precipitation and mountain runoff in the past 50 years in the middle and western reaches of Heihe River Basin. Journal of Lanzhou University (Natural Sciences), 47(4): 7-12.
Li Z, Yan ZW, 2009. Homogenized daily mean /maximum/minimum temperature series for China from 1960-2008. Atmospheric and Oceanic Science Letters, 2(4): 237-243. DOI: 10.1080/16742834.2009.11446802.
doi: 10.1080/16742834.2009.11446802
Liao J, Wang T, Xue X, 2015. Lake's evaporation in the Ejin Basin since transfering water from the Heihe River. Journal of Desert Research, 35(1): 228-232. DOI: 10.7522/j.issn. 1000-694X.2013.00448.
doi: 10.7522/j.issn. 1000-694X.2013.00448
Liu C, Wang SR, Liang YY, et al., 2013. Analysis of pan evaporation change and the influence factors in the Yellow River Basin in 1961-2010. Progressus Inquisitiones DE Mutatione Climatis, 9(5): 327-334. DOI: 10.3969/j.issn.1673-1719.2013.05.003.
doi: 10.3969/j.issn.1673-1719.2013.05.003
Liu GS, Wang GX, Hu HC, et al., 2010. Climate change characteristics in the source regions of the Yangtze River and Yellow River over the past 45 years. Resources Science, 32(8): 1486-1492. DOI: 10.1631/jzus.A0900773.
doi: 10.1631/jzus.A0900773
Lu J, Wang GJ, Gong TT, et al., 2019. Changes of actual evapotranspiration and its components in the Yangtze River valley during 1980-2014 from satellite assimilation product. Theoretical and Applied Climatology, 138: 1493-1510. DOI: 10.1007/s00704-019-02913-w.
doi: 10.1007/s00704-019-02913-w
Meng XJ, Zhang SF, Zhang YY, 2012. The temporal and spatial change of temperature and precipitation in Hexi Corridor in recent 57 years. Acta Geographica Sinica, 67(11): 1482-1492. DOI: 10.11821/xb201211005.
doi: 10.11821/xb201211005
Peterson TC, Golubev VS, Groisman PY, 1995. Evaporation losing its strength. Nature, 377: 687-688. DOI: 10.1038/377687b0.
doi: 10.1038/377687b0
Qi S, Ma JZ, Ling XY, et al., 2019. NO3- circulation and associated driving factors in the unsaturated zone of southwestern Tengger Desert, Northwestern China. CATENA, 173: 394-409. DOI: 10.1016/j.catena.2018.10.020.
doi: 10.1016/j.catena.2018.10.020
Qiu XF, Liu CM, Zeng Y, 2003. Changes of pan evaporation in the recent 40 years over the Yellow River Basin. Journal of Natural Resources, 18(4): 437-442. DOI: 10.3321/j.issn:1000-3037.2003.04.007.
doi: 10.3321/j.issn:1000-3037.2003.04.007
Ren GY, Guo J, 2006. Change in Pan Evaporation and the Influential Factors over China: 1956-2000. Journal of Natural Resources, 21(1): 31-44. DOI: 10.3321/j.issn:1000-3037. 2006.01.005.
doi: 10.3321/j.issn:1000-3037. 2006.01.005
Ren ZX, Yang DY, 2007. Study on trends of extreme clmiate change in the arid region of Northwest China in resent 40 years. Journal of Arid Land Resources and Environment, 21(4): 10-13. DOI: 10.3969/j.issn.1003-7578.2007. 04.003.
doi: 10.3969/j.issn.1003-7578.2007. 04.003
Roderick ML, Rotstayn LD, Farquhar GD, et al., 2007. On the attribution of changing pan evaporation. Geophysical Research Letters, 34: 1-6. DOI: 10.1029/2007GL031166.
doi: 10.1029/2007GL031166
Sheng L, Liu MC, Hu ZH, et al., 2013. Characteristics of climate change and its influence on growth period of crops in Shiyang River basin. Agricultural Research in the Arid Areas, 31(5): 19-27. DOI: 10.3969/j.issn.1000-7601.2013. 05.004.
doi: 10.3969/j.issn.1000-7601.2013. 05.004
Shi YF, Shen YP, Kang E, et al., 2007. Recent and future climate change in Northwest China. Climatic Change, 80(3): 379-393. DOI: 10.1007/s10584-006-9121-7.
doi: 10.1007/s10584-006-9121-7
Song HR, 2018. Variation characteristics and mutation analysis of water and sediment in the middle and upper reaches of Daling River. Technology of Soil and Water Conservation, (1): 10-13. DOI: CNKI:SUN:STBK.0.2018-01-004.
doi: CNKI:SUN:STBK.0.2018-01-004
Su BD, Jiang T, Shi YF, et al., 2004. Observed precipitation trends in the Yangtze River Basin from 1951-2002. Journal of Geographical Science, 14(2): 204-218. DOI: 10.1007/bf02837536.
doi: 10.1007/bf02837536
Wang TT, Feng Q, Guo XY, et al., 2016. Temporal variation of temperature in the Gulang River Basin from 1959 to 2014. Plateau Meteorology, 35(6): 1615-1624. DOI: 10.7522/j.issn.1000-0534.2016.00105.
doi: 10.7522/j.issn.1000-0534.2016.00105
Wang YJ, Cheng H, Edwards RL, et al., 2008. Millennial and orbital-scale changes in the East Asian monsoon over the past 224,000 years. Nature, 7182(451): 1090-1093. DOI: 10.1038/nature06692.
doi: 10.1038/nature06692
Wang YJ, Qin DH, 2017. Influence of climate change and human activity on water resources in arid region of Northwest China: An overview. Advances in Climate Change Research, 8(4): 268-278. DOI: 10.1016/j.accre.2017.08.004.
doi: 10.1016/j.accre.2017.08.004
Xu SQ, Yu ZB, Yang CG, et al., 2018. Trends in evapotranspiration and their responses to climate change and vegetation greening over the upper reaches of the Yellow River Basin. Agricultural and Forest Meteorology, 263: 118-129. DOI: 10.1016/j.agrformet.2018.08.010.
doi: 10.1016/j.agrformet.2018.08.010
Yao YB, Xiao GJ, Wang RY, et al., 2009. Climatic changes of semi-arid region over the northwest China in recent 50a. Arid Land Geography, 32(2): 159-165. DOI: 10.3724/SP.J.1224.2009.00159.
doi: 10.3724/SP.J.1224.2009.00159
Zeng Y, Qiu XF, Liu CM, et al., 2007. Changes of pan evaporation in China in 1960-2000. Advances in Water Science, 18(3): 311-318. DOI: 10.3321/j.issn:1001-6791.2007.03.001.
doi: 10.3321/j.issn:1001-6791.2007.03.001
Zhai LX, Feng Q, 2011. Dryness/wetness climate variation based on standardized precipitation index in Northwest China. Journal of Natural Resources, 26(5): 847-857. DOI: 10.11849/zrzyxb.2011.05.012.
doi: 10.11849/zrzyxb.2011.05.012
Zhang CQ, Li Y, 2016. Verification of watershed vegetation restoration policies, arid China. Scientific Reports, 6: 30740. DOI: 10.1038/srep30740.
doi: 10.1038/srep30740
Zhang JB, Shi YG, 2002. Climate Change and Short-term Climate Forecasting Research in Xinjiang. Beijing: Meteorology Press, pp. 29.
Zhang LY, Pang B, Xu ZX, et al., 2014. Impact of climate change and LUCC on hydrological processes in the Gulang River Basin. South to North Water Transferd and Water Science & Technology, 12(1): 42-46. DOI: 10.3724/SP.J.1201.2014.01042.
doi: 10.3724/SP.J.1201.2014.01042
Zhang Q, Jiang T, Gemmer M, et al., 2005. Precipitation, temperature and runoff analysis from 1950 to 2002 in the Yangtze basin, China. Hydrological Sciences Journal, 50(1): 62-80. DOI: 10.1623/hysj.
doi: 10.1623/hysj.
Zhou JJ, Shi PJ, Shi W, 2012. Temporal and spatial characteristics of climate change and extreme dry and wet events in Shiyang River Basin from 1960 to 2009. Journal of Natural Resources, 27(1): 143-153. DOI: 10.11849/zrzyxb. 2012. 01.015.
doi: 10.11849/zrzyxb. 2012. 01.015
