Triaxial test on glass beads simulating coarse-grained soil

WenDong Xu1,2,3,XueFeng Li2,4(),WenWei Yang1,3,HongJin Jia4

  1. 1.School of Civil and Hydraulic Engineering, Ningxia University, Yinchuan, Ningxia 750021, China
    2.Solid Mechanics Institute, Ningxia University, Yinchuan, Ningxia 750021, China
    3.Ningxia Center for Research on Earthquake Protection and Disaster Mitigation in Civil Engineering, Yinchuan, Ningxia 750021, China
    4.School of Physics and Electronic-Electrical Engineering, Ningxia University, Yinchuan, Ningxia 750021, China
  • Received:2021-09-30 Accepted:2022-01-13 Online:2022-08-31 Published:2022-09-30
  • Contact: XueFeng Li E-mail:lixuefeng1928@163.com
  • Supported by:
    the National Natural Science Foundation of China(1216020092);the Projects for Leading Talents of Science and Technology Innovation of Ningxia(KJT2019001);the innovation team for multi-scale mechanics and its engineering applications of Ningxia Hui Autonomous Region,and these supports are gratefully acknowledged

Abstract:

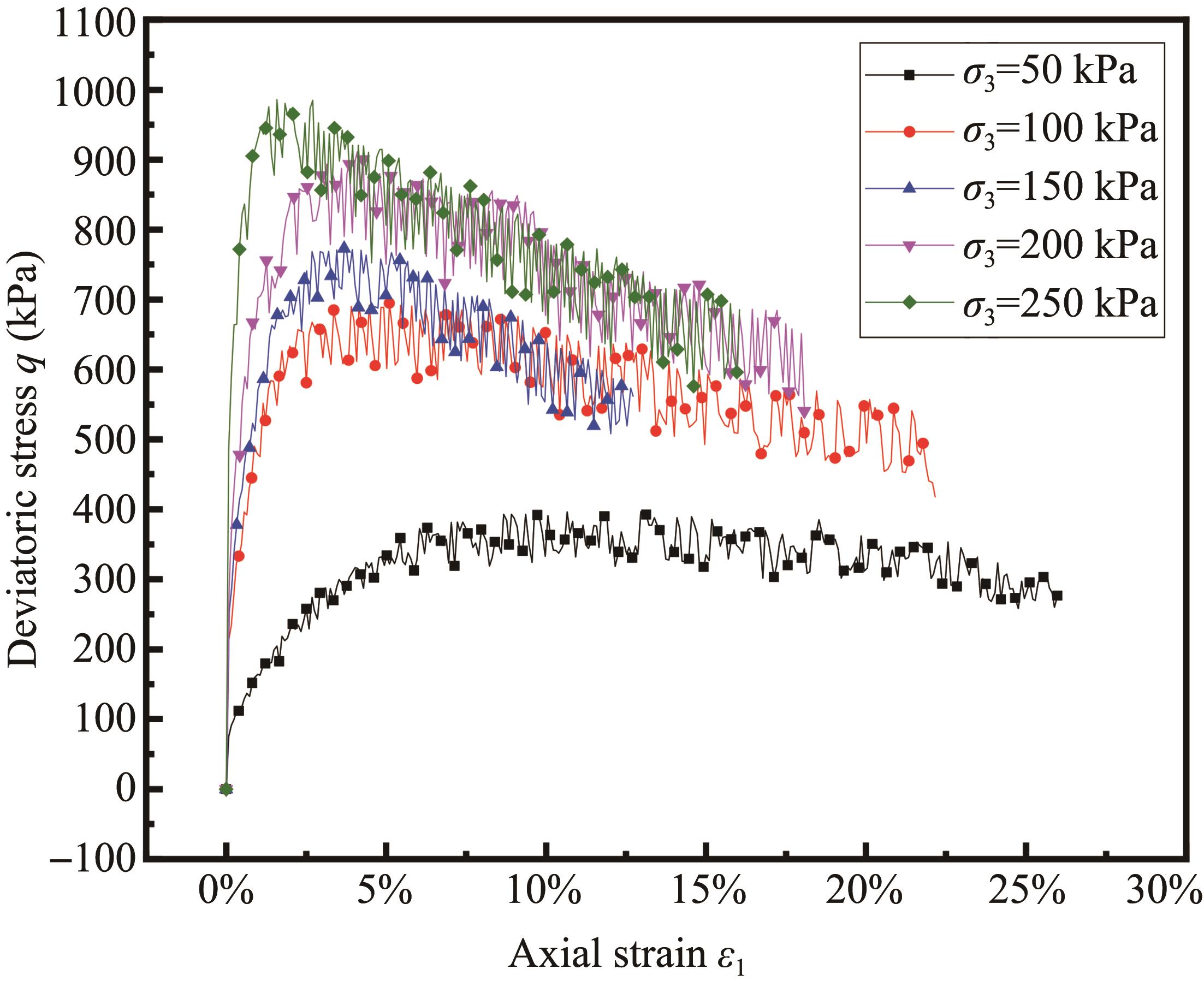

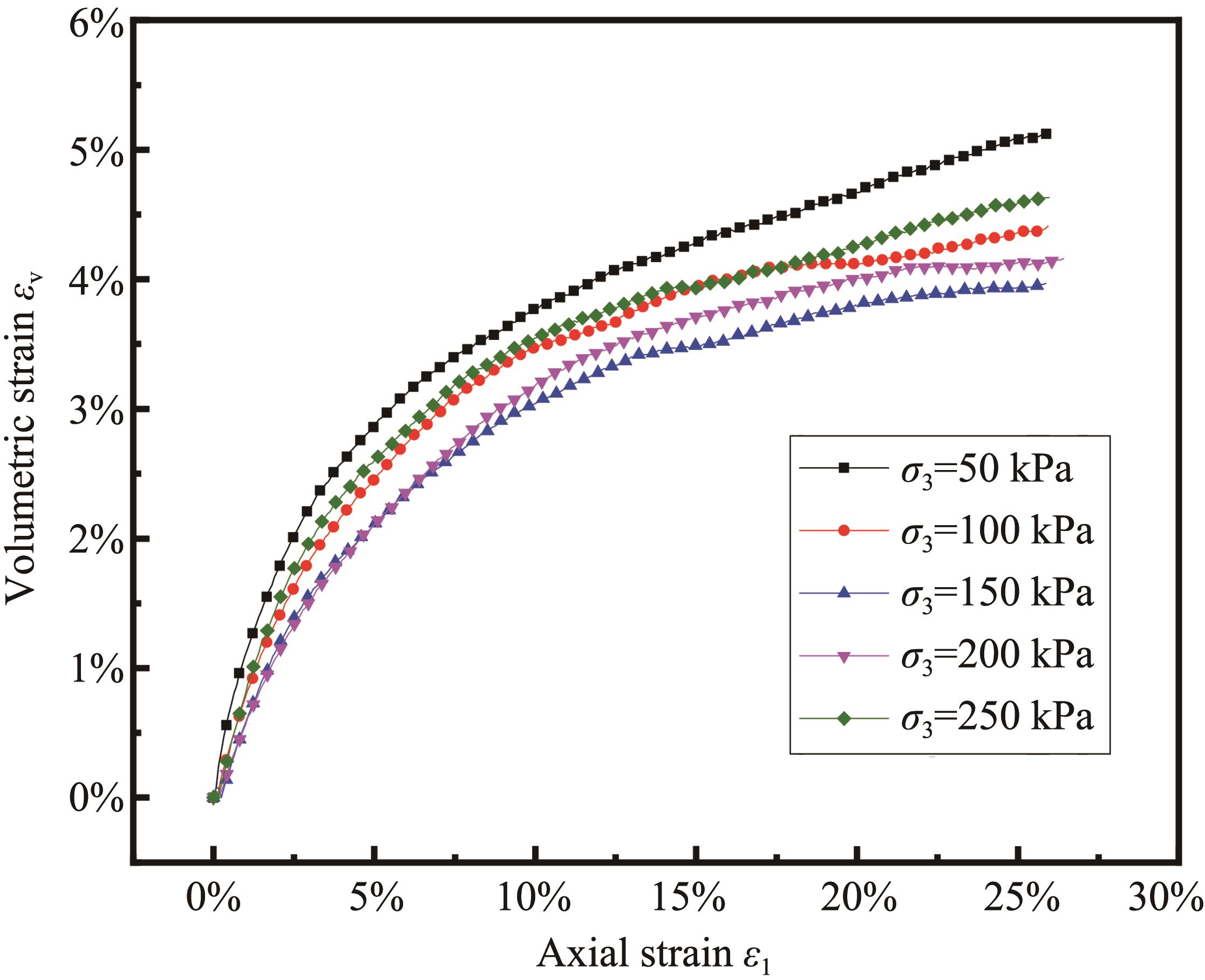

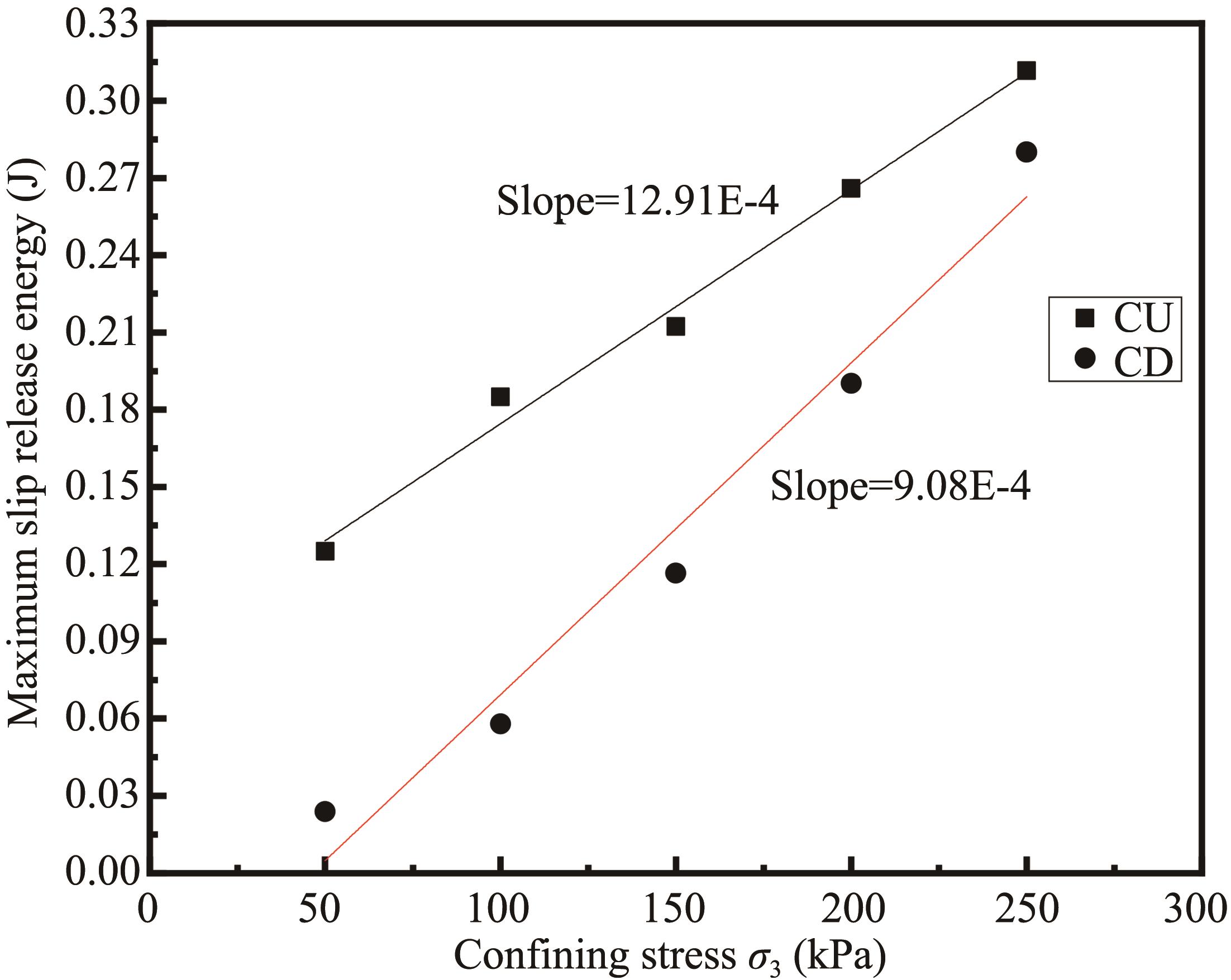

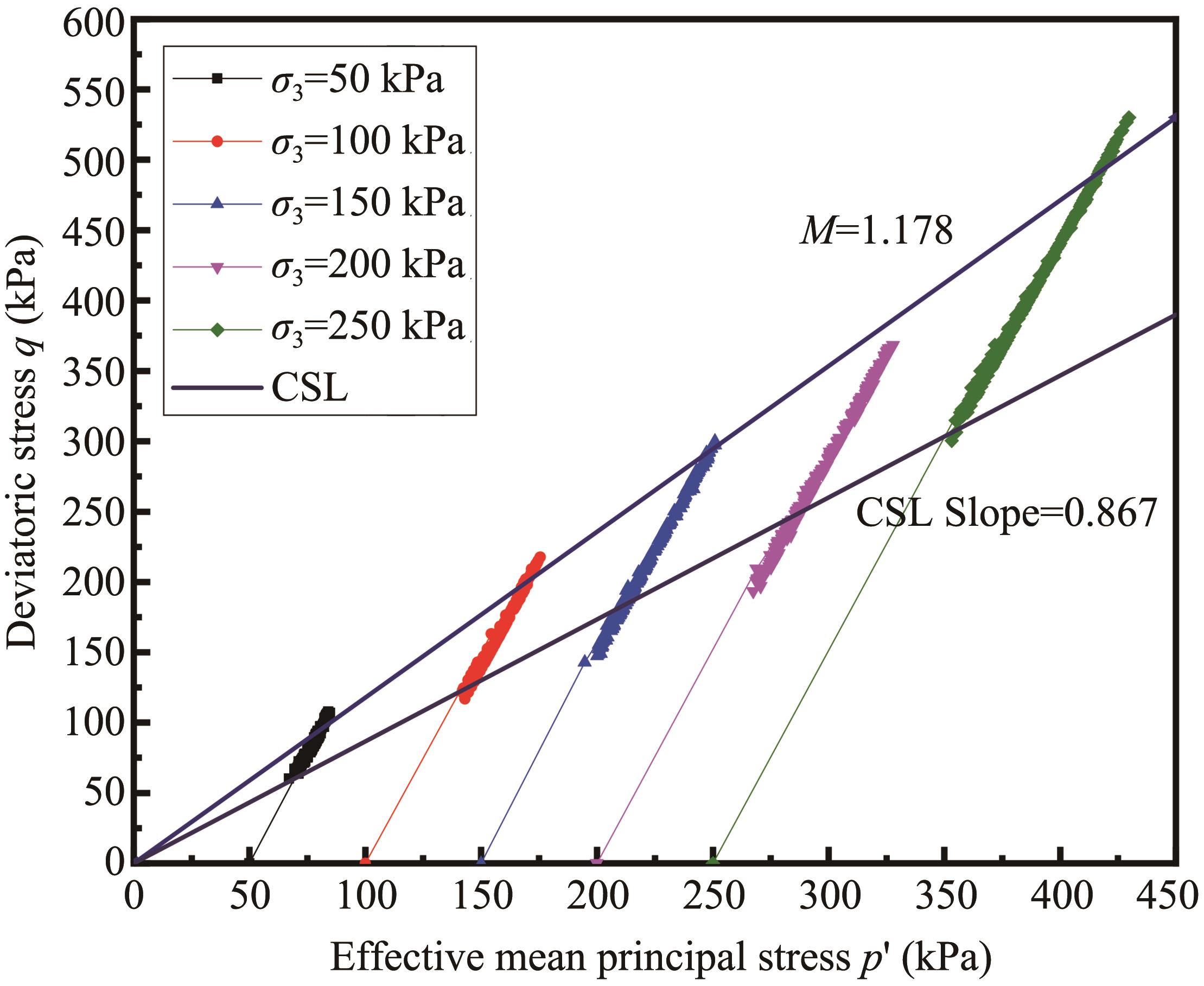

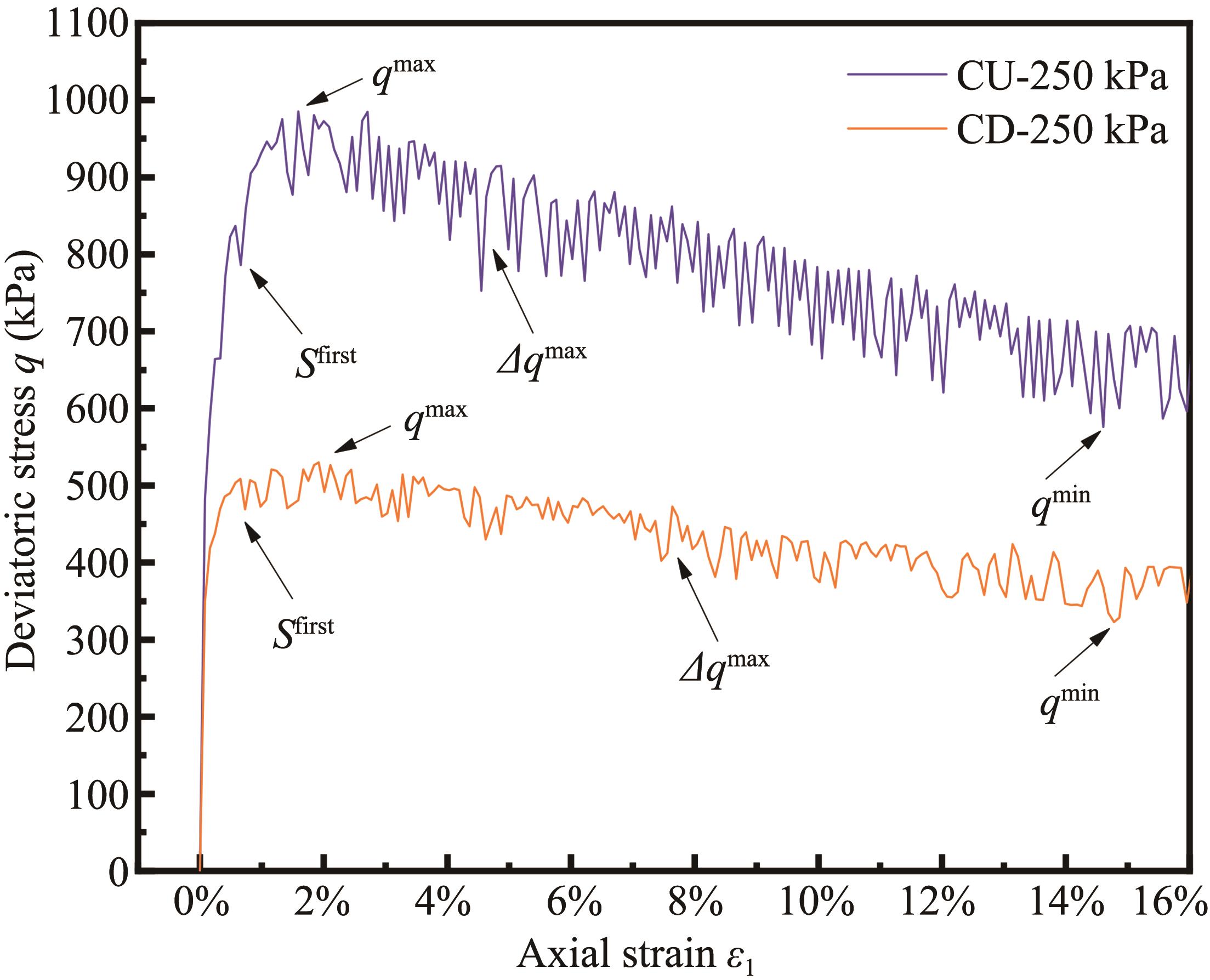

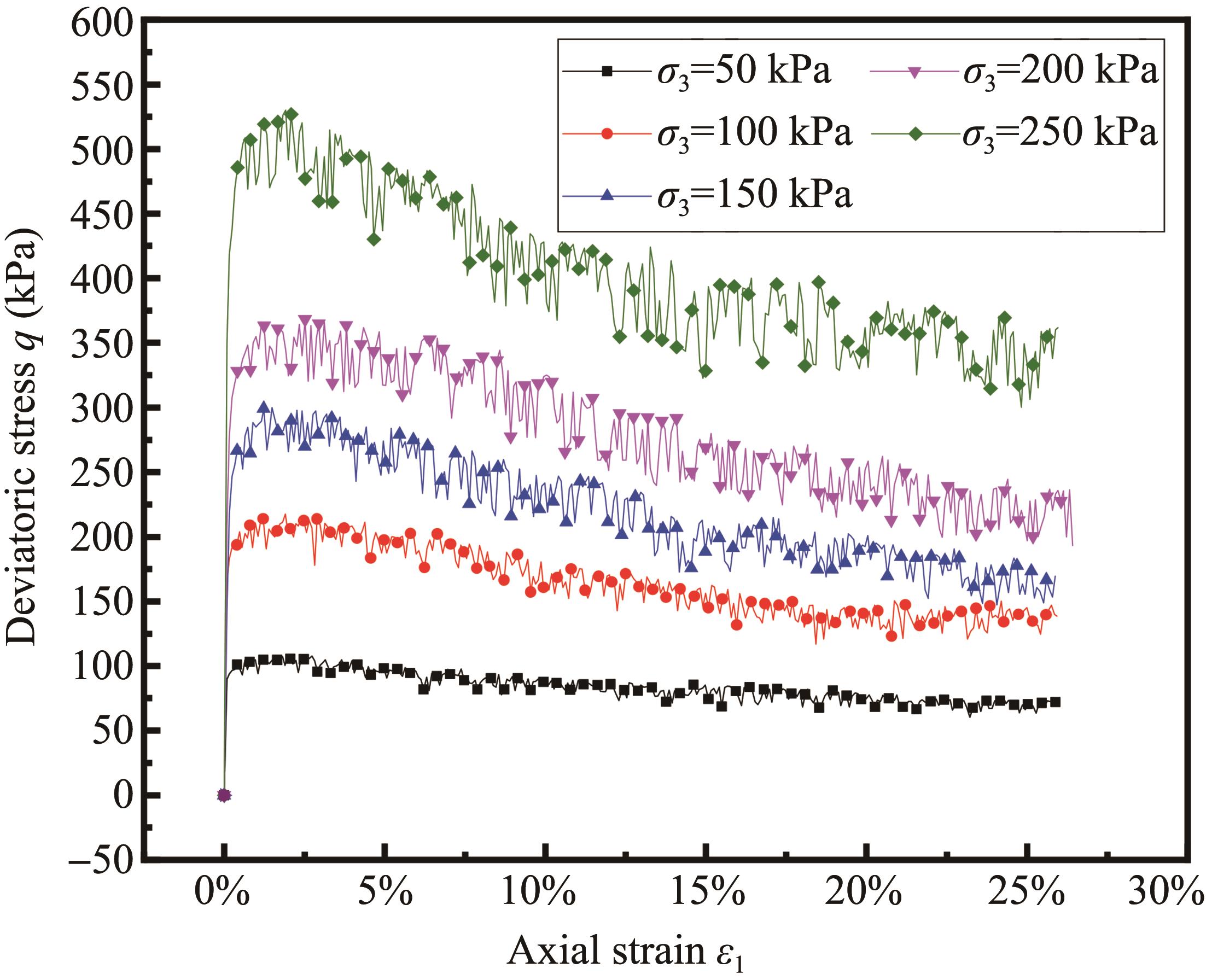

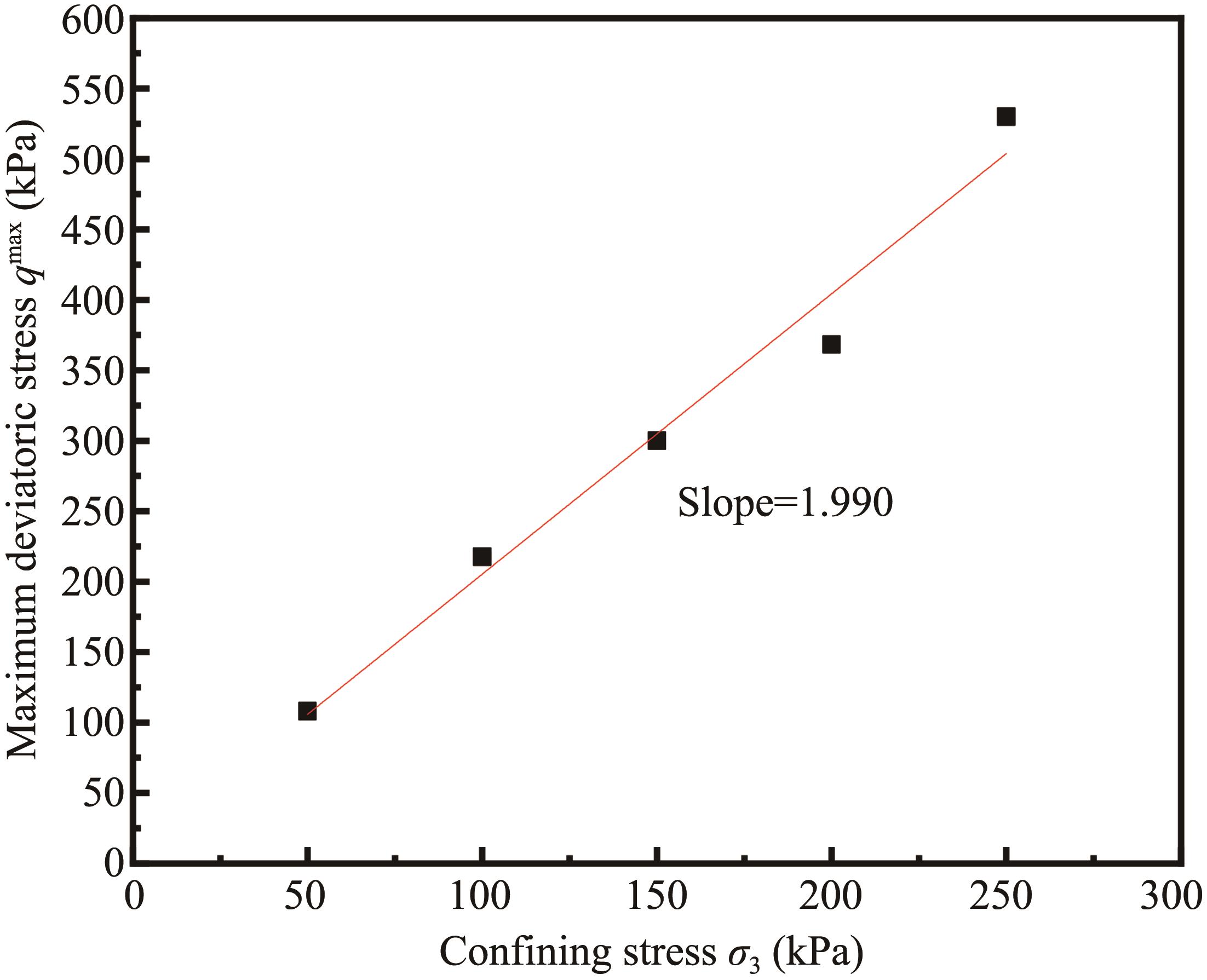

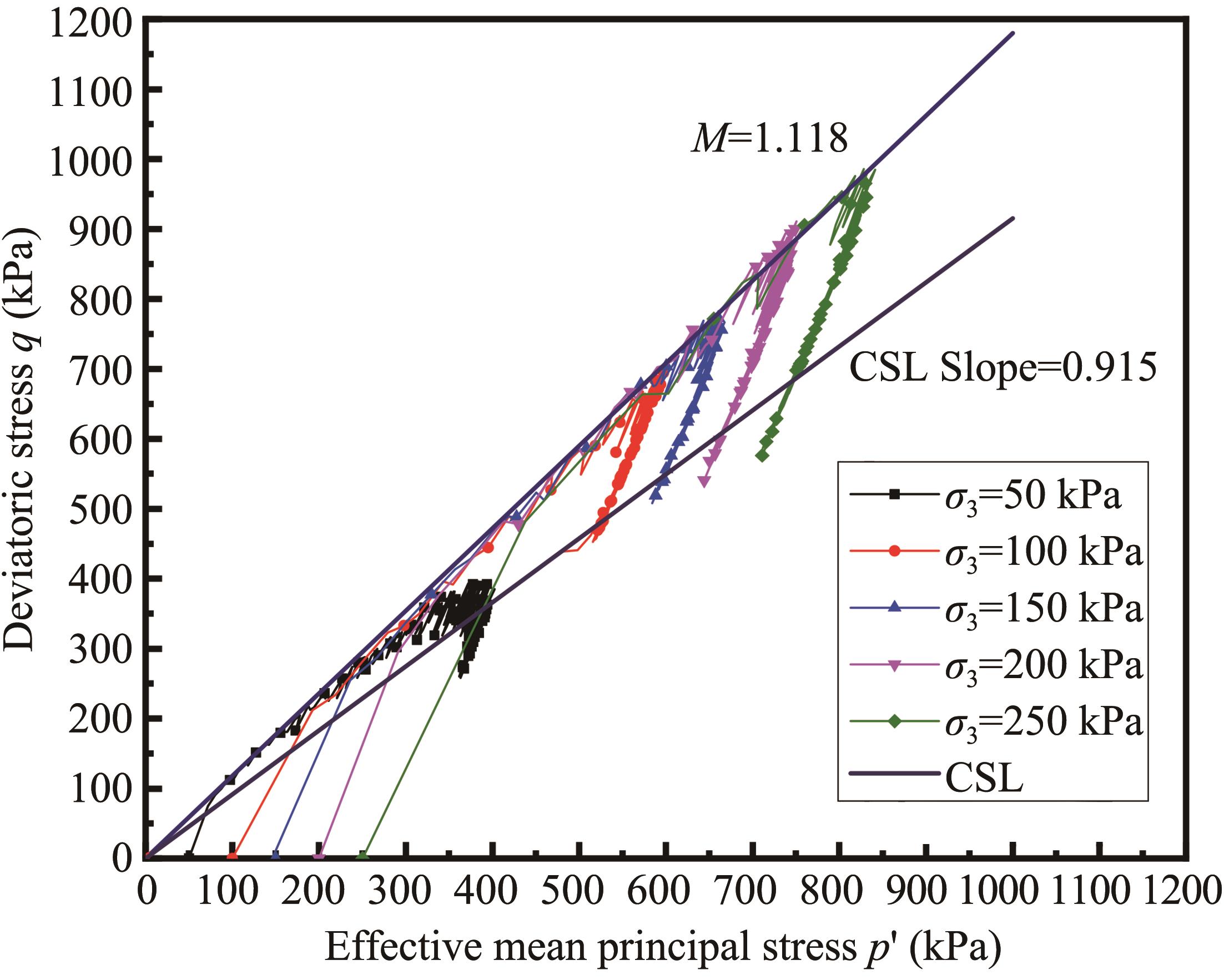

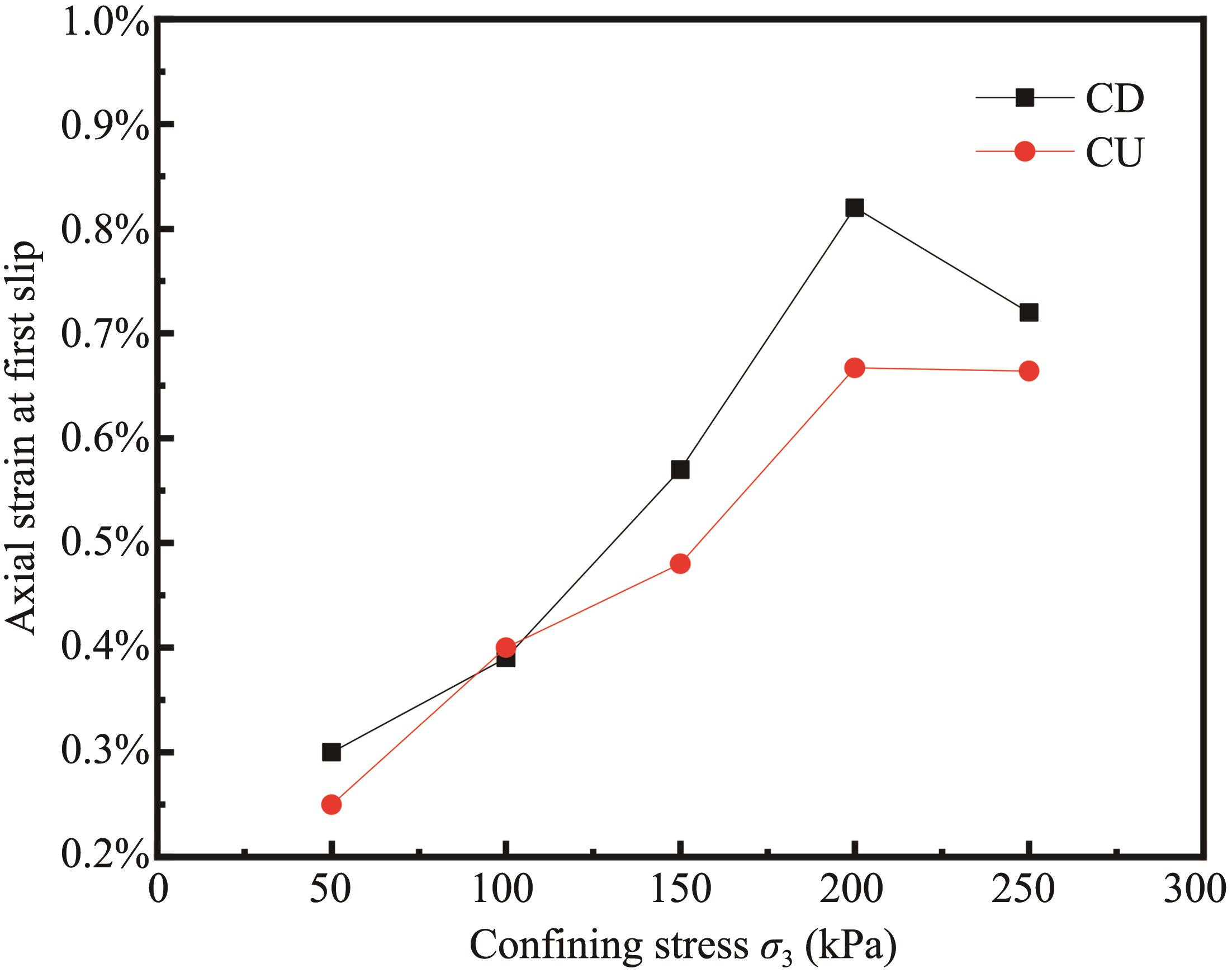

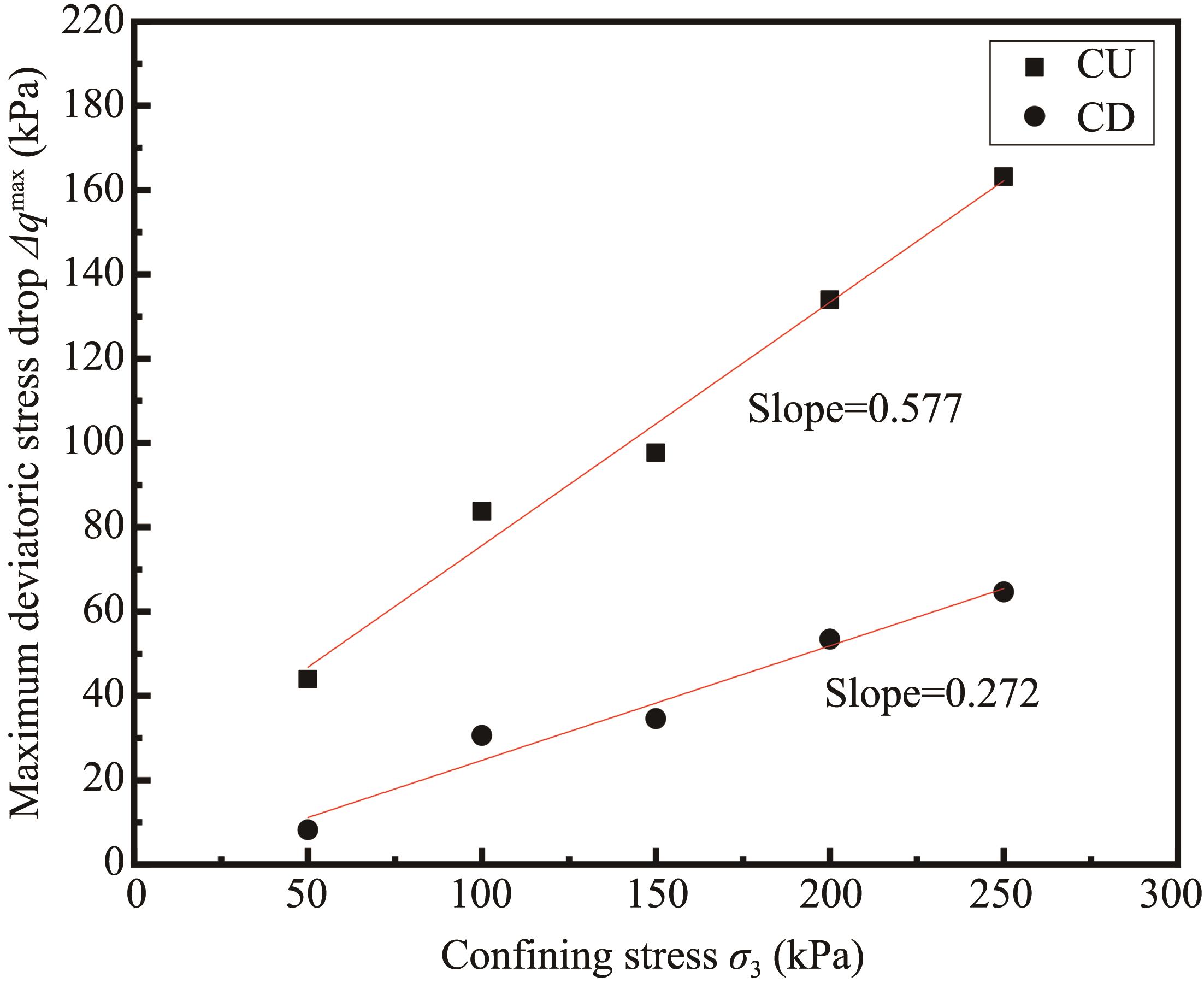

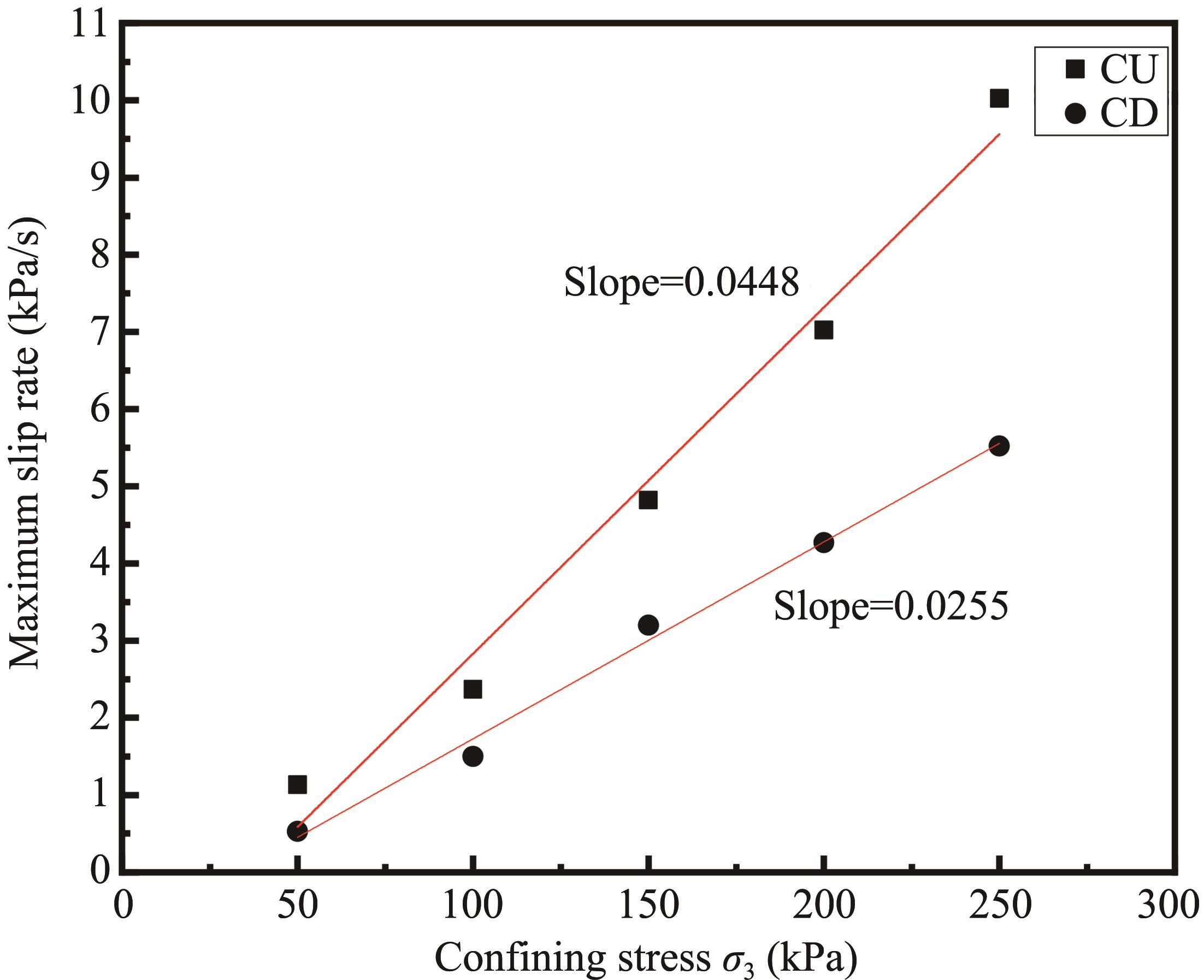

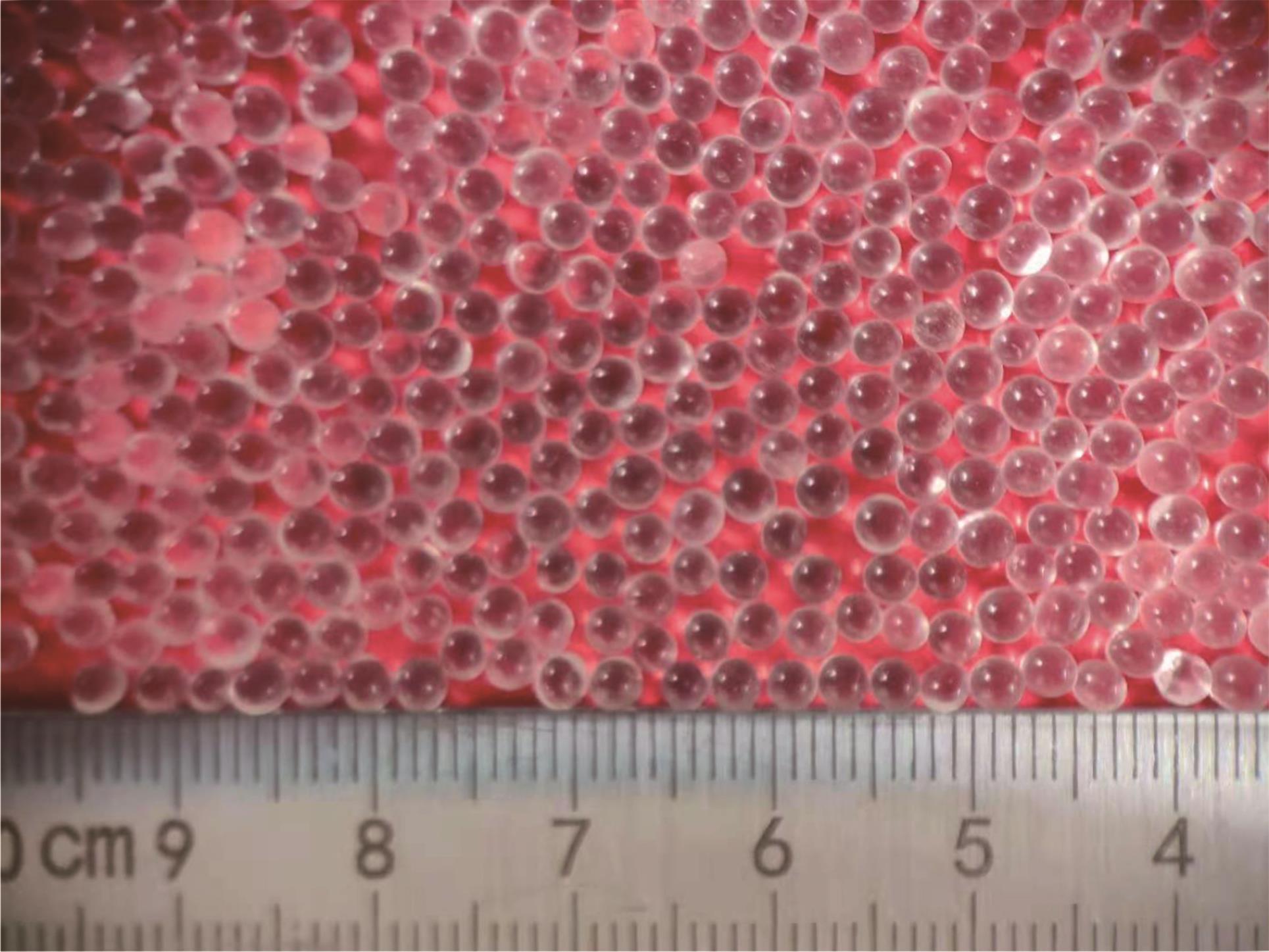

It is feasible to study the mechanical characteristics of coarse-grained soil by simulated granular materials such as glass beads. In this paper, 3 mm diameter glass beads are used to conduct drained and undrained triaxial tests under the condition of different confining pressures to explore their strength, deformation and critical state characteristics. Specifically, the influence of drainage and confining pressure on the stick-slip phenomenon of glass beads is reported. The experimental findings from triaxial tests show that the stress-strain relationship of glass beads softens when the confining pressure is high. Under the undrained condition, the initial modulus increases with the increase in the confining pressure. In contrast, it is not significantly affected by the confining pressure under the drained condition. It is quite evident that the glass beads hardly contract during the shearing process, and their stress path is approximately a segmented straight line. The slope of the critical state line under the undrained condition is greater than that under the drained condition, and the friction angle of the glass beads under the undrained and drained conditions is calculated to be 28.1° and 29.5°, respectively. The phenomenon of stick-slip has been depicted for the different test conditions, and the stick-slip amplitude linearly increases with the confining pressure, especially in the undrained condition. It is also found that the maximum energy released from the phenomenon of stick-slip increases linearly with the confining pressure.

Key words: triaxial test, glass beads, strength, critical state, stick-slip

"

"

Specific gravity, Gs

Young's modulus

(GPa)

Void ratio
MaxMin
2.67650.910.34

"

"

"

"

"

"

"

"

"

"

"

"

"

"

Adjemian F, Evesque P, 2004. Experimental study of stick-slip behavior. International Journal for Numerical and Analytical Methods in Geomechanics, 28(6): 501-530. DOI: 10. 1002/nag.350 .
doi: 10. 1002/nag.350
Alshibli KA, Roussel LE, 2006. Experimental investigation of slip‐stick behavior in granular materials. International Journal for Numerical and Analytical Methods in Geomechanics, 30(14): 1391-1407. DOI: 10.1002/nag.517 .
doi: 10.1002/nag.517
Brace WF, Byerlee JD, 1966. Stick-slip as a mechanism for earthquakes. Science, 153(3739): 990-992. DOI: 10.1126/science.153.3739.990 .
doi: 10.1126/science.153.3739.990
Cavarretta I, Coop M, O'Sullivan C, 2010. The influence of particle characteristics on the behavior of coarse grained soils. Géotechnique, 60(6): 413-423. DOI: 10.1680/geot. 2010.60.6.413 .
doi: 10.1680/geot. 2010.60.6.413
Cheng ZL, Ding HS, Wu LP, 2007. Experimental study on mechanical behavior of granular material. Chinese Journal of Geotechnical Engineering, 29(8): 1151-1158.
Cui D, Wu W, Xiang W, et al., 2017. Stick-slip behaviors of dry glass beads in triaxial compression. Granular Matter, 19(1): 1-18. DOI: 10.1007/s10035-016-0682-5 .
doi: 10.1007/s10035-016-0682-5
Doanh T, Hoang MT, Roux JN, et al., 2013. Stick-slip behavior of model granular materials in drained triaxial compression. Granular Matter, 15(1): 1-23. DOI: 10.1007/s10035-012-0384-6 .
doi: 10.1007/s10035-012-0384-6
Dondi G, Simone A, Vignali V, et al., 2012. Numerical and experimental study of granular mixes for asphalts. Powder Technology, 232: 31-40. DOI: 10.1016/j.powtec.2012. 07.057 .
doi: 10.1016/j.powtec.2012. 07.057
Haruyama M, 1981. Anisotropic deformation-strength characteristics of an assembly of spherical particles under three dimensional stresses. Soils and Foundations, 21(4): 41-55. DOI: 10.3208/sandf1972.21.4_41 .
doi: 10.3208/sandf1972.21.4_41
Hassanpour A, Ding Y, Ghadiri M, 2004. Shear deformation of binary mixtures of dry particulate solids. Advanced Powder Technology, 15(6): 687-697. DOI: 10.1163/1568552042456214 .
doi: 10.1163/1568552042456214
Jiang MJ, 2019. New paradigm for modern soil mechanics: Geomechanics from micro to macro. Chinese Journal of Geotechnical Engineering, 41(2): 195-254. DOI: 10.11779/CJGE201902001 .
doi: 10.11779/CJGE201902001
Kong DZ, Zhang BY, Sun X, 2010. Triaxial tests on artificial rockfill materials of steel balls. Journal of Hydroelectric Engineering, 29(2): 210-215, 221.
Ladd RS, 1978. Preparing test specimens using undercompaction. Geotechnical Testing Journal, 1(1): 16-23. DOI:10. 1520/GTJ10364J .
doi: 10. 1520/GTJ10364J
Li G, Liu YJ, Yin ZY, et al, 2014. Grading effect on critical state behavior of granular materials. Chinese Journal of Geotechnical Engineering, 36(3): 452-457. DOI: 10.11779/CJGE201403007 .
doi: 10.11779/CJGE201403007
Ozbay A, Cabalar AF, 2016. Effects of triaxial confining pressure and strain rate on stick-slip behavior of a dry granular material. Granular Matter, 18(3): 1-9. DOI: 10.1007/s10035-016-0664-7 .
doi: 10.1007/s10035-016-0664-7
Takei M, Kusakabe O, Hayashi T, 2001. Time-dependent behavior of crushable materials in one-dimensional compression tests. Soils and Foundations, 41(1): 97-121. DOI: 10. 3208/sandf.41.97 .
doi: 10. 3208/sandf.41.97
Tang H, Zhang X, Ji S, 2017. Discrete element analysis for shear band modes of granular materials in triaxial tests. Particulate Science and Technology, 35(3): 277-290. DOI: 10. 1080/02726351.2016.1153547 .
doi: 10. 1080/02726351.2016.1153547
Wu K, Abriak NE, Becquart F, et al., 2017. Shear mechanical behavior of model materials samples by experimental triaxial tests: case study of 4 mm diameter glass beads. Granular Matter, 19(4): 1-12. DOI: 10.1007/s10035-017-0753-2 .
doi: 10.1007/s10035-017-0753-2
Wu K, Pizette P, Becquart F, et al., 2017. Experimental and numerical study of cylindrical triaxial test on mono-sized glass beads under quasi-static loading condition. Advanced Powder Technology, 28(1): 155-166. DOI: 10.1016/j.apt. 2016.09.006 .
doi: 10.1016/j.apt. 2016.09.006
Wu K, Remond S, Abriak NE, et al., 2017. Study of the shear behavior of binary granular materials by DEM simulations and experimental triaxial tests. Advanced Powder Technology, 28(9): 2198-2210. DOI: 10.1016/j.apt.2017.05.027 .
doi: 10.1016/j.apt.2017.05.027
Zhou W, Xu K, Ma G, et al., 2016. Effects of particle size ratio on the macro-and microscopic behaviors of binary mixtures at the maximum packing efficiency state. Granular Matter, 18(4): 1-13. DOI: 10.1007/s10035-016-0678-1 .
doi: 10.1007/s10035-016-0678-1
