Sciences in Cold and Arid Regions ›› 2021, Vol. 13 ›› Issue (4): 314-325.doi: 10.3724/SP.J.1226.2021.20038.

Previous Articles

Application of geodetector in sensitivity analysis of reference crop evapotranspiration spatial changes in Northwest China

WenJu Cheng1,2,3,HaiYang Xi1,2(),Sindikubwabo Celestin1,2,3

  1. 1.Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou, Gansu 730000, China
    2.Key Laboratory of Eco-Hydrology of Inland River Basin, Chinese Academy of Sciences, Lanzhou, Gansu 730000, China
    3.University of Chinese Academy of Science, Beijing 100049, China
  • Received:2020-06-26 Accepted:2020-10-22 Online:2021-08-31 Published:2021-08-19
  • Contact: HaiYang Xi E-mail:xihy@lzb.ac.cn
  • Supported by:
    the Inner Mongolia Key Research and Development program(zdzx2018057);the National Key Research and Development Program(2016YFC0400908)

RichHTML

19

PDF (PC)

308

Abstract:

Reference crop evapotranspiration (ET0) is an important parameter in the research of farmland irrigation management, crop water demand estimation and water balance in scarce data areas, therefore, it is very important to study the factors affecting the spatial variation of ET0. In this paper, the Penman-Monteith formula was used to calculate ET0 which is the dependent variable of elevation (Elev), daily maximum temperature (Tmax), daily minimum temperature (Tmin), daily average temperature (Tmean), wind speed (U2), sunshine duration (SD) and relative humidity (RH). The sensitivity analysis of ET0 was performed using a Geodetector method based on spatial stratified heterogeneity. The applicability of Geodetector in sensitivity analysis of ET0 was verified by comparing it with existing research results. Results show that RH, Tmax, SD, and Tmean are the main factors affecting ET0 in Northwest China, and RH has the best explanatory power for the spatial distribution of ET0. Geodetector has a unique advantage in sensitivity analysis, because it can analyze the synergistic effect of two factors on the change of ET0. The interactive detector of Geodetector revealed that the synergistic effect of RH and Tmean on ET0 is very significant, and can explain 89% of the spatial variation of ET0. This research provides a new method for sensitivity analysis of ET0 changes.

Key words: reference crop evapotranspiration, Penman-Monteith, geodetector, sensitivity analysis, northwest China

Figure 1

Spatial distribution of 177 meteorological stations and location of study area"

Table 1

Types of interaction between two covariates"

DescriptionInteraction
q(X1∩X2)< Min(q(X1), q(X2))Weakened, nonlinear
Min(q(X1), q(X2))< q(X1∩X2)< Max(q(X1), q(X2))Weakened, single factor nonlinear
q(X1∩X2)> Max(q(X1), q(X2))Enhanced, double factors
q(X1∩X2) = q(X1) + q(X2)Independent
q(X1∩X2)> q(X1) + q(X2)Enhanced, nonlinear

Figure 2

Flow chart of sensitivity research on ET0 spatial change"

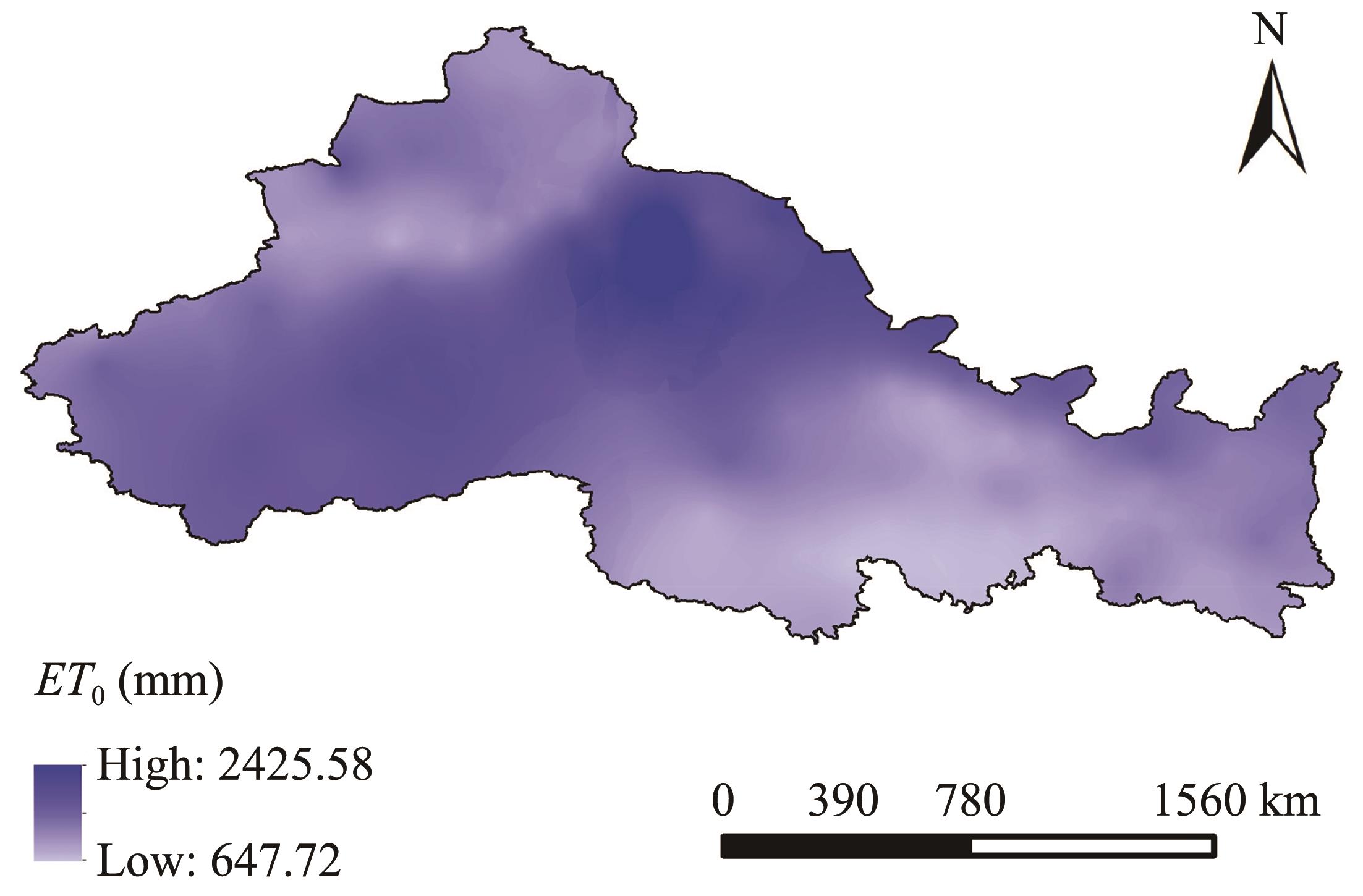

Figure 3

Difference in spatial variation of ET0"

Figure 4

Strata information and spatial distribution of natural factors"

Table 2

The explanatory power of each factor on the spatial change of ET0"

ElevU2TminTmeanTmaxRHSD
q statistic0.2630.3040.2740.3130.3550.4740.324
p value0.0000.0000.0000.0000.0000.0000.999

Table 3

Result of interaction detection"

ElevTmaxTminTmeanSDRHU2
Elev0.263
Tmax0.4070.304
Tmin0.3920.3810.274
Tmean0.3700.3550.3490.313
SD0.6600.6830.8260.7490.355
RH0.8430.7810.8630.8930.5860.474
U20.6720.8070.7510.7810.6310.7290.324

Table 4

Results of ecological detection"

ElevTmaxTminTmeanSDRHU2
Elev
TmaxN
TminNN
TmeanNNN
SDNNNN
RHYYYYY
U2NNNNNY

Table 5

Recent studies on factors affecting spatial and temporal changes of ET0 in Northwest China or some regions in China"

Research regionDependent variableDominant variableReferences
Northwest ChinaET0U2, RH and TmaxThomas, 2000
Northwest ChinaET0U2Yin et al., 2010
ChinaET0Tmax, RH, and U2Zhang et al., 2019
Shiyang River BasinET0vegetation decreasesLiu et al., 2019
Northwest ChinaET0U2 and TmeanLiu and Zhang, 2013
Loess PlateauET0Tmean, U2, RsLi et al., 2016
Loess PlateauET0ea, Rs, TmeanNing et al., 2017
Northwest ChinaET0U2Li et al., 2014
Northern Loess Plateau of ChinaET0U2 and TmeanNing et al., 2016
Yangtze River basinET0RH, Rns, Tmean and U2Gong et al., 2006
Bosten Lake BasinET0U2 and RnZhong et al., 2019
Northwest ChinaET0RH and U2Zhao et al., 2018
ChinaET0NDVI, Tmax, Tmean, TminZhang et al., 2019
Northwest ChinaET0RH, temperature, U2 an SDThis paper

Figure 5

Schematic diagram of interaction detection (Wang and Xu, 2017)Notes： first， calculate the q(X1) and q(X2) respectively， then overlay the X1 and X2 layers to obtain a new layer X1∩X2 and calculate q(X1∩X2)， finally， we can judge the interaction type of the two factors according to Table 1"

Allen RG, Pereira LS, Raes D, et al., 1998. Crop evapotranspiration-guidelines for compting crop water requirements. FAO irrigation and drainage paper No. 56, Rome.
Arora P, Deepali, Shipra V, 2016. Analysis of k-means and k-medoids algorithm for big data. Procedia Computer Science, 78: 507-512. DOI: 10.1016/j.procs.2016.02.095.
doi: 10.1016/j.procs.2016.02.095
Chou JM, Xu Y, Dong WJ, et al., 2019. Research on the variation characteristics of climatic elements from April to September in China's main grain-producing areas. Theoretical and Applied Climatology, 137(3-4): 3197-3207. DOI: 10. 1007/s00704-019-02795-y.
doi: 10. 1007/s00704-019-02795-y
Fei XF, Wu JP, Liu QM, et al., 2015 Spatiotemporal analysis and risk assessment of thyroid cancer in Hangzhou, China. Stochastic Environmental Research and Risk Assessment, 30(8): 2155-2168. DOI: 10.1007/s00477-015-1123-4.
doi: 10.1007/s00477-015-1123-4
Gong LB, Xu CY, Chen DL, et al., 2006. Sensitivity of the Penman-Monteith reference evapotranspiration to key climatic variables in the Changjiang (Yangtze River) basin. Journal of Hydrology, 329(3-4): 620-629. DOI: 10.1016/j.jhydrol. 2006.03.027.
doi: 10.1016/j.jhydrol. 2006.03.027
Han JY, Zhao Y, Wang JH, et al., 2019. Effects of different land use types on potential evapotranspiration in the Beijing-Tianjin-Hebei region, North China. Journal of Geographical Sciences, 29(6): 922-934. DOI: 10.1007/s11442-019-1637-7.
doi: 10.1007/s11442-019-1637-7
Hu Y, Wang JF, Li XH, et al., 2011. Geographical detector-based risk assessment of the under-five mortality in the 2008 Wenchuan earthquake, China. PLoS One, 6(6): e21427. DOI: 10.1371/journal.pone.0021427.
doi: 10.1371/journal.pone.0021427
Li C, Wu PT, Li XL, et al., 2017. Spatial and temporal evolution of climatic factors and its impacts on potential evapotranspiration in Loess Plateau of Northern Shaanxi, China. Science of the Total Environment, 589: 165-172. DOI: 10.1016/j.scitotenv.2017.02.122.
doi: 10.1016/j.scitotenv.2017.02.122
Li JM, Han XL, Zhang XX, et al., 2019. Spatiotemporal evolution of global population ageing from 1960 to 2017. BMC Public Health, 19(127): 1-15. DOI: 10.1186/s12889-019-6465-2.
doi: 10.1186/s12889-019-6465-2
Li JM, Lu DD, Xu CD, et al., 2017. Spatial heterogeneity and its changes of population on the two sides of Hu Line. Acta Geographica Sinica, 72(1): 148-160.
Li YF, Zhan LX, Cao YQ, et al., 2019. Spatiotemporal variations of potential evapotranspiration and its climate influencing factors in Hebei Province. South-to-North Water Transfers and Water Science & Technology, 17(3): 1-14. DOI: 10.13476/j.cnki.nsbdqk.2019.0061.
doi: 10.13476/j.cnki.nsbdqk.2019.0061
Li YJ, Wei X, Su HD, 2015. Quantitative analysis of causes for temporal and spatial variation characteristics and evolution of potential evapotranspiration in Gansu Province during recent 30 years. Journal of Water Resources & Water Engineering, 26(1): 219-225.
Li YZ, Liang K, Bai P, et al., 2016. The spatiotemporal variation of reference evapotranspiration and the contribution of its climatic factors in the Loess Plateau, China. Environmental Earth Sciences, 75(4): 1-14. DOI: 10.1007/s12665-015-5208-7.
doi: 10.1007/s12665-015-5208-7
Li Z, Chen YN, Yang J, et al., 2014. Potential evapotranspiration and its attribution over the past 50 years in the arid region of Northwest China. Hydrological Processes, 28(3): 1025-1031. DOI: 10.1002/hyp.9643.
doi: 10.1002/hyp.9643
Liang P, Yang XP, 2016. Landscape spatial patterns in the Maowusu (Mu Us) Sandy Land, northern China and their impact factors. Catena, 145: 321-333. DOI: 10.1016/j.catena.2016.06.023.
doi: 10.1016/j.catena.2016.06.023
Lin PF, He ZB, Du J, et al., 2018. Impacts of climate change on reference evapotranspiration in the Qilian Mountains of China: Historical trends and projected changes. International Journal of Climatology, 38(7): 2980-2993. DOI: 10. 1002/joc.5477.
doi: 10. 1002/joc.5477
Liu CM, Zhang D, 2011. Temporal and spatial change analysis of the sensitivity of potential evapotranspiration to meteorological influencing factors in China. Acta Geographica Sinica, 66(5): 579-588.
Liu JF, Xiong YJ, Tian JL, et al., 2019. Spatiotemporal changes in evapotranspiration from an overexploited water resources basin in Arid Northern China and their implications for ecosystem management. Sustainability, 11(2): 1-13. DOI: 10.3390/su11020445.
doi: 10.3390/su11020445
Liu XM, Zhang D, 2013. Trend analysis of reference evapotranspiration in Northwest China: the roles of changing wind speed and surface air temperature. Hydrological Processes, 27(26): 3941-3948. DOI: 10.1002/hyp.9527.
doi: 10.1002/hyp.9527
Ning TT, Li Z, Liu WZ, et al., 2016. Evolution of potential evapotranspiration in the northern Loess Plateau of China: recent trends and climatic drivers. International Journal of Climatology, 36(12): 4019-4028. DOI: 10.1002/joc.4611.
doi: 10.1002/joc.4611
Ning TT, 2017. The Spatiotemporal Variability of Catchment Evapotranspiration and Its Attribution Analysis in the Loess Plateau under the Budyko Framework. Research Center of Soil and Water Conservation and Ecological Environment, Chinese Academy of Sciences and Ministry of Education.
Ren XD, Martins DS, Qu ZY, et al., 2016. Daily reference evapotranspiration for Hyper-Arid to Moist Sub-Humid Climates in Inner Mongolia, China: II. Trends of ET0 and weather variables and related spatial patterns. Water Resource Management, 30(11): 3793-3814. DOI: 10.1007/s11269-016-1385-8.
doi: 10.1007/s11269-016-1385-8
Ren Y, Deng LY, Zuo SD, et al., 2016. Quantifying the influences of various ecological factors on land surface temperature of urban forests. Environmental Pollution, 216: 519-529. DOI: 10.1016/j.envpol.2016.06.004.
doi: 10.1016/j.envpol.2016.06.004
Sentelhas PC, Gillespie TJ, Santos EA, 2010. Evaluation of FAO Penman-Monteith and alternative methods for estimating reference evapotranspiration with missing data in Southern Ontario, Canada. Agricultural Water Management, 97(5): 635-644. DOI: 10.1016/j.agwat.2009.12.001.
doi: 10.1016/j.agwat.2009.12.001
Shan N, Shi ZJ, Yang XH, et al., 2016. Trends in potential evapotranspiration from 1960 to 2013 for a desertification-prone region of China. International Journal of Climatology, 36(10): 3434-3445. DOI: 10.1002/joc.4566.
doi: 10.1002/joc.4566
Shen J, Zhang N, Gexigeduren, et al., 2015. Construction of a Geodetector-based model system to indicate the potential occurrence of grasshoppers in Inner Mongolia steppe habitats. Bulletin of Entomological Research, 105(3): 335-346. DOI: 10.1017/S0007485315000152.
doi: 10.1017/S0007485315000152
Srivastava PK, Han D, Rico-Ramirez MA, et al., 2014. Sensitivity and uncertainty analysis of mesoscale model downscaled hydrometeorological variables for discharge prediction. Hydrol Process, 28(15): 4419-4432. DOI: 10.1002/hyp.9946.
doi: 10.1002/hyp.9946
Thomas A, 2000. Spatial and temporal characteristics of potential evapotranspiration trends over China. International Journal of Climatology, 20(4): 381-396. DOI: 10.1002/(SICI)1097-0088(20000330)20:4<381::AID-JOC477>3.0.CO;2-K.
doi: 10.1002/(SICI)1097-0088(20000330)20:4<381::AID-JOC477>3.0.CO;2-K
Wang H, Gao JB, Hou WJ, 2019. Quantitative attribution analysis of soil erosion in different geomorphological types in karst areas: Based on the Geodetector method. Journal of Geographical Sciences, 29(2): 271-286. DOI: 10.1007/s11442-019-1596-z.
doi: 10.1007/s11442-019-1596-z
Wang JF, Hu Y, 2012. Environmental health risk detection with geodetector. Environmental Modelling & Software, 33: 114-115. DOI: 10.1016/j.envsoft.2012.01.015.
doi: 10.1016/j.envsoft.2012.01.015
Wang JF, Xu CD, 2017. Geodetector: principle and prospective. Acta Geographica Sinica, 72(1): 116-134.
Wang JF, Li XH, Christakos G, et al., 2010. Geographical detectors-based health risk assessment and its application in the neural tube defects study of the Heshun Region, China. International Journal of Geographical Information Science, 24(1): 107-127. DOI: 10.1080/13658810802443457.
doi: 10.1080/13658810802443457
Wang ZL, Xie PW, Lai CG, et al., 2016. Spatiotemporal variability of reference evapotranspiration and contributing climatic factors in China during 1961-2013. Journal of Hydrology, 544: 97-108. DOI: 10.1016/j.jhydrol.2016.11.021.
doi: 10.1016/j.jhydrol.2016.11.021
Wang ZZ, Ye AL, Wang LH, et al., 2019. Spatial and temporal characteristics of reference evapotranspiration and its climatic driving factors over China from 1979-2015. Agricultural Water Management, 213: 1096-1108. DOI: 10.1016/j.agwat.2018.12.006.
doi: 10.1016/j.agwat.2018.12.006
Wei ZF, Wang DG, Zhang C, et al., 2014. Response of vegetation cover to climate change and human activities in Northwest China during 1999-2010. Journal of Desert Research, 34(6): 1665-1670. DOI: 10.7522/j.issn.1000-694X.2014.00032.
doi: 10.7522/j.issn.1000-694X.2014.00032
Xiong JN, Zhao YL, Cheng WM, et al., 2018. Temporal-spatial distribution and the influencing factors of mountain-flood disasters in Sichuan Province. Journal of Geo-Information Science, 20(10): 1443-1456. DOI: 10.12082/dqxxkx. 2018.180193.
doi: 10.12082/dqxxkx. 2018.180193
Yang T, Sun FB, Liu WB, et al., 2019. Using Geodetector to attribute spatio‐temporal variation of pan evaporation across China in 1961-2001. International Journal of Climatology, 39(5): 2833-2840. DOI: 10.1002/joc.5976.
doi: 10.1002/joc.5976
Yin Y, Wu S, Chen G, et al., 2010. Attribution analyses of potential evapotranspiration changes in China since the 1960s. Theoretical and Applied Climatology, 101(1-2): 19-28. DOI: 10.1007/s00704-009-0197-7.
doi: 10.1007/s00704-009-0197-7
Zhang D, Liu XM, Hong HY, 2013. Assessing the effect of climate change on reference evapotranspiration in China. Stochastic Environmental Research and Risk Assessment, 27(8): 1871-1881. DOI: 10.1007/s00477-013-0723-0.
doi: 10.1007/s00477-013-0723-0
Zhang H, Ren ZY, 2015. Remote sensing analysis of vegetation phenology characteristics in Shaanxi Province based on whittaker smoother method. Journal of Desert Research, 35(4): 901-906. DOI: 10.7522/j.issn.1000-694X.2014.00073.
doi: 10.7522/j.issn.1000-694X.2014.00073
Zhang L, Traore S, Cui YL, et al., 2019. Assessment of spatiotemporal variability of reference evapotranspiration and controlling climate factors over decades in China using geospatial techniques. Agricultural Water Management, 213: 499-511. DOI: 10.1016/j.agwat.2018.09.037.
doi: 10.1016/j.agwat.2018.09.037
Zhang MM, 2019. Analysis of the temporal and spatial variation of evapotranspiration and its driving factors in arid and semi-arid region of China from 2000 to 2015. Chang'an University.
Zhang SH, Liu SX, Mo XG, et al., 2010. Assessing the impact of climate change on reference evapotranspiration in Aksu River Basin. Acta Geographica Sinica, 65(11): 1363-1370.
Zhao YD, Liu YH, Li JL, et al., 2018. Spatial and temporal variation of potential evapotranspiration and its sensitivity to meteorological factors in China from 1960 to 2013. Desert and Oasis Meteorology, 12(3): 1-9.
Zhong Q, Jiao L, Li Z, et al., 2019. Spatial and temporal changes of potential evapotranspiration and its attribution in the Bosten Lake Basin. Arid Land Geography, 42(1): 103-112.
