Numerical simulation of vibrational response characteristics of railway subgrades with insulation boards

ZiYu Wang1,2(),XianZhang Ling2,YingYing Zhao3,Feng Zhang2,LiHui Tian4

  1. 1.School of Marine Science and Technology, Hainan Tropical Ocean University, Sanya, Hainan 572022, China
    2.School of Civil Engineering, Harbin Institute of Technology, Harbin, Heilongjiang 150090, China
    3.School of Civil Engineering, Southeast University, Nanjing, Jiangsu 211189, China
    4.School of Mining Engineering, Heilongjiang University of Science and Technology, Harbin, Heilongjiang 150022, China
  • Received:2020-02-03 Accepted:2020-12-25 Online:2022-02-28 Published:2022-03-03
  • Contact: ZiYu Wang E-mail:iamwziyu@163.com
  • Supported by:
    the Jiangsu Planned Projects for Postdoctoral Research Funds(2021K534C);the Heilongjiang Natural Science Foundation(QC2017035)

RichHTML

40

PDF (PC)

226

Abstract:

This study presents a numerical method based on the surface temperature data and the ground temperature increase in Daqing for predicting temperature field distribution in the Binzhou Railway subgrade and analyzing the temporal and spatial distribution of freeze-thaw status of railway subgrade. The calibrated numerical method is applied to simulate the temperature field distribution and roadbed vibrational response of the railway subgrade with a thermal insulation layer at different seasons. The results show the following: (1) The thermal insulation layer can remarkably increase the soil temperature below it and maximum frost depth in the subgrade. (2) Thermal insulation can effectively reduce the subgrade vibration and protect it from frost damage. (3) Given that the strength requirements are met, the insulation layer should be buried as shallow as possible to effectively reduce the subgrade vibration response. The research findings provide theoretical support for the frost damage prevention of railway subgrades in seasonally frozen regions.

Key words: seasonally frozen regions, railway subgrade, insulation layer, vibrational response, frost depth

Figure 1

Sectional schematic of the subgrade of Binzhou Railway (unit: m)"

Figure 2

Surface temperature variation within one year in Daqing"

Table 1

Moisture content and thermal parameters of soils in the subgrade"

Materialsρ (kg/m3)Wλfλu (J/(m·°C·d)CfCu (J/(kg·°C)L (J/kg)
Filler1,90015%154,220135,8608921,14910,740
Silty clay1,92020%132,19094,0001,1741,47337,700
Weathered mudstone2,10018%157,900132,1901,0261,16619,850
Insulation board300%3,0243,0241,2501,250-

Table 2

Physical and mechanical parameters of railway subgrade soils"

Soil nameTemperature (℃)Natural gravity (kN/m)Maximum shear modulus (kPa)Poisson's ratio
BallastRoom temperature20.02.860E+050.25
Embankment fillRoom temperature19.52.930E+040.30
Foundation soil 1+120.02.540E+040.32
-221.06.091E+050.30
-821.01.352E+060.28
Foundation soil 2+118.02.540E+040.32
-219.06.091E+050.30
-819.01.352E+060.28

Figure 3

Comparing of simulated dynamic stress histories with field monitored data"

Figure 4

Subgrade temperature field contours with an insulation layer at various depth from the subgrade surface"

Figure 5

Temperature and depth of along the centerline of the railway subgrade without insulation layer for different seasons (month/day)"

Figure 6

Seasonal freeze-thaw process along the centerline of the railway roadbed"

Figure 7

Temperature vs. depth along the centerline of subgrade cross-section with insulation layer for different seasons"

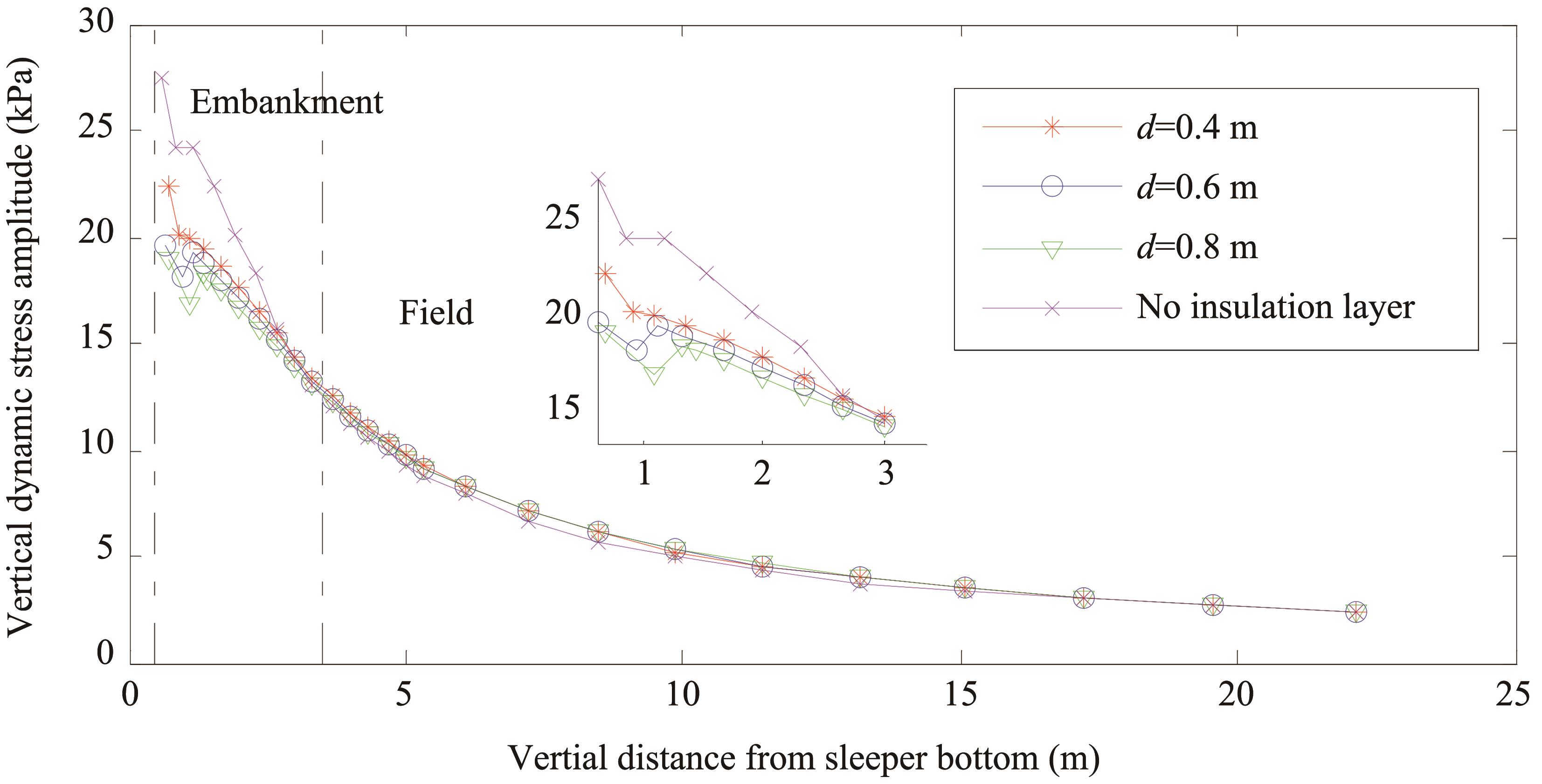

Figure 8

Attenuation of subgrade dynamic stress with depth for cases with and without insulating layer"

Figure 9

Attenuation of subgrade acceleration with depth for cases with and without insulating layer"

Ge JJ , 2008. Numerical simulation of the temperature regime within an embankment with insulated berm of the Qinghai-Tibet Railway. Journal of Glaciology and Geocryology, 30(2): 274-279. DOI: 10.1007/s11442-008-0201-7. (in Chinese)
doi: 10.1007/s11442-008-0201-7.
Guo LB , Pang RQ , Shi WG , 1981. Finite element analysis of temperature field in freezing wall of shaft. Journal of China Mining University, (3): 31-35. (in Chinese)
Lai YM , Wang QS , Niu FJ , 2004. There-dimensional nonlinear analysis for temperature characteristics of ventilated embankment in permafrost regions. Cold Regions Science and Technology, 38(2/3): 165-184. DOI: 10.1061/(asce)cr. 1943-5495.0000018 .
doi: 10.1061/(asce)cr. 1943-5495.0000018
Ling XZ , Zhu ZY , Zhang F , et al. , 2009. Dynamic elastic modulus for frozen soil from the embankment on Beiluhe basin along the Qinghai-Tibet Railway. Cold Regions Science and Technology, 57(1): 7-12. DOI: 10.1016/j.coldregions. 2009.01.004 .
doi: 10.1016/j.coldregions. 2009.01.004
Liu H , Niu FJ , Niu YH , et al. , 2012. Experimental and numerical investigation on temperature characteristics of high-speed railway's embankment in seasonal frozen regions. Cold Regions Science and Technology, (81): 55-64. DOI: 10.1016/j.coldregions.2012.04.004 .
doi: 10.1016/j.coldregions.2012.04.004
Mao XS , Ma B , 2011. Studies on the Stability of Permafrost Subgrade Based on Coupled Water and Heat Transfer. Beijing: China Communications Press, pp. 76-85.
Sun ZK , Wang LJ , Bai MZ , et al. , 2004. Finite element analysis of temperature field of Qinghai-Tibet Railway embankment on permafrost. Chinese Journal of Rock Mechanics and Engineering, 23(20): 3454-3459. DOI: 10.3321/j.issn:1000-6915.2004.20.011 .
doi: 10.3321/j.issn:1000-6915.2004.20.011
Wang SJ , Chen JB , Zhang JZ , 2006. Influences of insulating berm on ground temperature characteristics of permafrost subgrade. China Journal of Highway and Transport, 19(1): 12-16, 22.
Wang TX , Hu CS , Wang BG , et al. , 2000. A finite element method for thermal field analysis of frozen soil subgrade on the consideration of all field-factors. China Journal of Highway and Transport, 13(4): 8-11.
Wang ZY , 2014. Dynamic Response Characteristics and Permanent Deformation of Subgrade Induced by Train Load in Seasonally Deep Frozen Region. Harbin Institute of Technology. Doctoral Dissertation.
Xu J , Niu FJ , Li AM , et al. , 2010. Analysis of the prevention effect of thermal- insulation method on frost heave of railway subgrade in seasonal frozen regions. Journal of China Railway Society, 32(6): 124-131. DOI: 10.3969/j.issn. 1001-8360.2011.03.015 .
doi: 10.3969/j.issn. 1001-8360.2011.03.015
Xu J , Niu FJ , Niu YH , et al . 2011 Study on the temperature field of insulated roadbed with frost-resistant berm on seasonal frozen region. Journal of China Railway Society, 33(3): 84-90. DOI: CNKI:SUN:TDXB.0.2011-03-021 .
doi: CNKI:SUN:TDXB.0.2011-03-021
Xu XZ , Wang JC , Zhang LX , 2001. Geochryology Physics. Beijing: Science Press.
Yuan WT , Liu BH , Liu YL , 2011. Variation trend of surface temperature in Heilongjiang Province from 1960 to 2000. Journal of Northeast Forestry University, 39(2): 67-71.
Zhai WM , 2007. Vehicle-track Coupling Dynamics. Beijing: Science Press, pp. 157-158. (in Chinese).
Zhang F , 2012. Dynamic Response and Permanent Deformation of Subgrade Induced by Heavy Truck Load in Deep Seasonally Frozen Region. Harbin Institute of Technology, Doctoral Dissertation.
Zhang KX , Xie JP , 1989. Soil Dynamics. Beijing: Seismological Press, pp.: 199- 200.
Zhou YW , Guo DX , Qiu GQ , et al. , 2001. Geocryology in China. Beijing: Science Press.
