Mapping the dynamic degree of aeolian desertification in the Shiyang River Basin from 1975 to 2010

Jie Liao1,2(),Tao Wang1,ShaoXiu Ma1,2,Jian Guo3

  1. 1.Key Laboratory of Desert and Desertification, Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou, Gansu 730000, China
    2.Drylands Salinization Research Station, Northwest Institute of Eco-Environment and Resources, Chinese Academy of Sciences, Lanzhou, Gansu 730000, China
    3.Lanzhou Branch, Chinese Academy of Sciences, Lanzhou, Gansu 730000, China
  • Received:2019-10-18 Accepted:2020-04-14 Online:2020-06-30 Published:2020-06-29
  • Contact: Jie Liao


The Shiyang River Basin is an area of China that is severly affected by aeolian desertification. Thus, we established an aeolian desertified land classification system for visual interpretation, which classified the Aeolian Desertified Land (ADL) into Slight (SL), Moderate (M), Severe (S) and Extremely Severe (ES) according to the severity. Imagery of Landsat series (acquired in 1975, 1990, 2000 and 2010) were employed to monitor the status, trend and spatial pattern of aeolian desertification, especially to map the overall spatial pattern of ADL dynamics by proposing a new Dynamic Index (DI) in the Shiyang River Basin from 1975 to 2010. The results show a generally decreasing trend from 1975 to 2010. However, the ES ADL kept increasing throughout the whole study period. Moreover, the area of ADLs with different severity increased with increasing severity, this S and ES ADLs dominated characteristics of aeolian desertification was contrary to those sandy lands in eastern China where was dominated by SL and M ADLs. Among the three sub-periods of 1975-1990, 1990-2000 and 2000-2010, the first two were the restoration stage, while the last one was the expansion stage of aeolian desertification. Moreover, all these new ADLs occurred in Minqin County during 2000-2010, indicating a detrimental increase of aeolian desertification in Minqin, and the concentration of ADLs toward the lower reaches of the Shiyang River Basin. The DI works well to identify areas with desertification changes no matter the sub-periods. Moreover, DI results disclosed a stable status of aeolian desertification, and the DI decreased with increasing ADL severity. These results indicate that it will be difficult to control the expansion of aeolian desertification in Minqin County over an extended period of time. Thus, we suggest effective and long-lasting aeolian desertification control programs in the Shiyang River Basin, especially in Minqin, and SL and M ADLs should have priority in facilitating a quick reversal of aeolian desertification.

Key words: aeolian desertification, dynamic degree, Shiyang River Basin, Minqin

Figure 1

Location, terrain and hydrology of the Shiyang River Basin, China"

Table 1

Aeolian Desertified Land (ADL) classification system"

SeverityVCSSCLandscape features

Satellite image features

False color images

SL ADL>60%<5%The original landscape is mostly maintained, only with sparse and spotted shifting sand or blowout distribution. The vegetation cover is good, but vegetation degradation can be identified occasionally.Patches are light red overall, shifting sand can be barely recognized. Boundaries between vegetation and sand are not clear.
M ADL30%-60%5%-25%Semi-fixed dunes almost cover the area. Shifting dunes, shifting sands or blowouts are sparsely scattered around semi-fixed dunes. The vegetation cover is worse than that of the SL ADL but still good comparatively.Patches are not pure color, but covered by yellow and white alternately, and dotted by red.
S ADL10%-30%25%-50%Shifting dunes, shifting sand sheets and blowouts are widely distributed across the area. Vegetation is sparse.Patches are dominated by yellow and white, and dotted by sparse light red, have a rough texture. Boundaries between vegetation and sand are clear.
ES ADL<10%>50%The area is dominated by shifting dunes or shifting sand sheets. The blowouts are widely distributed. There is little or no vegetation cover. Sparse plants can only grow on small pieces of lowlands between dunes.Patches are purely yellow or white, have a rough texture and dune-like patterns. Shifting sand/ dunes can be identified.

Figure 2

Temporal trend of ADLs with different severity from 1975 to 2010"

Figure 3

Spatial patterns of ADLs with different severity from 1975 to 2010 (a, b, c, and d indicate the year 1975, 1990, 2000 and 2010 accordingly)"

Table 2

Area of ADLs with different dynamic types (Unit: ×103 km2)"


Figure 4

Spatial patterns of ADL Dynamics in the sub-periods of 1975-1990 (a), 1990-2000 (b) and 2000-2010 (c) (Restored ADL means ADLs became Non-ADL, Relieved ADL indicates ADLs of higher severity became ADLs of lighter severity. New ADL and Deteriorated ADL are the opposite of Restored ADL and Relieved ADL)"

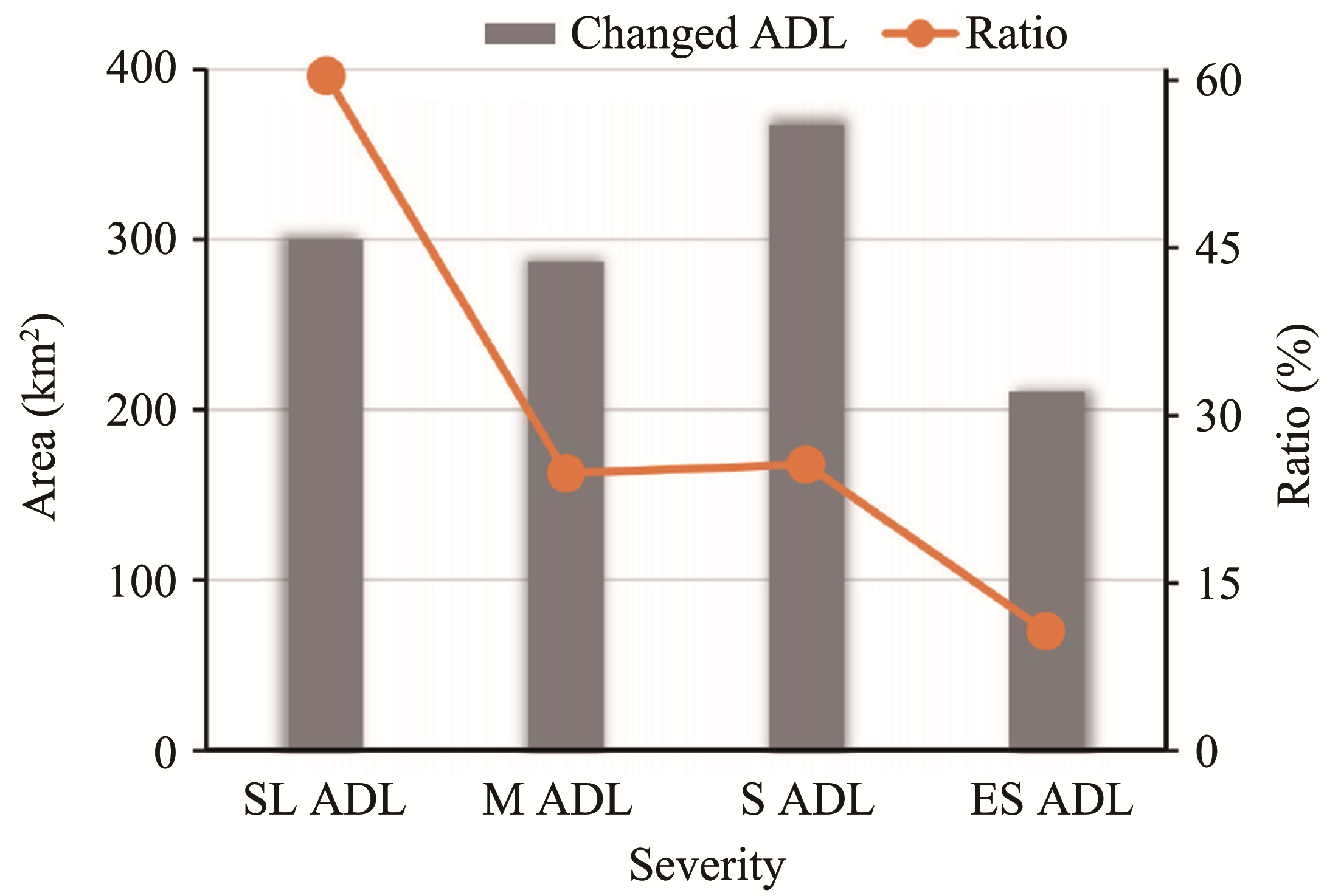

Figure 5

The area of changed ADLs with different severity and its ratio to the ADL area with corresponding severity from 1975 to 2010"

Figure 6

The spatial pattern of DI in the Shiyang River Basin from 1975 to 2010"

Chen J, Yin S, Gebhardt H, et al., 2018. Farmers' livelihood adaptation to environmental change in an arid region: A case study of the Minqin Oasis, northwestern China. Ecological Indicators, 93: 411-423. DOI: 10.1016/j.ecolind.2018. 05.017.
doi: 10.1016/j.ecolind.2018. 05.017
Dawellbait M, Morari F, 2012. Monitoring desertification in a savannah region in Sudan using Landsat images and spectral mixtureanalysis. Journal of Arid Environments, 80: 45-55. DOI: 10.1016/j.jaridenv.2011.12.011.
doi: 10.1016/j.jaridenv.2011.12.011
Dharumarajan S, Bishop TFA, Hegde R, et al., 2018. Desertification vulnerability index—an effective approach to assess desertification processes: A case study in Anantapur District, Andhra Pradesh, India. Land Degradation and Development, 29: 150-161. DOI: 10.1002/ldr.2850.
doi: 10.1002/ldr.2850
Duan HC, Wang T, Xue X, et al., 2019. Dynamic monitoring of aeolian desertification based on multiple indicators in Horqin Sandy Land, China. Science of the Total Environment, 650: 2374-2388. DOI: 10.1016/j.scitotenv.2018. 09.374.
doi: 10.1016/j.scitotenv.2018. 09.374
Guo CL, Li ZL, Chen NL, et al., 2010. The grassland degradation problems of the Minqin oasis, in the lower reaches of the Shiyang River Basin. Acta Prataculture Sinica, 19(6): 62-71. DOI: 10.3724/SP.J.1142.2010.40491. (in Chinese)
doi: 10.3724/SP.J.1142.2010.40491
Guo J, Wang T, Xue X, et al., 2010. Monitoring aeolian desertification process in Hulunbir grassland during 1975-2006, Northern China. Environmental Monitoring and Assessment, 166: 563-571. DOI: 10.1007/s10661-009-1023-5.
doi: 10.1007/s10661-009-1023-5
Hu GY, Dong ZB, Lu JF, et al., 2011. Spatial and temporal changes of desertification land and its influence factors in source region of the Yellow River from 1975 to 2005. Journal of Desert Research, 31(5): 1079-1086. (in Chinese)
Jacques DPT, Isaurinda B, António JDF, 2015. Assessment and mapping the sensitive areas to desertification in an insular Sahelian mountain region Case study of the Ribeira Seca Watershed, Santiago Island, Cabo Verde. Catena, 128: 214-223. DOI: 10.1016/j.catena.2014.10.005.
doi: 10.1016/j.catena.2014.10.005
Lamchin M, Lee JY, Lee WK, et al., 2016. Assessment of land cover change and desertification using remote sensing technology in a local region of Mongolia. Advances in Space Research, 57: 64-77. DOI: 10.1016/j.asr.2015.10.006.
doi: 10.1016/j.asr.2015.10.006
Liu L, Ji WT, Ma TT, 2011. Wind velocity variation from1959 to 2008 in the Shiyang River Basin. Northern Environment, 23(Z1): 156-157. (in Chinese)
Liu SL, Wang T, 2007. Aeolian desertification from the mid-1970s to 2005 in Otindag Sandy Land, Northern China. Environmental Geology, 51: 1057-1064. DOI: 10.1007/s00254-006-0375-1.
doi: 10.1007/s00254-006-0375-1
Ma JZ, Wang XS, Edmunds WM, 2005. The characteristics of ground-water resources and their changes under the impacts of human activity in the arid Northwest China—a case study of the Shiyang River Basin. Journal of Arid Environments, 61(2): 277-295. DOI: 10.1016/j.jaridenv. 2004.07.014.
doi: 10.1016/j.jaridenv. 2004.07.014
Perini L, Cecarelli T, Zitti M, et al., 2009. Insight desertification process: bio-physical and socio-economic drivers in Italy. Italian Journal of Agrometeorology, 2(3): 45-55.
Scuderi L, Weissmann G, Kindilien P, et al., 2015. Evaluating the potential of database technology for documenting environmental change in China's deserts. Catena, 134: 87-97. DOI: 10.1016/j.catena.2014.12.025.
doi: 10.1016/j.catena.2014.12.025
Tang Q, Qu Y, Zhou J, 1992. The Hydrology and Water Resources Used in Arid Areas of China. Science Press, Beijing, pp. 89.
UN WWAP (World Water Assessment Programme), 2009. Water in a changing world. The United Nations World Water Development Report3.
Wang H, Ma M, Geng L, 2015. Monitoring the recent trend of aeolian desertification using Landsat TM and Landsat 8 imagery on the north-east Qinghai-Tibet Plateau in the Qinghai Lake basin. Natural Hazards, 79(3): 1753-1772. DOI: 10.1007/s11069-015-1924-2.
doi: 10.1007/s11069-015-1924-2
Wang T, Wu W, Xue X, et al., 2004. Study of spatial distribution of sandy desertification in North China in recent 10 years. Science in China Ser. D Earth Sciences, 47(Supp.1): 78-88. DOI: 10.1360/04zd0009.
doi: 10.1360/04zd0009
Wang T, 2011. Deserts and Aeolian Desertification in China. ELSEVIER in Amsterdam and Science Press in Beijing.
Wang T, Yan CZ, Song X, et al., 2012. Monitoring recent trends in the area of aeolian desertified land using Landsat images in China's Xinjiang region. ISPRS Journal of Photogrammetry and Remote Sensing, 68:184-190. DOI: 10.1016/j.isprsjprs.2012.01.001.
doi: 10.1016/j.isprsjprs.2012.01.001
Wang T, Yan CZ, Song X, et al., 2013. Landsat images reveal trends in the aeolian desertification in a source area for sand and dust storms in China's Alashan Plateau (1975-2007). Land Degradation and Development, 24(5): 422-429. DOI: 10.1002/ldr.1138.
doi: 10.1002/ldr.1138
Wang T, 2014. Aeolian desertification and its control in Northern China. International Soil and Water Conservation Research, 2(4): 34-41. DOI: 10.1016/S2095-6339(15)30056-3.
doi: 10.1016/S2095-6339(15)30056-3
Wang T, Xue X, Zhou LH, et al., 2015. Combating aeolian desertification in Northern China. Land Degradation and Development, 26: 118-132. DOI: 10.1002/ldr.2190.
doi: 10.1002/ldr.2190
Wang YF, Zhang JQ, Tong SQ, et al., 2017. Monitoring the trends of aeolian desertified lands based on time-series remote sensing data in the Horqin Sandy Land, China. Catena, 157: 286-296. DOI: 10.1016/j.catena.2017.05.030.
doi: 10.1016/j.catena.2017.05.030
Water Resource Department of Gansu Province, 2007. Key Management Plan for Shiyang River Basin. (in Chinese)
Wen X, Wang T, Xue X, et al., 2013. Spatial-temporal evolution of the oasis in Shiyang River Basin in 1975-2010. Journal of Desert Research, 33(2): 475-485. DOI: 10.7522/j.issn.1000-9694X.2013.00065. (in Chinese)
doi: 10.7522/j.issn.1000-9694X.2013.00065
Xue X, Liao J, Hsing YT, et al., 2015. Policies, land use and water resource management in an arid oasis ecosystem. Environmental Management, 55(5): 1036-1051. DOI: 10.1007/s00267-015-0451-y.
doi: 10.1007/s00267-015-0451-y
Yan CZ, Song X, Zhou YM, et al., 2009. Assessment of aeolian desertification trends from 1975's to 2005's in the watershed of the Longyangxia Reservoir in the upper reaches of China's Yellow River. Geomorphology, 112: 205-211. DOI: 10.1016/j.geomorph.2009.06.003.
doi: 10.1016/j.geomorph.2009.06.003
Yang X, Ding Z, Fan X, et al., 2007. Processes and mechanisms of desertification in northern China during the last 30 years, with a special reference to the Hunshandake Sandy Land, eastern Inner Mongolia. Catena, 71: 2-12. DOI: 10.1016/j.catena.2006.10.002.
doi: 10.1016/j.catena.2006.10.002
Yin S, Chen J, Wu KS, et al., 2016. Adaptation of farming households under drought stress: based on a survey in the Minqin Oasis. Progress in Geography, 35(5): 644-654. DOI: 10.18306/dlkxjz.2016.05.011. (in Chinese)
doi: 10.18306/dlkxjz.2016.05.011
Zhang CL, Li Q, Shen YP, et al., 2018. Monitoring of aeolian desertification on the Qinghai-Tibet Plateau from the 1970s to 2015 using Landsat images. Science of the Total Environment, 619-620: 1648-1659. DOI: 10.1016/j.scitotenv. 2017.10.137.
doi: 10.1016/j.scitotenv. 2017.10.137
Zhao C, 2007. We must never allow Minqin county to repeat the tragedy of Lop Nur. China Forestry, 20: 4-5. (in Chinese)
Zhou LP, Wei HD, Ding F, et al., 2015. Spatial-temporal variation and dynamic evolution of the cultivated land in Shiyang River Basin from 1973 to 2010. Arid Zone Research, 32(3): 483-491. DOI: 10.13866/j.azr.2015.03.10. (in Chinese)
doi: 10.13866/j.azr.2015.03.10
Zhu ZD, 1985. The status and trend of aeolian desertification in Northern China. Journal of Desert Research, 5(8): 3-11. (in Chinese)
