Abstract: The accuracy of spatial interpolation of precipitation data is determined by the actual spatial variability of the precipitation, the interpolation method, and the distribution of observatories whose selections are particularly important. In this paper, three spatial sampling programs, including spatial random sampling, spatial stratified sampling, and spatial sandwich sampling, are used to analyze the data from meteorological stations of northwestern China. We compared the accuracy of ordinary Kriging interpolation methods on the basis of the sampling results. The error values of the regional annual precipitation interpolation based on spatial sandwich sampling, including ME(0.1513), RMSE(95.91), ASE(101.84), MSE(-0.0036), and RMSSE(1.0397), were optimal under the premise of abundant prior knowledge. The result of spatial stratified sampling was poor, and spatial random sampling was even worse. Spatial sandwich sampling was the best sampling method, which minimized the error of regional precipitation estimation. It had a higher degree of accuracy compared with the other two methods and a wider scope of application.
Key words: Kriging interpolation method     sampling methods     spatial sandwich sampling     precipitation     northwestern China
1 Introduction

Precipitation is one of the most essential variables of meteorology and hydrology(Rui,2004). It is also the one essentially required for a number of applications such as natural resource management,agriculture management,irrigation scheduling,ecosystem modeling,and hydrological modeling(Ashiq et al.,2010). Precipitation data are usually available at certain locations where weather stations are set up. For the majority of locations,such as mountainous,marine and oceanic regions,it is difficult and expensive to acquire continuous spatial data(Wang et al.,2014). Interpolation is a spatial analysis method that constructs new data points within the range of a discrete set of known data points. In meteorology and hydrology,by using geographical(e.g.,weather stations)and temporal data from observation points,interpolation is used to predict climate variables in areas where there are no weather observation data available(Alvarez et al.,2014). The precision of spatial interpolation of precipitation is related to the actual spatial variability of the precipitation,the distribution of the stations,and the interpolation methods used(Kong and Tong,2008). The spatial variability of precipitation is determined by natural properties,which are not controllable. Therefore,to estimate precipitation accurately,it is necessary to have rain gauges distributed in optimal locations and to apply appropriate interpolation techniques for estimating important parameters(Yavuz and Erdoğan,2012).

Many spatial interpolation methods have been developed to estimate the values of environmental variables at unmeasured locations for creating a continuous surface from sampled point values,and over the last decade they have been increasingly used in a wide range of studies,including ecology,hydrology,fire modeling,and water resources(Bostan et al.,2012; Alvarez et al.,2014). The interpolation methods can be divided into two kinds: deterministic and geostatistical interpolation techniques. Deterministic interpolations use mathematical functions to generate gridded data from the measured points based on either the extent of similarity or the degree of smoothing(Johnston et al.,2001; Ashiq et al.,2010). Among various deterministic interpolation techniques,inverse distance weighted,local polynomial interpolation,and radial basis functions are used to generate models. Geostatistic interpolations are based on the theory of regionalized variables and rely on both statistical and mathematical functions. A variogram model is used to describe the spatial continuity of the input data to estimate values at unsampled locations. From this group,ordinary Kriging and its multivariate extension,ordinary co-Kriging,are used to generate models(Ashiq et al.,2010).

Regarding precipitation,much of the effort has been focused on identifying appropriate interpolation methods. Lloyd(2005)studied the effect of elevation on estimation of monthly precipitation in Great Britain by comparing moving window regression,inverse distance weight(IDW),ordinary Kriging(OK),simple Kriging with a locally varying mean,and Kriging with external drift(KED),and concluded that KED provided the most accurate estimates of precipitation when judged by cross-validation estimation error summary statistics. Chen et al.(2010)focused on identifying an accurate method to produce gridded daily precipitation in China based on the observed data at 753 stations for the period 1951–2005. They used and compared five interpolation methods,including ordinary nearest neighbor,local polynomial,radial basis function,inverse distance weighting,and ordinary Kriging. Cross-validation showed that the ordinary Kriging based on seasonal semi-variograms gave the best performance. Wei et al.(2005)compared interpolation approaches,statistical models,and comprehensive approaches,including nine methods to estimate precipitation resources for rainwater harvesting for agriculture in semi-arid lands in China. Their results indicated that the simulating precision of the comprehensive method was the best of the nine approaches,while among the seven interpolation approaches,the precision of the ordinary Kriging method was the best.

These researches indicated that there is no absolutely best interpolation method; the best method can be chosen by taking the actual situation of the study area into account. Among the various interpolation methods,no method is always optimal; the best interpolation method for a specific situation can only be obtained by comparing their results(Sun et al.,2009). In studies of precipitation interpolation in northwestern China,ordinary Kriging and co-Kriging performed better(Fang et al.,2005; Chu et al.,2008; He et al.,2008). In this paper,we used the OK method to estimate the regional surface precipitation in northwestern China.

The distribution of meteorological stations also impacts the precision of precipitation interpolation(Yavuz and Erdoğan,2012). Numerous studies have shown that the accuracy of the interpolation methods is comparatively more reliable in areas of greater observation site density(Chen et al.,2010). The distribution of precipitation stations is subject to natural factors and socio-economic conditions,and if the representativeness of some stations is relatively poor,it will limit the accuracy of the precipitation interpolation.

Currently,the sampling model method can aggregate weather stations to optimize the number and location of the stations,and the resulting samples will have a higher accuracy of interpolation and greater representativeness than others in regional precipitation estimation. Therefore,this method renders the interpolation results of regional precipitation more accurate. The sampling model mainly includes simple random sampling,systematic sampling,cluster sampling,spatial random sampling,spatial stratified sampling,and spatial sandwich sampling,and has been widely used in fields such as sociology,natural sciences,economics,and population studies(Cao et al.,2008; Jiang et al.,2008). The sandwich sampling method will stratify the sample layer according to prior knowledge,which can improve the accuracy of statistical results. For example,Wang et al.(20022013)used the spatial sandwich method to estimate the proportion of cultivated land in Shandong Province,China in 2000,and they suggested certain situations where sandwich estimation might be expected to do better than block Kriging estimation and hierarchical Bayesian estimation. The sandwich sampling method is well applied in soil evaluation and forest area estimation. For example,Chen et al.(2012)investigated the soil Cr content in Zengcheng City,Guangdong Province of China,with three different methods for sampling analysis: spatial random sampling,spatial stratified sampling,and spatial sandwich sampling. They found that the regional distribution result error of ordinary Kriging interpolation by sample points which were obtained by the sandwich sampling method was the minimum of the three methods. Zhang J and Zhang Y(2011)used different sampling methods to estimate forest areas,and their results showed that the accuracy of the sandwich model of spatial sampling was the highest,followed by the spatial stratified sampling and the spatial random sampling methods.

Northwest China(31°35'N–49°15'N,73°25'E– 110°55'E)is located in the central part of the Eurasian continent,and includes Xinjiang,Qinghai,Gansu,Ningxia,and Shaanxi provinces(Liu et al.,2013). The total area is approximately 3.04 million km2,accounting for more than 30% of China's total terrestrial area. The Kunlun Mountains and the northeastern Qinghai-Tibet Plateau are the southern boundary of the area,and they block the vapor from the Indian Ocean. The Altai Mountains are the northern boundary,blocking the vapor from the Arctic Ocean. The Tianshan Mountains lie in the middle of Xinjiang and form landscapes of alpine meadows,inland basins,gobi deserts,and widespread sandy deserts. This region is controlled by a continental climate and the average annual precipitation is only 130 mm,with an increasing trend during 1956–2010(Shi et al.,2002; Shen et al.,2013). The Loess Plateau is the eastern boundary,which blocks the vapor from the Pacific Ocean. This region is controlled by a monsoon climate,and the average annual precipitation is about 500 mm with a negative changing trend(−29.11 mm/(50a))(Wang et al.,2012). The Hexi Corridor is the middle area,connecting the Tianshan Mountains and the Loess Plateau,whose annual precipitation is about 200 mm with an increasing trend(3.95 mm/(10a))(Meng et al.,2012). However,the annual precipitation is still relatively sparse in southern Xinjiang and the Hexi Corridor,while relatively abundant in northern Xinjiang and the Loess Plateau.

Analyzing the differences of precipitation in an entire region and evaluating whether the existing meteorological stations adequately reflect the regional precipitation can help to grasp the actual regional precipitation and plan industry development according to industrial water consumption,and optimize the use of precipitation resources in various regions. In addition,the spatial interpolation of precipitation can also provide basic data for the simulation of area runoff,and prediction and management of droughts,floods,and other hydrological problems.

In this study,three sampling methods were used to sample the meteorological stations in northwestern China: spatial random sampling,spatial stratified sampling,and spatial sandwich sampling. The samples were interpolated with the ordinary Kriging method to estimate the regional precipitation,and the accuracy of the different samples were compared to attempt to select a group of stations that are more representative in the study area.

2 Materials and methods 2.1 Spatial autocorrelation analysis

Spatial autocorrelation refers to the relevance of the same property or phenomenon in different spatial locations,that is,the spatial heterogeneity of the same property or phenomenon(Zhang S and Zhang K,2007). Moran's I coefficient method is a commonly utilized index to measure spatial autocorrelation(Moran,1948,Moran,1950):

$I=\frac{n}{{{S}_{0}}}\frac{\sum{_{i=1}^{n}}\sum{_{j=1}^{n}}{{w}_{i,j}}{{z}_{i}}{{z}_{j}}}{\sum{_{i=1}^{n}}z_{i}^{2}}$ (1)

where zi is the deviation of the attribute of element i and its average; wij is the spatial weight of elements i and j; n and S0 are the total number of elements and aggr egation of all spatial weights,respectively. S0 is:

${{S}_{0}}=\sum\limits_{i=1}^{n}{\sum\limits_{j=1}^{n}{{{w}_{i,j}}}}$ (2)

The value of Moran's I is typically between −1 and 1. If I is a positive number,it indicates spatial elements for clustering distribution,and for discrete distribution if I is a negative number. A larger value of I indicates greater correlation of spatial distribution,and means spatial elements are more gathered in space and more approximate in attribute value.

2.2 Sampling methods 2.2.1 Spatial random sampling method Unlike simple random sampling,the spatial random sampling method takes the spatial autocorrelation into account; the variance of the mean value estimation needs to be adjusted according to the degree of correlation in the spatial sampling objects(Wang et al.,2009). The mean and variance are:
$\bar{y}=\frac{1}{n}\sum\limits_{i=1}^{n}{{{y}_{i}}}$ (3)
$v\left( n \right)=E\left[ \frac{1}{n}\sum\limits_{i}^{n}{{{y}_{i}}}-\frac{1}{A}\int\limits_{A}{y\left( s \right)\text{d}s} \right]=\frac{\sigma _{p}^{2}}{n}-\frac{E\left[ C\left( X,Y \right) \right]}{n}$ (4)
where $\sigma _{p}^{2}$ is the discrete variance,C(XY)is the covariance,and yi is the observed value. 2.2.2 Spatial stratified sampling method According to Cochran stratification criteria(Cochran,1977)(small variance in inner layer,large variance among different layers),it is necessary to stratify the elements that have a relative approximate attribute value for the same layer,and divide the entire region into L layers. First,the method calculates the total sample of the study area according to the stratified random sample model. Then it assigns samples into each layer according to Wz,the weight of each layer(z). The Wz can be distributed in such ways that enhance the sampling efficiency successively according to equality,the area proportion,and the discrete variance. Finally,it samples all the elements with the simple random sampling method within each layer(Wang et al.,2009). The formula of the mean value is:
$\overline{{{y}_{z}}}=\frac{1}{{{n}_{z}}}\sum\limits_{i=1}^{{{n}_{z}}}{{{y}_{zi}}}$ (5)
where $\overline{{{y}_{z}}}$ is the mean value of the samples in layer z; nz is the number of samples in layer z; and yzi is the value of sample i in layer z. The formula of the variance of the mean value is:
$v\left( \overline{{{y}_{z}}} \right)=E{{\left( \overline{{{y}_{z}}}-\overline{{{Y}_{z}}} \right)}^{2}}$ (6)
where $\overline{{{Y}_{z}}}$ is the population mean value of the observed samples. After obtaining the mean and variance of each layer,we can calculate the mean and variance of the who le study area:
$\bar{y}=\frac{1}{n}\sum\limits_{z=1}^{L}{{{n}_{z}}}\overline{{{y}_{z}}}$ (7)
$v\left( \overline{y} \right)=\sum\limits_{z=1}^{L}{W_{z}^{2}}\left( \overline{{{y}_{z}}} \right)$ (8)
2.2.3 Spatial sandwich sampling method Spatial sandwich sampling adds report unit layers combined with the actual application. Its model framework consists of the sample layer,the knowledge layer,and the report layer based on space delamination. In the spatial sandwich sampling model,the samples are partitioned by the knowledge layer,and the sample mean and variance of each knowledge layer will be calculated first. Then,the report layer is cut with the knowledge layer,and the mean and variance of the knowledge layer are deduced to the report layer to obtain the mean and variance of each report unit layer(Wang et al.,2009). If the accuracy and variance of each knowledge layer are given,the sampling capacity n and the optimal sampling size in each knowledge layer can be calculated,as well as the mean value and variance of each report unit layer. The mean value and variance of each report layer are:
$\overline{{{y}_{r}}}=\sum\limits_{z=1}^{{{N}_{rz}}}{{{W}_{rz}}}\overline{{{y}_{z}}}$ (9)
$v\left( \overline{{{y}_{r}}} \right)=\sum\limits_{z=1}^{{{N}_{rz}}}{W_{rz}^{2}}\left( \overline{{{y}_{z}}} \right)$ (10)
${{W}_{rz}}={{N}_{rz}}/{{N}_{r}}$ (11)
where Nr represents the number of population samples in the report layer r; Nrz is the number of samples in both the knowledge layer z and the report layer r; Wrz is the proportion of polygon rz accounted for in the report layer r; and $\overline{{{y}_{z}}}$ and $\overline{{{y}_{r}}}$ are the mean values of the knowledge layer z and the report layer r,respectively. 2.3 Spatial interpolation methods

In contrast with deterministic methods,Kriging is a powerful statistical interpolation method which has the capability of giving unbiased predictions with minimum variance and taking account of spatial correlations and statistical relationships between measured points(Krige,1966). The OK estimate is a linear weighted average of the available non-observations defi ned in Equation(12)as:

$Z\left( s \right)=\sum\limits_{i=1}^{n}{{{\lambda }_{i}}z\left( {{s}_{i}} \right)}$ (12)

where Z(s)is the OK estimate at location sλi is the OK weight,and si are the observation locations.

The weight of different locations is based on their spatial relationship. Kriging uses the semi-variogram as a measure of dissimilarity between observations. The semi-variogram is a function of both distance and direction,so it can account for direction-dependent variability(Yavuz and Erdoğan,2012).

However,Kriging methods not only provide predictions,but also quantify the prediction error. In this study,the performance comparison of different samples was made using a cross-validation procedure.

The root mean squared error(RMSE)is an accuracy performance measure that is frequently used as a measure of magnitude of errors(Equation(13))(Lloyd,2005):

$RMSE=\sqrt{\frac{1}{n}\sum\limits_{i=1}^{n}{{{\left( Z\left( s \right)-z\left( {{s}_{i}} \right) \right)}^{2}}}}$ (13)

where Z(s)is the predicted value; z(si)is the observed value at the sampling point si; and n is the number of sample points.

The root mean square standardized error(RMSSE)is a measure of the goodness of the assessment of the prediction error. If the prediction error variance is correctly assessed,then the ratio should on average be close to 1(Equation(14))(Bostan et al.,2012):

$RMSSE=\frac{1}{n}\sum\limits_{i=1}^{n}{{{\frac{\left( Z\left( s \right)-z\left( {{s}_{i}} \right) \right)}{\sigma _{PE}^{2}\left( {{s}_{i}} \right)}}^{2}}}$ (14)

where $\sigma _{PE}^{2}$ is the prediction error variance at location si.

2.4 Data source

The precipitation data were downloaded from the China Meteorological Data Sharing Service System. The average annual precipitation data of 155 meteorological stations in Northwest China were used for sample analysis and comparison. The distribution of these sites is shown in Figure 1.

Figure 1 The distribution of meteorological stations and partition of report layer

Space stratification takes samples of the small variances in the inner layer and large variances among the different layers,and makes the spatial elements have relatively approximate attribute values in the same layer. According to Tobler's first law of geography(Tobler,19702004),the closer distance of objects,the higher their degree of similarity,so the objects in space are continuous wholes. Thus,precipitation in the study area was comprehended as being larger in the southeast and smaller in the Northwest,and the southern Xinjiang and northern Gansu provinces were found to be the most arid regions in the area. We divided the whole Northwest China area into five parts based on prior knowledge from local people to guarantee that the precipitation differences were small inside each layer and large among the other layers,and all of the layers were spatially continuous. This stratification was called the knowledge layer(Wang et al.,2002). The first strata included the southern region of Shaanxi Province and a small region in the southwest part of Qinghai Province; the second strata included the middle area of Shaanxi,the southern region of Gansu,and the southwestern region of Qinghai; the third strata included the northern region of Shaanxi,the southern region of Ningxia,the middle areas of both Gansu and Qinghai,and a small part of the northeast region of Xinjiang; the fourth strata included northern Ningxia,the middle Gansu and Qinghai,and the northern Xinjiang; and the fifth strata included the northern regions of both Gansu and Qinghai.

Sandwich sampling joins the report layer and solves the sampling problem of multiple report units. It can divide the whole layer into report layers according to the user's needs,and deduce the average and variance of every report unit. The administrative layer was carried as the report layer in this paper,shown in Figure 1. The knowledge layer is shown in Figure 2.

Figure 2 The partition of the knowledge layer
3 Results 3.1 Spatial autocorrelation analysis

In this paper,Moran's I coefficient method was used to measure the spatial autocorrelation level of regional precipitation by ArcGIS 10.2. The result showed the I index as approximately 0.75,P<0.01,and the Z score was approximately 17.2. It indicated that there was an observable positive autocorrelation of precipitation in the study area at the 99% confidence level,and showed the state of aggregation in the space.

Each station had a higher regional representation if the high and low values of precipitation were aggregated in space rather than having a random distribution. Sampling of the original stations could thus determine which station was highly representative of the region.

3.2 Sampling results

In this paper,the pure random sampling method proposed by Cochran was used to determine the sample c apacity. The formula is:

$n=\frac{\left( t\cdot {{S}_{\text{td}}} \right)}{{{d}^{2}}}$ (15)

where n is the capacity of sample; t is the standard normal deviation according to significance level α; Std is the standard deviation of the samples; and d is the product of the sample mean and the relative error.

The Std was 217.7 and the sample mean was 305.5. The t values were 1.6449,1.9600,and 2.5758 at the confidence levels of 90%,95%,and 99%,respectively. According to actual conditions,the relative error and the confidence level were set at 60% and 99%,respectively. Eighty-five sample points were chosen to compare the spatial sampling.

The software sampling package was used to sample the 155 stations by spatial random sampling,spatial stratified sampling,and spatial sandwich sampling. The confidence interval,spatial autocorrelation coefficient,population variance,and absolute error of the spatial random sample were set 0.05,0.4,217.7,and 16,respectively. The confidence interval of the spatial stratified sampling was set 0.05 and the variances of each layer were,respectively,138,102,95,20,and 109. The parameters of the sandwich sampling were the same as the stratified sampling,but with added report hierarchical information. The sampling results are shown in Table 1.

Table 1 Sample distribution of knowledge layers based on different sampling programs
All stationsSpatial random
Spatial stratified
Spatial sandwich
3.3 Spatial interpolation

Ordinary Kriging was utilized to interpolate the regional value of annual precipitation with all of the stations and sampling results. The interpolation results are shown in Figures 3a-d.

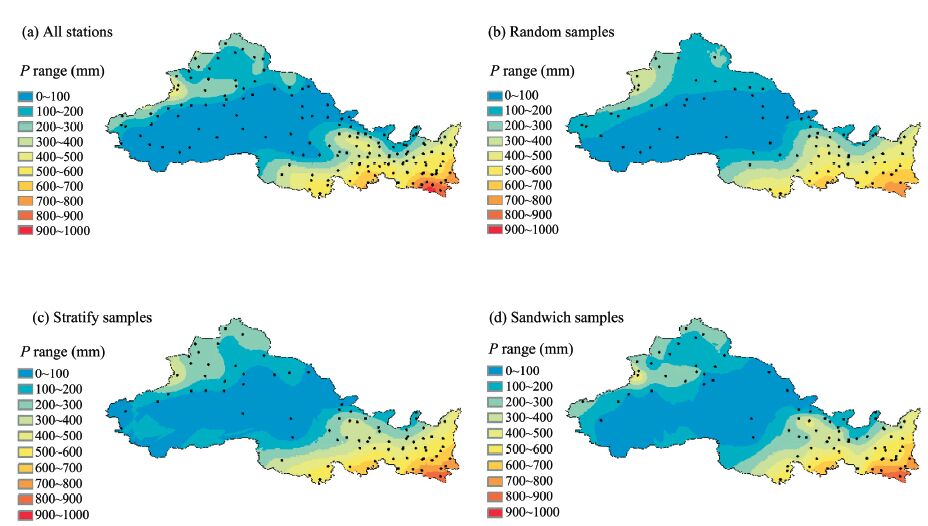

Figure 3 The ordinary Kriging interpolation of precipitation under different distributions of the sampling methods

According to these results,the interpolation by spatial sandwich samples had the best result compared to the spatial random and spatial stratified samples. All three of the sampling types estimated that there was more precipitation in the southeast,less in the northwest,and least in the middle area. The interpolation result of the spatial random samples was gradually and thinly distributed,but could not reflect the extreme values of the whole area,such as northwestern Xinjiang,southern Shaanxi,and central Gansu. The interpolation of the spatial stratified samples gave better estimates in southern Shaanxi,whereas the spatial random samples gave worse estimates. However,only the spatial sandwich samples estimated the extreme values in northwestern Xinjiang and central Gansu.

3.4 Report information

The three kinds of sampling methods could all report the precipitation information of the study area. The spatial random sampling method could only report the mean value and the standard deviation of precipitation of the samples in whole area. The spatial stratified sampling method could report more information,such as the mean value of each knowledge layer. And the spatial sandwich sampling method could not only report the information of the knowledge layers,but also of the report layers. In the analysis of regional annual precipitation with spatial sandwich sampling,we could obtain the information of different report layers,such as watershed layers,raster layers,and administration layers. The mean interpolated values of Xinjiang,Qinghai,Gansu,Ningxia and Shaanxi were 118.07,394.98,291.59,336.46,and 526.72,respectively,compared with observed values of 143.39,368.45,297.49,251.75,and 612.23. The mean value of Ningxia had the largest deviation because only 4 samples from 10 stations in Ningxia were selected in the spatial sandwich sampling.

3.5 Error analysis

We used cross-validation of the annual precipitation interpolation of all 155 stations and the three sampling methods to produce an error analysis and evaluate the accuracy of the samples. The results are shown in Table 2.

Table 2 The predictive accuracy of ordinary Kriging under different sampling methods
All stations0.03230.00271.006276.4685.38.84
Spatial random sampling−2.0870−0.01650.871494.64111.7817.14
Spatialst ratified sampling−0.3505−0.00501.1035105.8198.157.66
Spatial sandwich sampling0.1513−0.00361.039795.91101.845.93

Comparing the errors of the three types of sampling results of annual precipitation,the mean error(ME)of the spatial sandwich sampling was 0.1513,the nearest to 0; the −2.0870 error of the spatial random sampling was the largest,indicating that the arithmetic mean of all the prediction errors of the spatial random samples was the minimum. According to RMSEASE and |RMSE−ASE|,the interpolation result of the spatial sandwich samples was closest to the real level. The mean standardized error(MSE)of the spatial sandwich samples was closest to 0,followed by stratified samples and spatial random samples; this indicated that in the spatial sandwich sampling,the degree of difference between the sample mean and the population mean was the lowest. Standardization of root mean square standardized error(RMSSE)indicated the effectiveness of the standard deviation of the prediction value. If the standard error of prediction is valid,RMSSE should be close to 1. If RMSSE is greater than 1,then the prediction of variability is underestimated,and if RMSSE less than 1,then the predicted variability is overestimated. Here,the RMSSE of the spatial sandwich sampling was 1.0397,which was closest to 1,indicating that its predicted variability was the most valid.

Considering the capacity of all the stations,the optimal error index of all the stations showed the highest prediction accuracy. The interpolation prediction accuracy of the spatial random samples was the optimal,followed by spatial stratified sampling; spatial random sampling had the worst result.

The predicted values of the 155 stations interpolated by the 85 different samples were compared with the observed annual precipitation values at the 155 stations. Figure 4 is scatter diagram of the observed values and predicted values; three abnormal values were discarded. The regression coefficient and the correlation efficient of the spatial random sampling were 0.893 and 0.9437,respectively,indicating that the spatial random samples had the highest prediction accuracy.

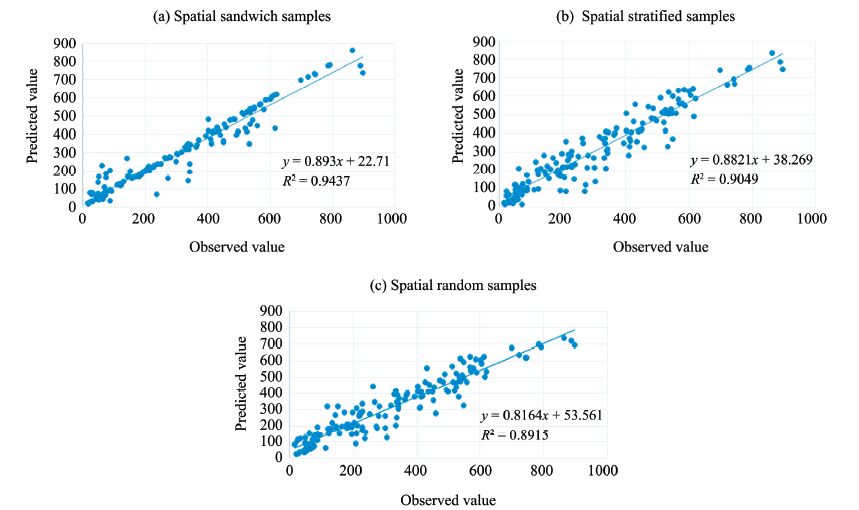

Figure 4 Scatter diagram of observed values and predicted values at 152 stations

According to the interpolation error calculation method of leave-one-out cross-validation,and the scatter diagram of predicted values and observed values,the correlation efficiency of the spatial sandwich samples was 0.9437,which was closer to 1 than were the spatial stratified samples and the spatial random samples. Thus,the spatial sandwich samples had greater representativeness than the two other types.

In order to verify the precipitation interpolation of the sample stations in rainy years and dry years,the sample stations were used to interpolate surface precipitation in a rainy year(2007) and a dry year(2008). The interpolation results and error of cross-validation are shown in Table 3 and Figure 5,respectively. The spatial random samples estimated well in the middle area of moderate precipitation,but performed badly in the southeast in 2007 and in both the southeast and northwest in 2008. Spatial stratified samples performed better in the southeast than did spatial random samples in both rainy years and dry years,but worse in the middle area in 2008. Spatial sandwich samples estimated the high values in both the southeast and northwest in the rainy year(2007) and dry year(2008),but did not perform better than spatial random samples at southern Xinjiang,northern Qinghai,and northeastern Gansu which had the least precipitation. Generally speaking,the spatial sandwich samples performed better than the other two methods in both the north and the south.

Table 3 The predictive accuracy of ordinary Kriging under different sampling programs in 2007 (rainy year) and 2008 (dry year)
All stations (2007)0.06820.0020.9598103.17114.5511.38
Spatial random sampling0.2548−0.00530.9245110125.5915.59
Spatial stratified sampling0.07030.00361.0516118.4112.675.73
Spatial sandwich sampling0.4035−0.00031.0751115.43111.713.72
All stations (2008)−0.8634−0.00630.927484.1797.7713.6
Spatial stratified sampling−0.9075−0.00150.9059108.87122.9514.08
Spatial sandwich sampling−0.15100.00170.909102.63116.6414.01
Figure 5 The ordinary Kriging interpolation of precipitation under different distributions of sample points in 2007 (rainy year) and 2008 (dry year)

However,according to the error of cross-validation,the spatial sandwich samples did not perform much better than spatial random samples in the dry year(2008). Therefore,we think spatial sandwich samples gave a better estimation of annual precipitation and performed well regarding extreme values among the average years,dry years,and rainy years.

4 Conclusion

In the sampling investigation of regional annual precipitation,the spatial random sampling method,the spatial stratified sampling method,and the spatial sandwich sampling method were set at the same sample size,and the sampling efficiency was measured by evaluating the precision of ordinary Kriging interpolation. We found that the spatial sandwich sampling method had the highest sampling efficiency,followed by the spatial stratified sampling method,and the spatial random sampling method did the worst. The spatial sandwich sampling and spatial stratified sampling fully considered the prior knowledge of people in the study area,while the spatial sandwich sampling imported the report layer,making the sampling results adjust to the report layer. Also,spatial sandwich sampling could report the information in the report layer according to the user's need.

The alpine zone of northwestern China is cold and sparsely populated,making it difficult to collect precipitation data and do other scientific research. Therefore,when we set up the rain gauges in the glacier basin,we cut down the number of gauges and the representativeness was improved by adopting the spatial sandwich sampling method. This suggests that optimization of the existing meteorological stations,for example,by using 85 representative spatial sandwich samples,performed better than other groupings. There are,however,some problems in this study. For example,the acquisition of the knowledge layer was difficult,and it will be necessary to acquire additional information and visit the study site to increase awareness of the study area. The spatial sandwich sampling only showed its superiority in the estimation of regional annual precipitation.
